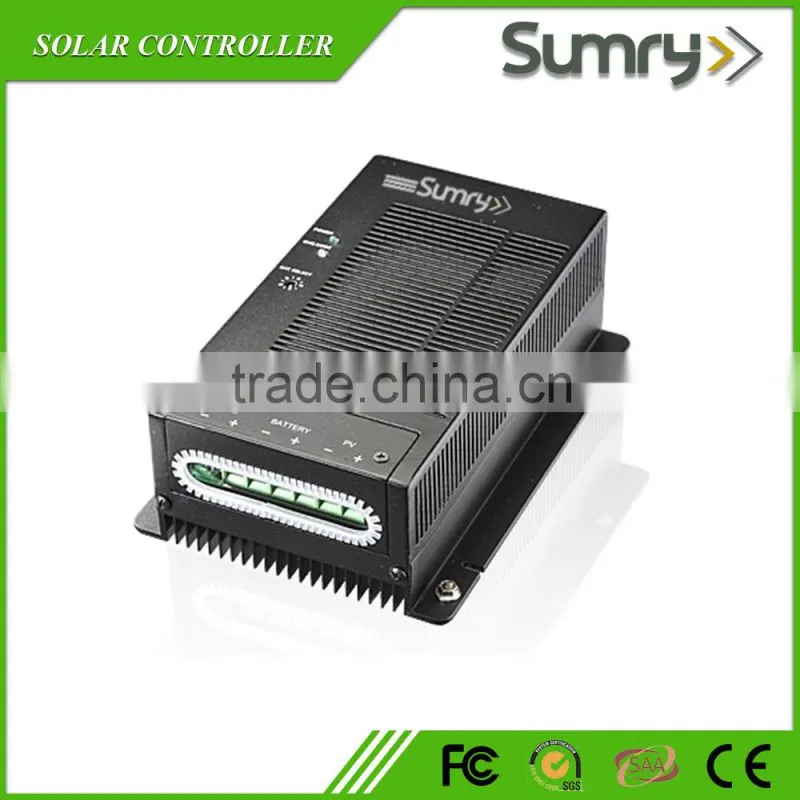

20Amp 30Amp 40Amp 50Amp motor controller mppt charge controller
Product Features:
High converting efficiency higher than 97% for minimizing energy loss
• Build-in MPPT tracker for optimizing the power transformation
• Reversed current protection for preventing equipment damage
• Automatic battery temperature compensation for long-term reliability
• Capable of selecting different charging mode for various type of batteries

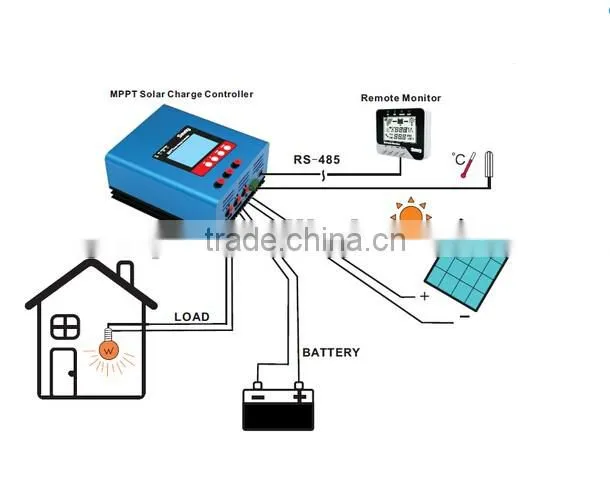

• Capable of connecting additional DC load for wider applications
• Three stage charge control system (bulk, absorption, and float mode) with temperature
compensation
• LED indicators display charge status in real time
• Pulse Width Modulation (PWM) topology combined with a multi-stage charge
control algorithm leads to superior charging and enhanced battery
performance
20Amp 30Amp 40Amp 50Amp motor controller mppt charge controller
Rated Voltage |
12/24 VDC |
|
Rated charge current |
20A or 30A or 40A or 50A |
|
Load current |
15A |
|
Input voltage range |
15-55VDC |
|
Max. PV open circuit array voltage |
55VDC |
|
Typical idle consumption |
At idle < 10mA |
|
Overload protection (DC load) |
2.0*Inom>5s 1.5*Inom >20s 1.25*Inom temperature controlled |
|
Bulk charge |
14.6V(default) |
29.2V(default) |
Floating charge |
13.4V(default) |
26.8V(default) |
Equalization charge |
14.0V(default) |
28.0V(default) |
Over charge disconnection |
14.8V |
29.6V |
Over charge recovery |
13.6V |
27.2V |
Over discharge disconnection |
10.8 V (default) |
21.6V(default) |
Over discharge reconnection |
12.3V |
24.6V |
Temperature compensation |
-13.2mV/℃ |
-26.4mV/℃ |
Lead acid battery settings |
Adjustable |
|
NiCad battery settings |
Adjustable |
|
Load control mode |
2. Low Voltage Disconnect (LVD): Automatic disconnection 3. Reconnection: Includes warning flash before disconnect and reconnection |
|
Low voltage reconnect |
12.0-14.0 Vdc |
24.0-28.0 Vdc |
Low voltage disconnect |
10.5-12.5 Vdc |
21.0-25.0 Vdc |
Ambient temperature |
0-40℃(full load) 40-60℃(de-rating) |
|
Altitude |
Operating 5000 m, Non-Operating 16000 m |
|
Protection class |
IP21 |
|
Battery temperature sensor |
BTS - optional remote battery temperature sensor for increased charging precision |
|
Terminal size (fine/single wire) |
#8 AWG |
|
20Amp 30Amp 40Amp 50Amp motor controller mppt charge controller
