Semi-automatic Hank to Cone Winding Machine From China

Semi-automatic Hank to Cone Winding Machine From China thumbnail-1
Semi-automatic Hank to Cone Winding Machine From China thumbnail-2
Semi-automatic Hank to Cone Winding Machine From China thumbnail-3
Semi-automatic Hank to Cone Winding Machine From China photo-1
Semi-automatic Hank to Cone Winding Machine From China photo-2
Semi-automatic Hank to Cone Winding Machine From China photo-3
US$ 480 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Semi-Automatic
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Xinghua Tangshi Textile Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade Semi-Automatic
Place of Origin Jiangsu, China
Brand Name TANGSHI
Model Number TS008P
Voltage 380v/220v
Power(W) 90w 50HZ
Dimension(L*W*H) L 13700 x W 1050 x H 1650 mm
Weight 2400kg
Certification ISO9001:2008 / CE
Warranty 12 Month
After-sales Service Provided Engineers available to service machinery overseas

Semi-automatic hank to cone winding machine from chinaSemi-automatic hank to cone winding machine from chinaSemi-automatic hank to cone winding machine from china

Product Description

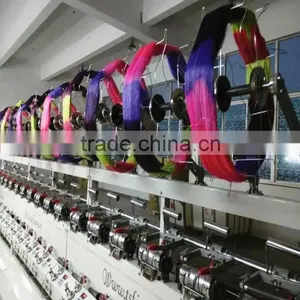

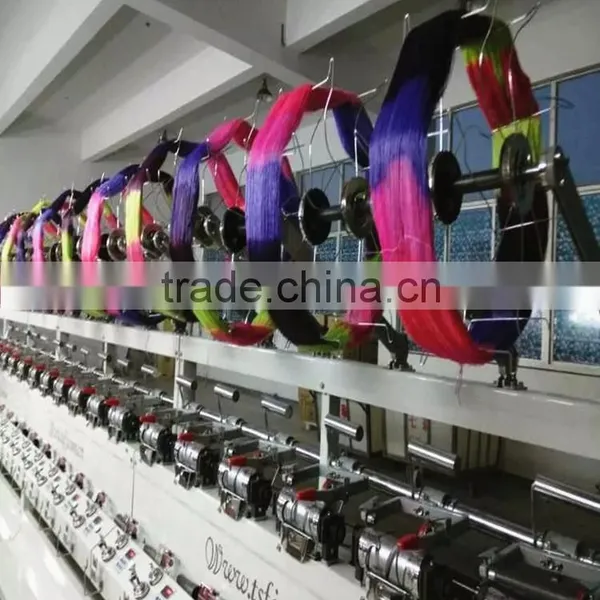

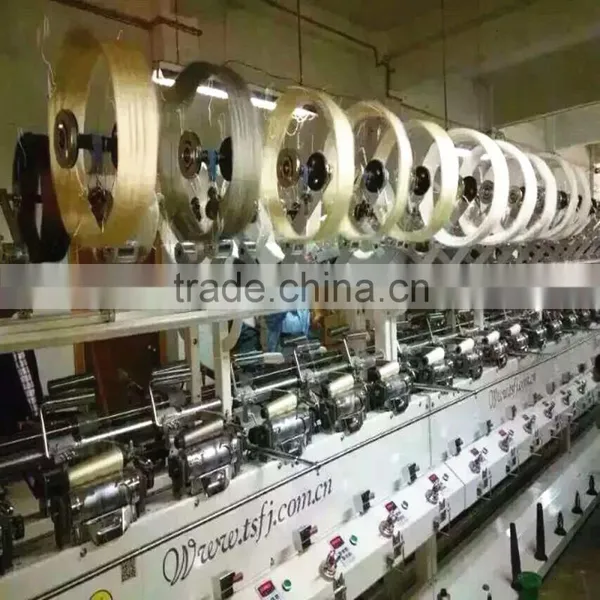

TS008P Hank to cone winding machine is for winding yarns from Hank to Cone, they are applied to the processes such as warping, knitting and yarn combining etc..

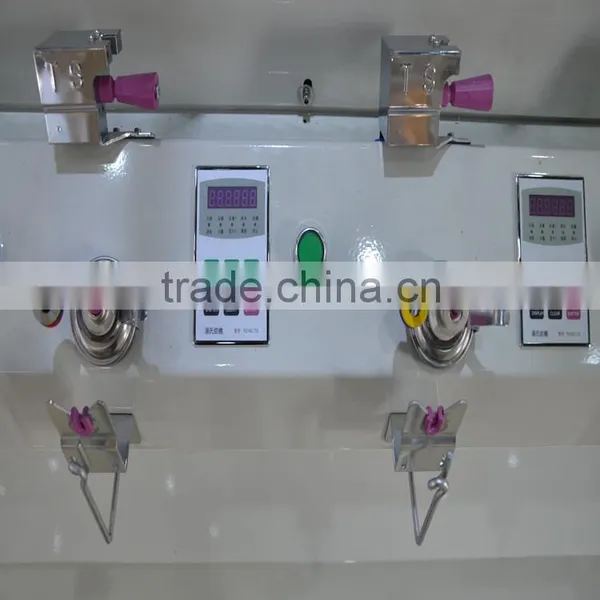

Feature:

1. Drive: every spindle per motor

2. Winding speed: 300-500 M/min

3. Has function of auto stop when yarn break.

4. Package Dia≤ 250mm; Take-up Traverse: 150mm;

5. Each spindle with length counter;

6. Advanced control panel;



Technical parameters:

Bobbin type:

6"(170mm)

Layout

Double-side, can be 12-96 spindles

Power Supply

Three phases 380V 50/60HZ

Driving

Every spindle per motor

Power Comsumption

0.09KW/spindle

Take-up package

Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15

Yarn tension and waxing device

Every spindle has a yarn tension and waxing device

Auto Stop Device

Each spindle install auto stop device

Electronic Anti-Stack

Inverter control

Cleaner device

Every spindle has a Mechanical Knife yarn cleaner

Electronic Yarn Cleaner

Optional installed

Air Splicer

Optional installed

Lighting System

Optional installed

Dimensions

L 13700 x W 1050 x H 1650 mm
