Coil Winding Machine

Coil Winding Machine thumbnail-1
Coil Winding Machine thumbnail-2
Coil Winding Machine thumbnail-3
Coil Winding Machine thumbnail-4
Coil Winding Machine thumbnail-5
Coil Winding Machine photo-1
Coil Winding Machine photo-2

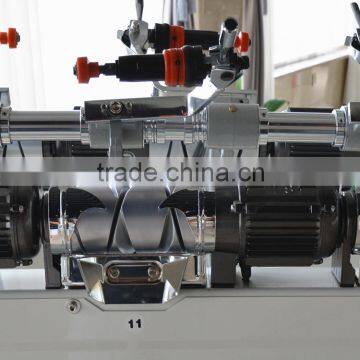

Coil Winding Machine photo-3

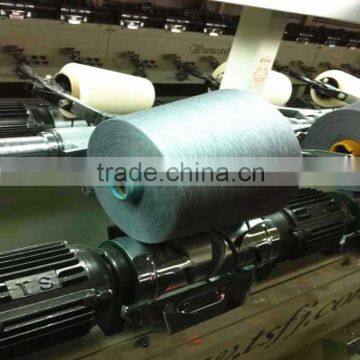

Coil Winding Machine photo-4

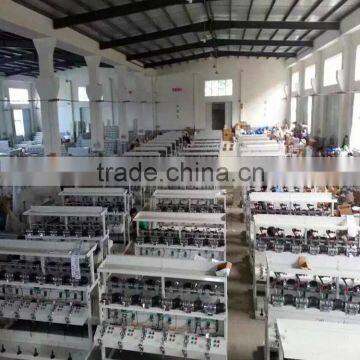

Coil Winding Machine photo-5
US$ 350 - 21,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Winding Yarns
Automatic Grade:
Semi-Automatic
Contact Supplier Request Quote Chat Now
Xinghua Tangshi Textile Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Winding Yarns
Automatic Grade Semi-Automatic
Production Capacity HIGH SPEED
Memory Capacity 999999m
Place of Origin Jiangsu, China
Brand Name TANGSHI
Model Number TS008M
Voltage 380v/220v
Power(W) 90w 50HZ
Dimension(L*W*H) 13700*1150*1600mm
Weight 2400kg
Certification ISO9001:2008 / CE
Warranty 12 Month
After-sales Service Provided Engineers available to service machinery overseas

coil winding machinecoil winding machinecoil winding machine

Product Description



Application: coil winding machine
TS008M High Speed Tight(Hard) winding machine, it’s mainly for the yarn After Dyeing rewinding or yarn rewinding using cone to cone directly, suit for winding like Fiber yarns, Cotton yarns, FDY, Polyester yarns and etc, and it can take up with Conical Cone or Tube bobbins. It has the feature of High Efficiency and well take-up finished shape, can alleviate the intensity of labour for next processing work.

Equipments:
Inverter(MITSUBISHI Brand), Drum(Superplastic Alloy), Motor(Ningbo), Controller(HangZhou)

Parameters:

1. Drive: every spindle per motor

2. Winding speed: 300-1000 M/min

3. Has function of auto stop when yarn break.

4. Package Dia≤ 250mm; Take-up Traverse: 150mm;

5. Each spindle with length counter;

6. Advanced control panel;

Technical parameters:

Bobbin type:

6"(170mm)

Layout

Double-side, can be 12-96 spindles

Power Supply

Three phases 380V 50/60HZ

Driving

Every spindle per motor

Power Comsumption

0.09KW/spindle

Take-up package

Tube Bobbin (0°) / Cone 4°20, 5°57, 9°15

Yarn tension and waxing device

Every spindle has a yarn tension and waxing device

Auto Stop Device

Each spindle install auto stop device

Electronic Anti-Stack

Inverter control

Cleaner device

Every spindle has a Mechanical Knife yarn cleaner

Electronic Yarn Cleaner

Optional installed

Air Splicer

Optional installed

Blower cleaner

Optional installed

Lighting System

Optional installed

Dimensions

L 13700 x W 1150 x H 1600 mm
