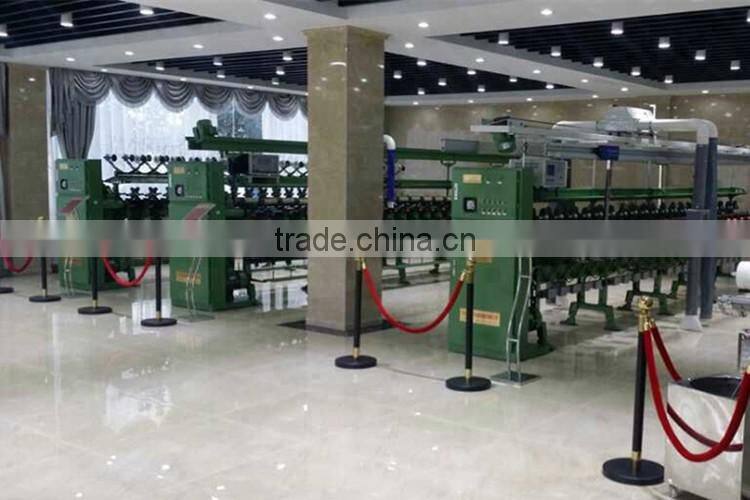

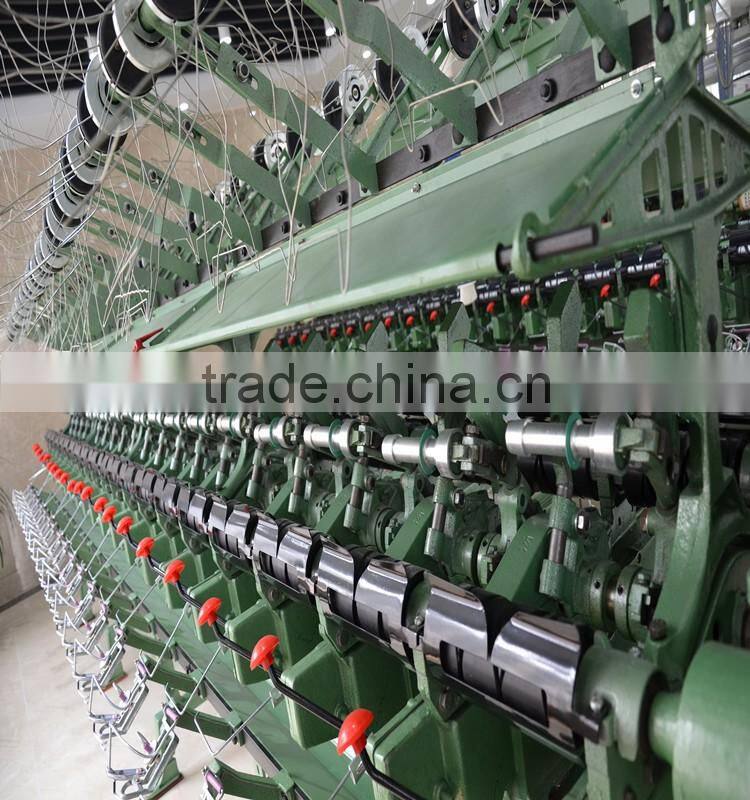

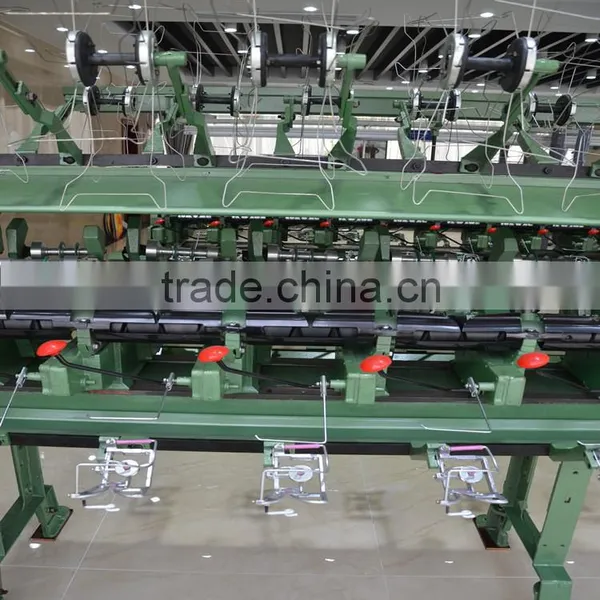

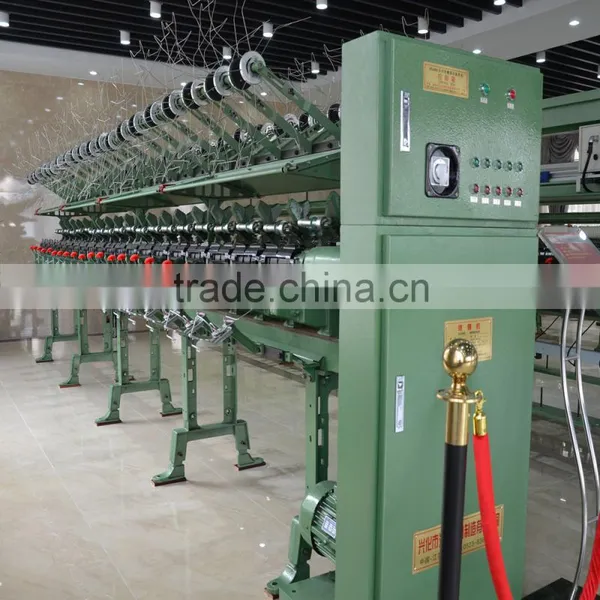

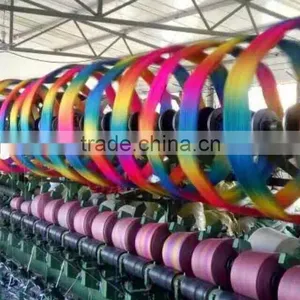

GA014PD Hank to Cone Winding Machine
Application:

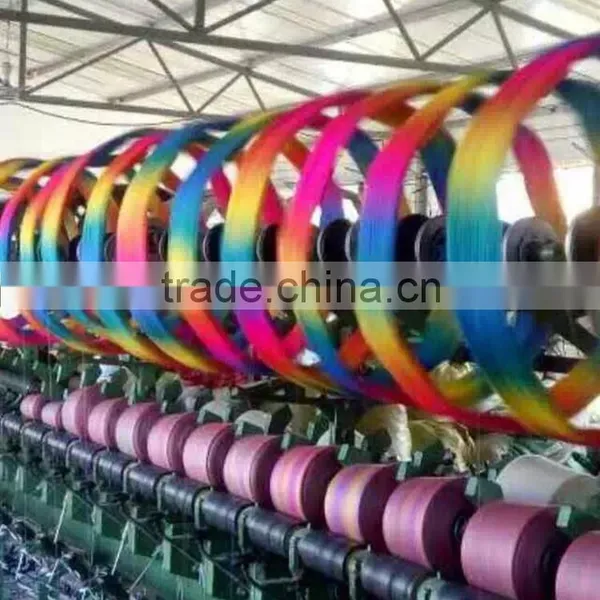

This machine is for winding hank yarns into Cone-type cheese yarns, they are applied to the processes such as warping, knitting and yarn combining etc..
Main technical data:
*Type: Double sides(Groove Drum)
*Number of spindles: 60, 80, 100 ,120 (100 as the standard spindle number)
*Spindle Gauge: 254mm
*Guide Traverse: 152mm
*Winding speed: 140, 160 meters/minute
*Bobbin: conical angle is 6°, Φ25/Φ62×177mm
*Forming size: Φ200 (big Dia) ×152mm (length)

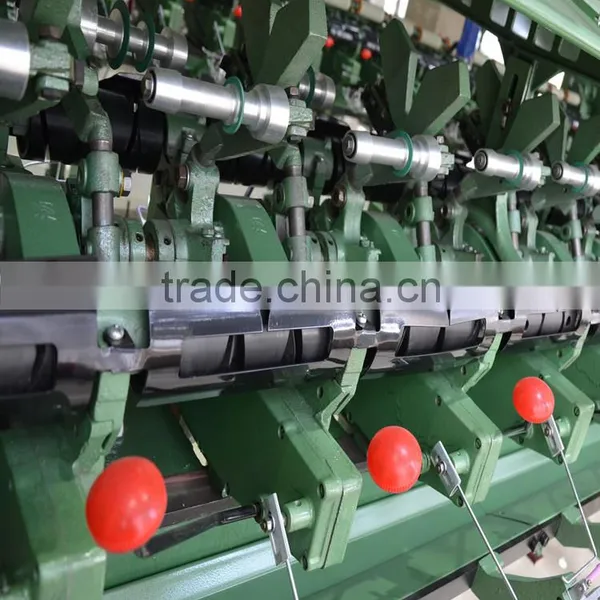

*Grooved drum: Bakelite drum with a diameter of Φ82.5mm and 2.5 circles of anti-ribboning
*Yarn-break auto-stop device: Each spindle has an independent set of auto-stop device.
*Tension device: snail yarn, devil catcher and yarn guide device form a whole set (Tensional pulley has three different weights, like 18.2g, 7.4g and 3.5g).
*Machine size: L13600 x W1400 x H1960mm (it’s 100 spindles size ).
*Motor Specification: Main Motor, JF0-31-61. 1.1Kw, 380V, 960 RPM, 2 sets.
Auxiliary Motor, FW-11A-6, 0.18Kw, 380V, 960 RPM, 1 set.
