1. Specifications of Concrete pipe :Length, Diameter, Grade and PC bar
2. Type of concrete Pipe :Pre-stressed or Reinforced .
3. Daily Productivity.
Specification:
Concrete pipe making machine machine specifications |

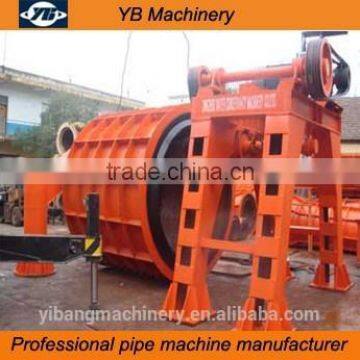

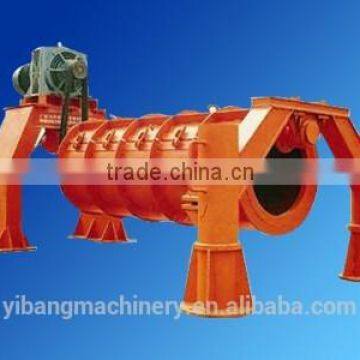

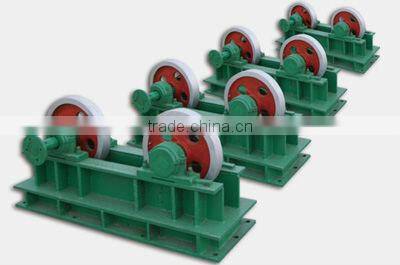

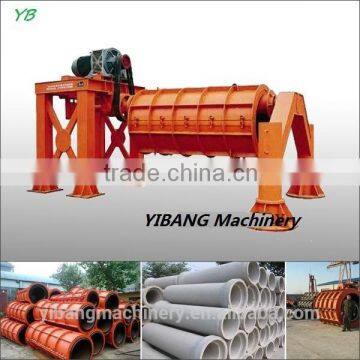

YB600-15kw (About 50-70pieces/day, Diameter(200-600) Length:2000mm Diameter(200-450) Length:2500mm Electromagnetic Adjustable Speed Motor: 15kw CHNT Adjustable Speed Power Distribution Cabinet Diameter of Hanging-Roller Axis: Φ120 )
|
YB800-22kw (About 50-70pieces/workingday, Diameter (450mm-800mm) Length:2000mm Diameter (450mm-700mm) Length:2500mm Electromagnetic Adjustable Speed Motor: 22kw CHNT Adjustable Speed Power Distribution Cabinet Diameter of Hanging-Roller Axis: Φ240 ) |
YB1200-55kw (About50-70pieces/workingday, Diameter 750mm-1400mm length:2000mm Diameter 750mm-1200mm length:2500mm Electromagnetic Adjustable Speed Motor: 55kw CHNT Adjustable Speed Power Distribution Cabinet Diameter of Hanging-Roller Axis: Φ380 )
|
YB1500-75kw (About50-70pieces/workingday, Diameter:1300mm-1800mm * Length 2000mm Diameter:1300mm-1600mm * Length 2500mm Electromagnetic Adjustable Speed Motor: 75kw CHNT Adjustable Speed Power Distribution Cabinet Diameter of Hanging-Roller Axis: Φ500 ) |
YB2000-90kw (About50-70pieces/workingday, Diameter 1500mm-2000mm * Length 2000mm Diameter 1500mm-1800mm * Length 2500mm Electromagnetic Adjustable Speed Motor: 90kw CHNT Adjustable Speed Power Distribution Cabinet Diameter of Hanging-Roller Axis: Φ500 ) |

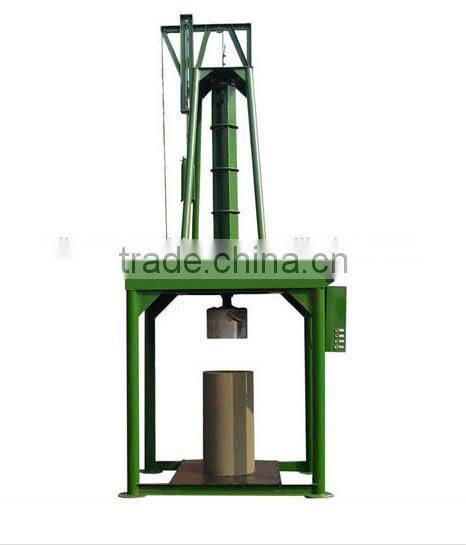

Vertical concrete pipe making machine Centrifugal electric concrete making machine
- High production efficiency 1.Save steel, reduct the cost
- Less pipe mould 2. Rigidity increases 1~3 times
- Full use of matrial 3.Good durability
- Low noise 4.Reduce the deforestation
- Small size , simple operation

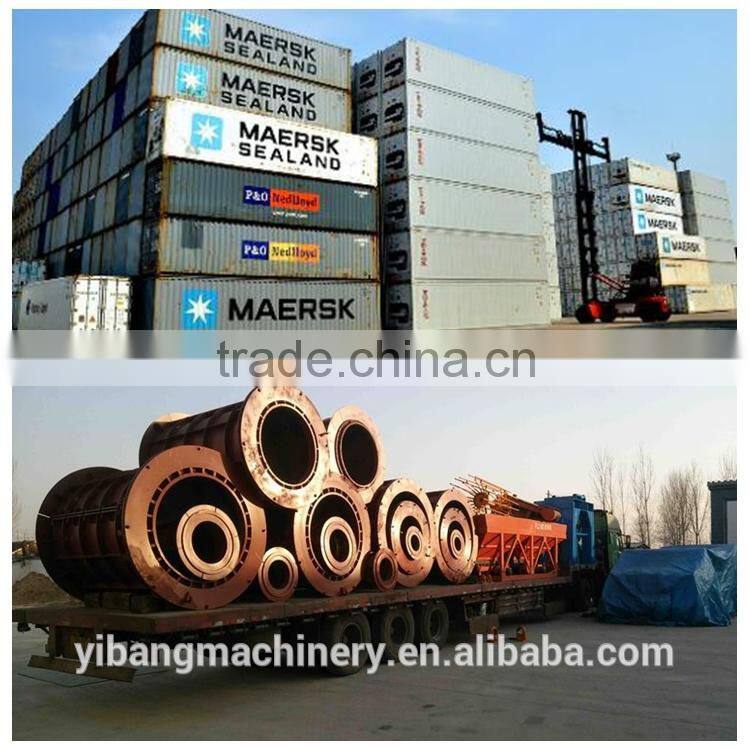

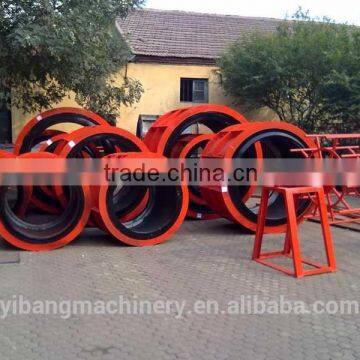

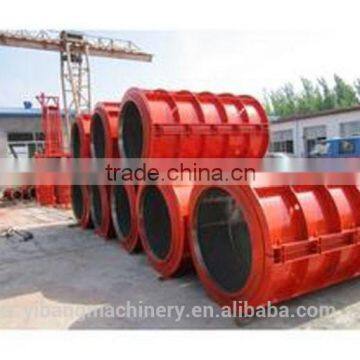

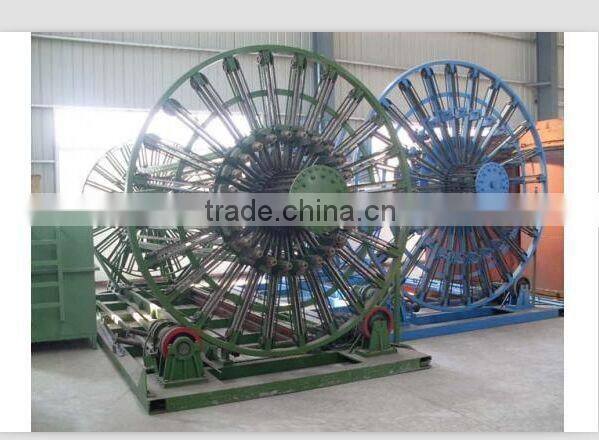

Steel cage- concrete pipe making machine Concrete pipe moulds
- 1. Easy to operate. 1.Different moulds for your different choices
- 2. Frequency converter 2.High quality, low price
- 3. Weld different diameter cages 3.Reliable design
1. 2-3 technicians will be dispatched to Buyer’s plant for installation & commissioning.
Working period: in 25 days.
2.The expense:
1) Buyer should be in charge of the interpretation and safety.
2) The expense (round trip tickets, accommodation, additional allowance to the technicians, etc. ) will be paid by Buyer/Seller should be determined according to the sale price.
