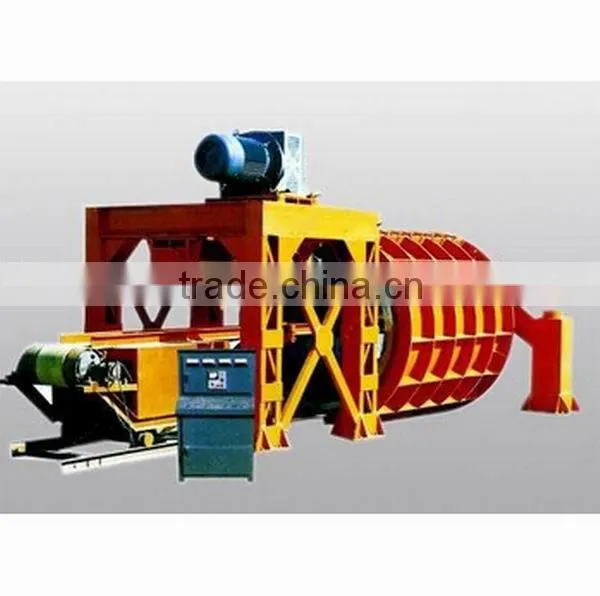

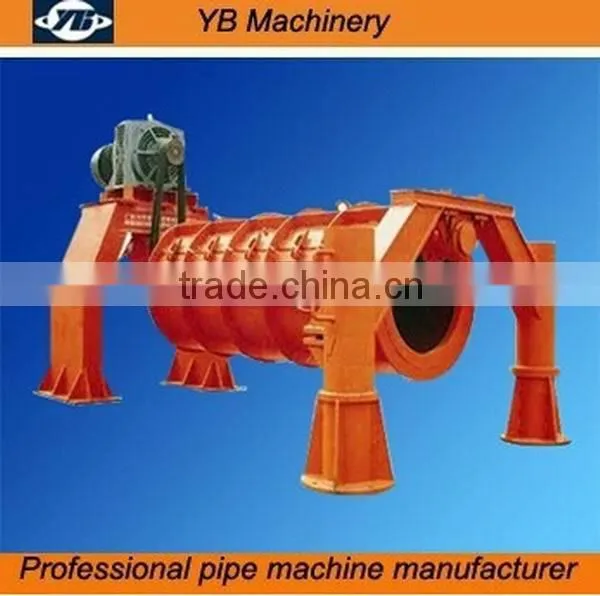

precast concrete pipes sewage drainage pipe machine
With sand and gravel and cement cement as raw materials, use roller, steel roller pressure and centrifugal
force produced by the rotation of compacted molding. Roller suspension type cement tube machine is simple and practical, the most widely used cement pipe machine, easy operation, convenient maintenance, less
wearing parts etc, is mainly used for drainage, sewage, highway culverts, and shaft tube production. It can
produce 1000-4000 - mm long, inner diameter 200- 2000mm, the average efficiency is 6-8 units / hour.
Its features: simple operation, stable operation, low fault rate and smooth tube inside and outside.
Latest National Standards:
Concrete and reinforced concrete 11836-2009
GB/T JC/T concrete and reinforced concrete drainage pipe steel formwork 613-2005
697-1998 JC/T of reinforced concrete tube suspension roll forming machine
Product Features:
The machine adopts two fulcrum of new structure, with the features of compact structure, good stability,
convenient operation, and high rate of finished products, pipe mould under the drive of the roll shaft, in
accordance with the requirements at different stages with different rotating speed, continuous feeding of
concrete, in the axial force and the centrifugal force is under the same effect of compacting molding. The cement pipe size: internal diameter 200mm- 2500mm, 1m-5m flat, enterprises and export, rigid, socket,
flexible spigot and socket, with null different specifications of reinforced concrete pipe.
It is widely used in the deep wells, municipal drainage, highway and other water supply and drainage
engineering, etc. the production efficiency is 4-5 section / hour.
Main Specifications:
1) Diameter: 200-3000mm Length:1000mm--5000mm
2) Highest quality with lowest price
3) Joint: Flat, socket & rabbet
4) Designing as needed
5) Pipe structure good
6) Suggestion of purchase combination
7) Precise physical dimension
YB600-15kw
(About 50-70pieces/day,
Diameter(200-600) Length:2000mm
Diameter(200-450) Length:2500mm
Electromagnetic Adjustable Speed Motor: 15kw
CHNT Adjustable Speed Power Distribution Cabinet
Diameter of Hanging-Roller Axis: Φ120 )
YB800-22kw
(About 50-70pieces/workingday,
Diameter (450mm-800mm) Length:2000mm
Diameter (450mm-700mm) Length:2500mm
Electromagnetic Adjustable Speed Motor: 22kw
CHNT Adjustable Speed Power Distribution Cabinet
Diameter of Hanging-Roller Axis: Φ240 )
YB1200-55kw
(About50-70pieces/workingday,
Diameter 750mm-1400mm length:2000mm
Diameter 750mm-1200mm length:2500mm
Electromagnetic Adjustable Speed Motor: 55kw
CHNT Adjustable Speed Power Distribution Cabinet
Diameter of Hanging-Roller Axis: Φ380 )
YB1500-75kw
(About50-70pieces/workingday,
Diameter:1300mm-1800mm * Length 2000mm
Diameter:1300mm-1600mm * Length 2500mm
Electromagnetic Adjustable Speed Motor: 75kw
CHNT Adjustable Speed Power Distribution Cabinet
Diameter of Hanging-Roller Axis: Φ500 )
YB2000-90kw
(About50-70pieces/workingday,
Diameter 1500mm-2000mm * Length 2000mm
Diameter 1500mm-1800mm * Length 2500mm
Electromagnetic Adjustable Speed Motor: 90kw
CHNT Adjustable Speed Power Distribution Cabinet
Diameter of Hanging-Roller Axis: Φ500 )
Packing Detail: Standard seaworthy packing or other packing according to customer’s requirements
Delivery Detail: 10-20 days after receiving payment
Pre-sale Service:
Analyze the customer’s need and market prospect. We offer free design, free technology support and free machine maintenance training.
In-sale Service:
Provide service of installation; provide training for operator and maintenance staff.
After-sale Service:
Long-life technical support
Supply parts service
Warranty: one year
Qingzhou Yibang machinery Co., Ltd. is located in Qingzhou City, Shandong Province, a developing city with long history. It is the professional manufacture of electric power tools and car care products in China. It is a high-tech enterprise which has a complete set of specialized designing, manufacturing, installation, sales and after-sale service. The company strictly executes quality standard or according to customers’ need to produce.
After many years of operation, our company has garnered widespread customer satisfaction and achieved great success through its reputation for excellence, top-notch quality, and impeccable service.
Electric power tools, Car care products and stone machinery is our main product. Yibang has developed into a famous enterprise with excellent management, standard operation.
Our corporate culture is "Unity, striving, sharing, respect and innovation." It is unity and innovation that are the strength of YIBANG.
Our Concept: "To achieve better quality and service”
Our Brief is ''Innovation creates power."
Please give us a chance, we'll offer you a satisfaction.
Welcome all customers both at home and abroad to establish business relationship with us.
- How about machine installation & commissioning, training?
2-3 technicians will be dispatched to Buyer’s plant for installation & commissioning. Working period: in 25 days.
The expense:
1) Buyer should be in charge of the interpretation and safety.
2) The expense (round trip tickets, accommodation, additional allowance to the technicians, etc. ) will be paid by Buyer/Seller should be determined according to the price.
