w SiC Rod/silicon Carbide Heating Element

w SiC Rod/silicon Carbide Heating Element photo-1
US$ 3 - 300 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
KJ-SiC
Model Number:
KJ-SiCrod
Payment & Shipping
Payment Methods:
Port of Shipment:
Chian Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name KJ-SiC
Model Number KJ-SiCrod

Specifications

w SiC rod
1. high quality
2. competitive price
3. sincere and perfect service

w SiC rod

Descriptions

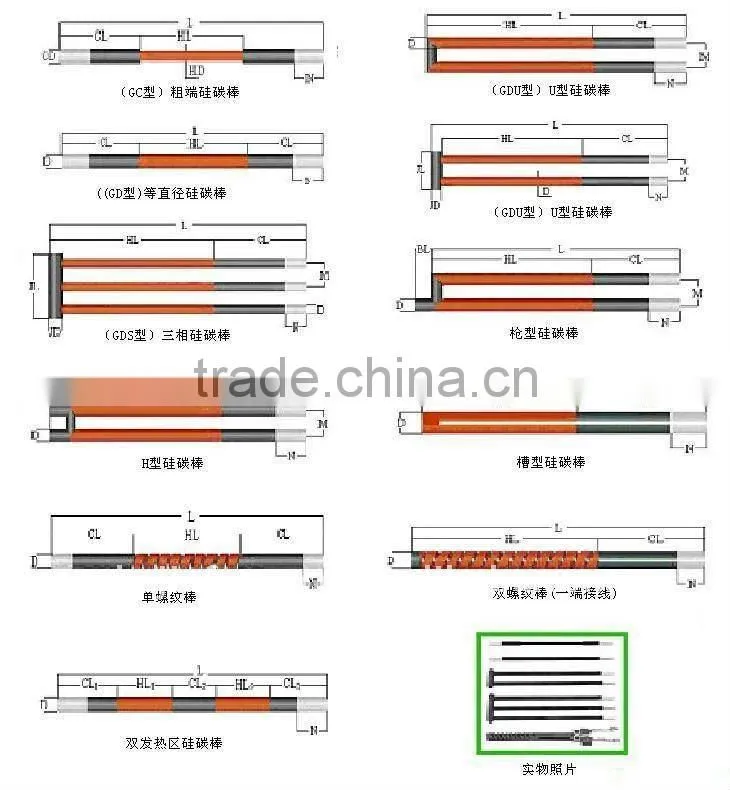

A: Shank Spacing.

Order Sample
1) U Shape, OD-20mm, HZ-300mm, CZ-350mm, OL-650mm, A-60mm, Resistance-2.24Ω
Specify As: KJ-SiC-U, 20/300/350/60/2.24Ω
2) W Shape, OD-16mm, HZ-200mm, CZ-250mm, OL-450mm, A-40mm, Resistance-2.24Ω
Specify As: KJ-SiC-W, 16/200/320/40/2.24Ω

w SiC rod

DescriptionsSilicon carbide heating rod

Diameter
(OD, mm)
Hot zone
(HZ, mm)
Cold zone
(CZ, mm)
Overall length
(OL, mm)
Range of resistance
(ohms)
14 200 250 40 2.4-4.6
14 250 300 50 3.0-6.0
14 300 350 60 3.6-7.0
16 200 250 40 1.4-2.8
16 250 300 50 1.8-3.6
16 300 350 60 2.0-5.0
18 300 350 60 2.0-5.0
18 400 400 70 2.8-5.8
18 500 450 75 3.6-7.2
20 230 300 50 1.8-3.6
20 300 350 60 2.0-5.0
20 400 400 70 2.8-5.8
25 400 400 70 1.6-3.4
25 500 450 75 2.2-4.4
25 600 500 80 2.6-5.2
30 600 400 70 1.4-2.8
30 700 450 75 1.6-3.2
30 800 500 80 1.8-3.6

Welcome to pay close attation to our other furnace: Tube furnaces, (Vacuum) Crucible furnaces, Vacuum Box furnace, Double(Multi) zones Tube furnaces, Multi-position Rotary Tube furnace, Bottom Loading furnace, MoSi2 heating elements, SiC heating elements, etc.

 w SiC rod/silicon carbide heating elementw SiC rod/silicon carbide heating element
