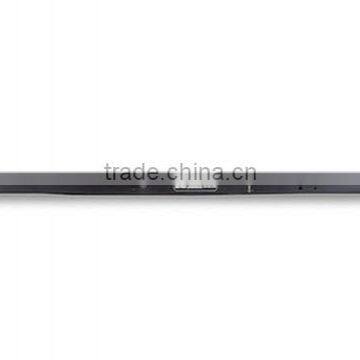

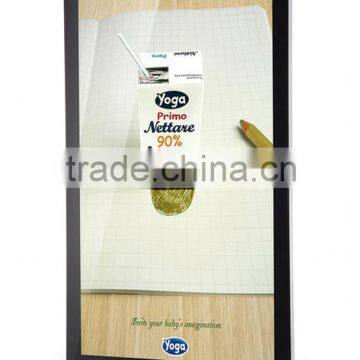

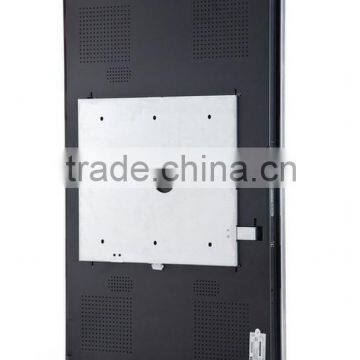

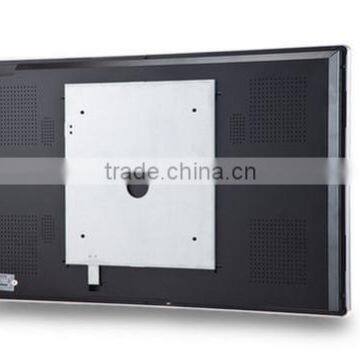

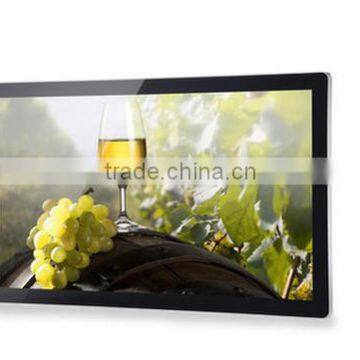

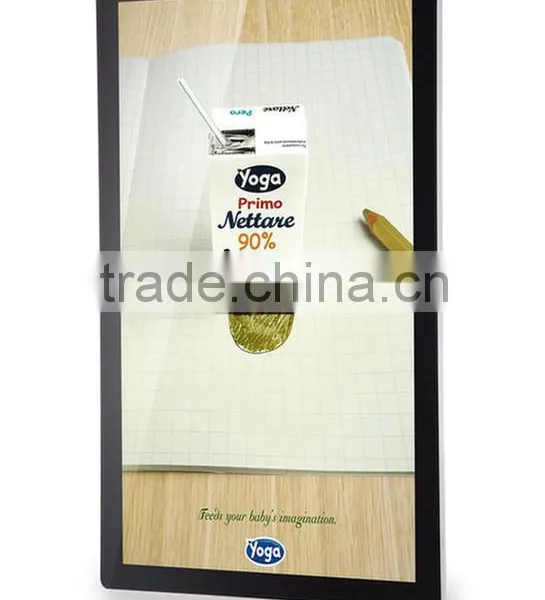

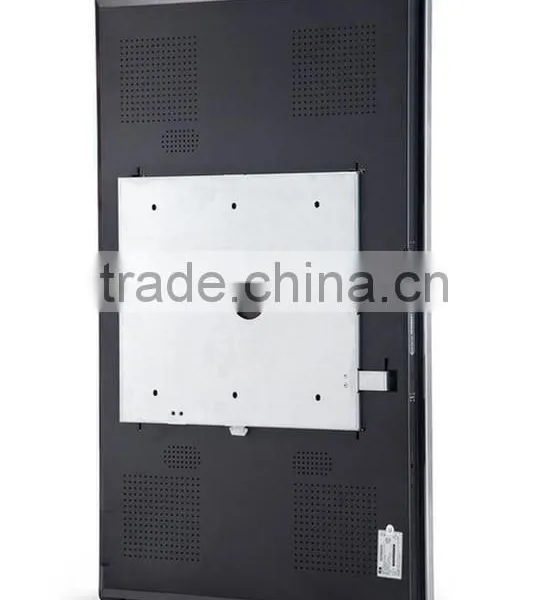

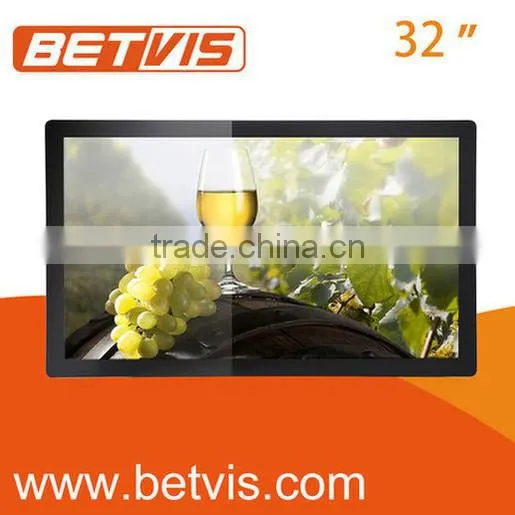

32inches Powerful digital panel quad cctv monitor

1.Shining desktop bracket, firm & reliable

2.High light aluminium alloy frame
3.Manged by DSM80 Software

DSM80 is one of the most stable Digital Signage Software that widely used in Asia, it allows everyone to quick and easily build and manage a centrally controlled network of LCD displays, working with the embedded signage media player and, DSM80 solution can work under 24*365 condition and it never get crash.

Screens/Displays controlled by DSM80 player connect to and are controlled from a central location through any IP-based network (include LAN, WAN, wired or wireless, 3G/4G, or even a mix of any of these.). It supports image, video, audio, scrolling message and live news and displays them through high quality digital signal. DSM80 has been tested by amounts of clients, and achieved that more than 9,000 players are online and managed together.

User-Defined Layout

• User can design different layouts according to different content;
• Take the layout template or design layout;
• It supports backround image and music;
• Time zone can display current time and date;
• Weather zone display weather type, time, text and logo in 24 hours/48 hours/72 hours;
• Image zone can be set as static image or select various kinds of image switch effect, including scrolling, cut-in, gird effect, etc;
• Message zone can be set as static or scrolling text, supports news and RSS;
• Display logo on the specific location on screen, and logo can overlay other image;
• There are mutltiple ways to display scrolling message;
• Set one zone as main playback zone, and the program will end at the end of this zone;
• According to program, it can set layout size, including landscape and portrait mode.

Playback Content

• Playback content includes video, image, audio, message, sustitle, time, date, weather, news, etc;
• Video formats include WMV, MPG2/4, RMVB, DAT, VOB, XVID, DIVX, AVI, TS, H.263/H.264, MOV, FLV, etc in 1080P decode;
• Image formats include almost all of image formats, such as BMP, JPG, GIF, PNG, etc;
• Message can set font, size, color, and background color or transparant background;
• Time and date in Chinese, English and other formats, it sync with server and is accurated by minute;

Content Management

• Content can be managed and classified by category;
• Category type is similar to Windows explorer;
• Create/delete/rename a category on server;
• Upload content to a category according to different classifications;
• Upload different content from local hard disk or network folder;
• Support continuous upload from breakpoint;
• Set download time of player content to avoid busy hour and keep system stability;

Program and Compaign

• Contain Idel-Loop campaign, On-Demand campaign and Inter-Cut campaign;
• Play or pause a program if you want and the pause program will not be deleted from player;
• The priority of campaign: Inter-Cut campaign>On-Demand campaign>Idle-Loop campaign;
• The Idle-Loop campaign can be repeated every several days, for example the reperated days are a week, and it will display different programs everyday;
• Inter-Cut time, end time, playback counts of Inter-Cut campaign are optional;
• On-Demand campaign is triggered by hardware or software command, and displays one or several programs as the set count;

Group Management

• User management players by group according to the details, for example location, network, commercial, player model, etc;
• According to setting player group and campaigning programs, it can satisfy various complcated requirements of clients;
• Grouping is in tree-directory structur, allows multilevel group, easy to manage and understand;
• Without specific command, all of settings and content of players are same in the same group, such as playback content, hardware configurations, download time, etc;
• User can send specific configuration to one or several player in the same group according to the details.

Security

• Strict audit system to manage playback content and avoid mistake;
• According to manage content in details, such as preview uploaded content and audit them, approve/refuse current campaign, user can manage player;
• Manage the access level of users by defining the users’roles;
• Admin can set up users, and select roles to different user;
• User login server through IP address via web browser, input user name and passwor and then manage the system;
• Default user name and password are availble.

Player Configuration

• Get rid of manual work and increase player life cycle through setting power on/off time; Select network connection way and set network configuration, set DHCP/Static IP address, WiFi authentication/encryption method, 3G account, etc;
• Set video output and resolution, such as CVBS, VGA, HDMI, YpbPr, 1080P, 720P, 480P, etc;
• Adjust volume at different time;
• Upgrade firmware through requirements.

Playback Monitoring

• Playback monitoring function make user learn the current and history situation of player without going to installation place;
• When there is something wrong with the player or network of player, it will inform the related administrator to let them know well about system;
• Remote check player network status, including on/offline status and recent hearbeat time, etc;
• Check the history hearbeat time of some player;
• Check system log, such as power on time, download start/end time, etc;
• Get player online rate directly;
• Auto alarm when player has been offline for a long time, or improper power on/off, etc;
• Check palyback status by taking screenshot.

Statistics

• Statistics function make users get the plaback information and offer reliable data to study system;
• Check the playback list during certain time and in some group, including playback counts,playback start/off time, etc;
• System will get the playback counts and time of some file automatically;
• Check statistics by player name and file name;
• Get player availability ratio, means that how much percent normal working time of a player of a group player take in gross time during certain time.

Live News

• Player realizes to display real-time message through the interface connection with server;
• Switch real-time content from server;
• Convert real-time message to form, image and other stypes to increase message arrival rate, more advanced than traditional mode.
