2 Liter Tri-Shaft Planetary Vacuum Mixer with Vacuum Pump and PLC Touch Panel Control - MSK-SFM-10M
Introduction of vacuum mixer

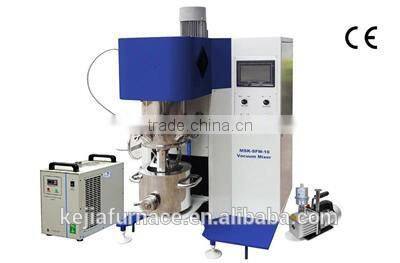

MSK-SFM-10M is a CE certified Tri Shaft Planetary Vacuum Mixer with a 2 liter container and PLC Touch Panel Control. Such a vacuum mixer
incorporates the unique tri-shaft stirring design to ensure a gas-bubble free blending of complex materials under vacuum with extreme uniformity. Furthermore, an observation
window on the mixing tank provides a better way to monitor the entire mixing process. SFM-10M is an excellent tool for preparing LiCoO3, LiFePO4, Phosphorus and ceramic slurries and provides much better
results in dispersion and uniformity.
Specification of vacuum mixer:
Working Voltage |
|
Max. Power Consumption |
2kW |
Inner Vacuum Chamber Size |
Dia.180mm x 150mm |
Mixing Tank Diameter |
45mm |
Effective Volume |
2L |
Main Shaft Speed |
0~70rpm |
Stirring Speed & Power |
0 ~ 112rpm, 750W |
Dispersing Speed & Power |
0 ~ 3800rpm, 750W |
Mixing blades & Vacuum |
|
|
Watering Cooling
|
One Digital Tempeature Controlled Recirculating Water Chiller |

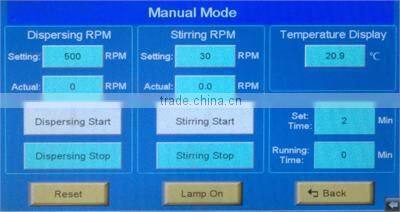

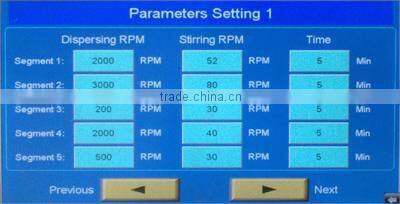

PLC Control Panel |
Digital touchscreen for efficient adjustments
|
Net Weight |
350 kg |
Dimensions |
915×906×1239 mm |
Compliance |
CE Certified |
Warranty |
|

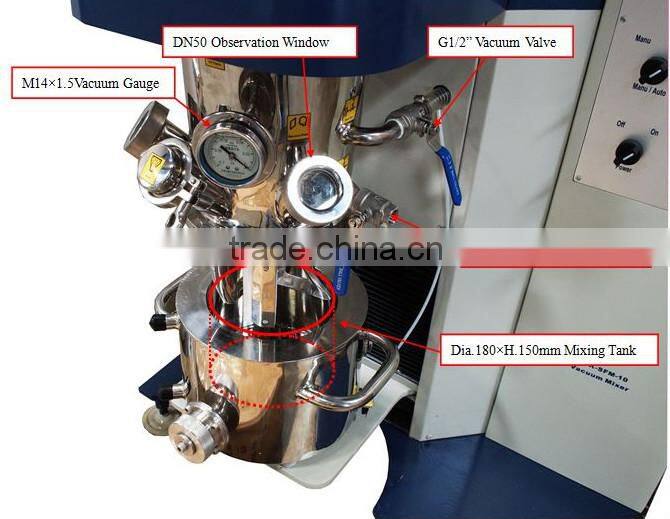

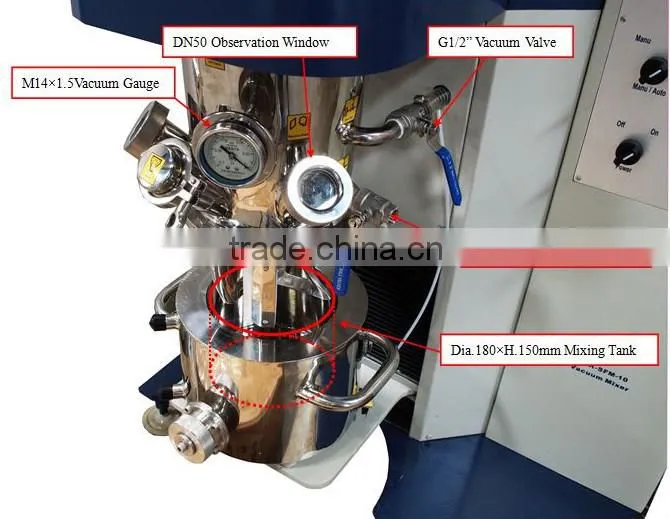

More photos of vacuum mixer
Products:
1) Muffle furnaces / Box furnaces / Chamber furnaces / Lab furnaces /Tube furnace /Dental furnace
2) Vacuum tube furnaces / Multi zones tube furnaces
3) Atmosphere furnaces / Vacuum Furnaces /Electric Furnace/Melting Furnace
4) Silicon Carbide Heating Elements
5) Molybdenum Disilicide Heating Elements
6) CVD System Other Furnaces related products
Application:
New energy materials, metal materials, magnetic materials, semiconductor materials,
ceramic materials, electrochemical, film material, CVD, MOCVD, PLCVD, LPCVD, PECVD,
UPECVD, JPECVD, MPECVD graphene siliconnanotubes, nanowires, sapphire (LED ),
optical materials, dental and other fields of research.
Our products have been exported to Middle East, Europe and the United States,etc.
If there is any interest or demand,please feel free to get in touch.
