Specifications
smelting furnaceTouch screen panel
PID automatic control
Heated by MoSi2 heaters

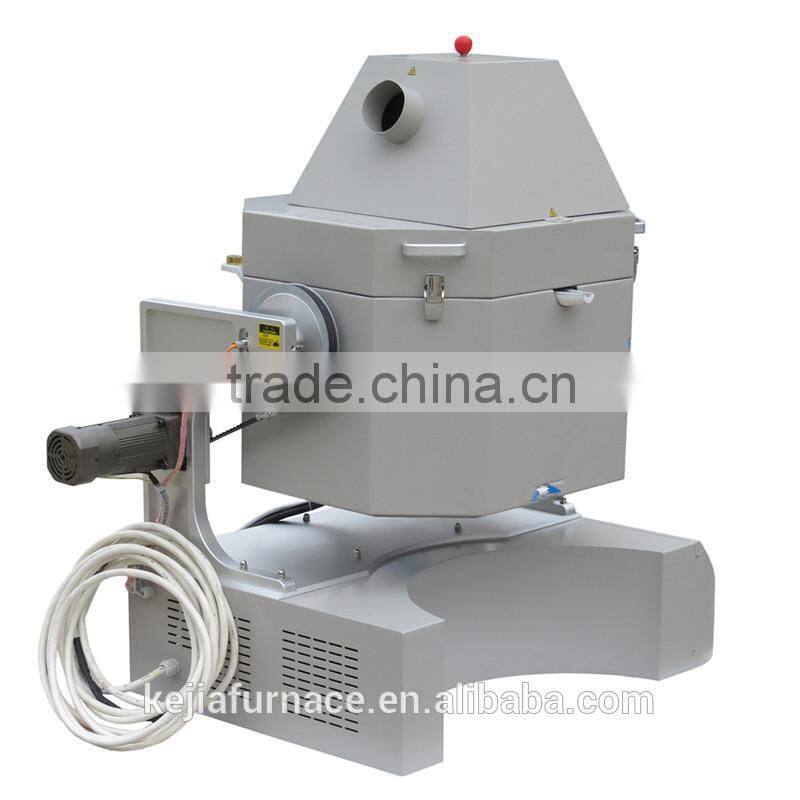

1700C degree smelting furnace is mainly used for smelting of precious
metal,such as gold,platinum,silver,copper,iron,stainless steel,aluminum alloy,aluminum,etc.
It is an ideal equipment for university laboratory,research institute,jewelry processing,casting processing.
Features of smelting furnace:
1.Small volume,light weight,high efficiency,lower consumption;
2.Low temperature around the furnace,less smoke,good working environment;
3.Uniform heating temperature,uniform metal components,good quality casting,fast melting;
4.Easy to control furnace temperature,high production efficiency;
5.Furnace body can be poured out automatically or manually,easily charge,suitable for casting.
Specification of smelting furnace:
Chamber model |
crucible |
Display |
Touch screen(LCD) |
Limiting Temperature |
1700°C |
Usable Range |
≤1600°C |
Heating Rate |
Suggestion 0~20°C/min |
Temperature Zone |
Single |
Accuracy |
±1°C |
Inside Chamber Size |
Φ110×130(mm) |
Heating Element |
MoSi2 |
Thermocouple |
B Type |
Max. Power |
1.8 KW |
Working Voltage |
AC 208V-240V single phase, 50/60 Hz |
Temperature Control |
PID automatic control via SCR power control |
Heating curves |
50 steps programmable |
Chamber material |
Alumina Fiber |
Outside Size |
1250×700×1350(mm) |
Warranty |
One year limited warranty (Consumable parts such as heating elements are not covered by the warranty) |
Service:
1,reply your inquiry at the first seconds
2,answer your question sincerely
3,to satisfy your requirement
4,deliver products timely
5,We will offer the tracking No.for checking the status we ship the goods.
