HD Network LCD Digital Signage Player is consisting of the SC8900 HD decoding board, the tempered glass and LCD Panel with CCFL backlight with top quality, which forms a complete digital signage system with the help of the server software.Builtin industrial decoding board have passed the 72hours continuous working test under the temperature of 80°C. Builtin WiFi module and 3G module are optional depends on the actual requirement for the different projects.HD Network LCD Digital Signage Player is consisting of the SC8900 HD decoding board, the tempered glass and LCD Panel with CCFL backlight with top quality, which forms a complete digital signage system with the help of the server software. Builtin industrial decoding board have passed the 72hours continuous working test under the temperature of 80°C. Builtin WiFi module and 3G module are optional depends on the actual requirement for the different projects.
Customization service is also available:
- Appearance Customization: Change the LCD Digital Signage Player color and log printing;
- Appearance Design & Manufacturing Customization: Provides LCD Digital Signage Player appearance design service;
- Software Customization: Change the server software and player software according to the customer’s requirement.
|
Thousands of LCD player connected to and controlled by central Server.Players can be national wide or even worldwide. |
Many kinds of content type displayed on the screen. |
|

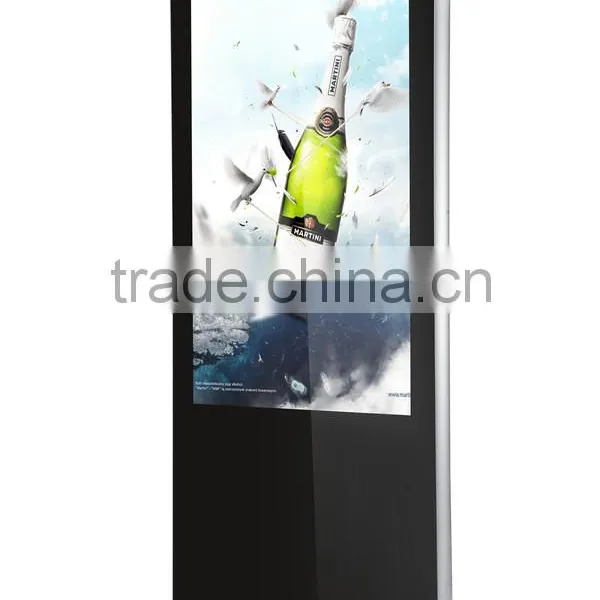

Product show
|
|
| LCD Specification | |||
| Model: | BV-4214I |
BV-4614I |
BV-5514I |
| LCD Size | 42 Inches |
46 Inches |
55 Inches |
| Display Resolution: | 1920*1080 |
||
| Aspect Ratio: | 16:9 |
||
| Brightness: | 450 cd/m2 |
500 cd/m2 |
|
| Contrast: | 4000:1 |
4000:1 |
5000:1 |
| Color: | 8bit, 16.7M |
8 bit, 16.7M |
10bit, 1073M |
| Response Time: | 4ms |
4.5ms |
4.5ms |
| Backlight Life Cycle | ≥50,000 hours |
||
| Viewing Angle | 178°/ 178°/ 178°/ 178° |
||
| Content | |||
| Media type support: | Video/Audio/Picture/Scrolling text/Streaming Video |
||
| Video: | MOV, AVI, MP4, DVD, ASF, WMV, RM, RMVB, MPEG, VOB, Streaming Video |
||
| Audio: | MP3, WMA, MPEG1/2, Dolby Digital AC3 |
||
| Picture: | JPEG, BMP, GIF, PNG, TIFF |
||
| Scolling Message: | Support, Single line horizontally scrolling&shifting, multiple line vertically scrolling&shifting |
||
| Display | |||
| H.D. | Up to 1080P Full H.D decoding |
||
| Portrait Mode: | Support |
||
| Background Picture: | Support |
||
| Multiple Zones Display: | Support multiple zones on screen |
||
| Hardware | |||
| Front Material | Tempering Glass |
||
| Platform: | Non-PC based, RISC or Embedded based platform |
||
| Storage: | Default 8GB Internal Memory (Maximum up to 128GB), SATA HDD(Optional) |
||
| Processor: | ARM based Multimedia processor |
||
| Speaker: | Built in 2 * 8Ω / 3W |
2 * 8Ω / 5W |
|
| Network: | 10/100 Mbps Fast Ethernet |
||
| Wireless(Optional): | Wifi 802.11b/g, 3G (WCDMA, CDMA2000, through external module) |
||
| USB: | USB2.0 x 1, USB1.0 x 1 |
||
| Power Input: | AC 110V-240V 50/60Hz |
||
| Performance | |||
| MTBF: | 10,000 hours |
||
| Life cycle: | 100,000 hours |
||
| Power Consumption: | Approx. 160W |
Approx. 180W |
Approx. 240W |
| Working Temperature | 0°C~55°C |
||
| Working Humidity: | 20%~80% |
||
| Storage Temperature: | -20°C~65°C |
||
| Storage Humidity: | 10%~90% |
||
| Others | |||
| Dimension: | 1850*670*70mm |
1900*738*85mm |
1950*852*90mm |
| Net Weight: | 70.45Kg |
76.20Kg |
95.4Kg |
| Housing: | Metal |
||
| Color | Black(default), Silver Gray, Champagne |
||
| Accessories: | Power Cord, Remote |
||
| Optional Accessories: | 3G Adapter, Wifi Adapter, 5dB Antenna, SATA HDD |
||
Touch Options (if you need) | |||||||
Mode |
Multipoint |
||||||
Transmittance |
>95% |
||||||
Minimum touch object |
5mm |
||||||
Accuracy |
2mm |
||||||
Life |
>60,000,000 |
||||||
DSM80 is one of the most stable Digital Signage Software that widely used in Asia, it allows everyone to quick and easily build and manage a centrally controlled network of LCD displays, working with the embedded signage media player and, DSM80 solution can work under 24*365 condition and it never get crash.
Screens/Displays controlled by DSM80 player connect to and are controlled from a central location through any IP-based network (include LAN, WAN, wired or wireless, 3G/4G, or even a mix of any of these.). It supports image, video, audio, scrolling message and live news and displays them through high quality digital signal. DSM80 has been tested by amounts of clients, and achieved that more than 9,000 players are online and managed together.
3G/wifi stand player
Software Function
lcd ad display floor stand digital signage
