Specifications
Silicon molybdenum rods1. Max. temperature can be 1800c
2. high purity MoSi2 material

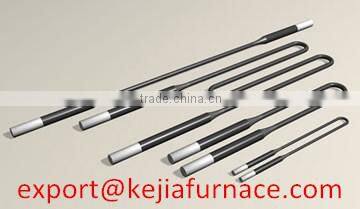

1800c U shape Silicon molybdenum rods / MoSi2 heating elements
Molybdenum disilicide (MoSi2) heating element is a resistance generate-heating component madefrom MoSi2 or the basic material. It has unique effect for resisting oxidization in the hightemperature. It is used to the highest temperature up to 1800 degreesduring oxidizing atmosphere.
* Dia. 3,4,6,7,9,10,12,18,24
* Temp: 1000-1800 celsius degrees
* Used in the industries of metallurgy, magnetic materials, glass, ceramic refractory, crystal electronic device,industrial furnace manufacture, lab furnace,Laboratory furnace,industry furnace,glass furnace,ceramic furnace etc..
MoSi2 heating elements physical and chemical characters:
1. Physical Characters
Volume Density |
Bending Strength |
Vickers Hardness |
Porosity |
Water absorption |
Heating Elongation Rate |
5.5 g/cm3 |
15-25 kg/cm3 |
(HV)570kg/mm2 |
7.4% |
1.2% |
4% |
2. Chemical CharacterMoSi2 heating element is used in the high temperature under oxidizing atmosphere. It will form the
SiO2 film which can keep the element from being melted. During the oxidizing process, the SiO2 protecting film
is formed again when the element continues to be used. The MoSi2 heating element must not be used in the temperature
between 400C and 700C for a long time, otherwise the element will be cremated under the strong oxidizing function in the
low temperature.
mark of the Silicon molybdenum rods
packing the heaters according to the heater size to aviod any damage during the delivery.
Zhengzhou Kejia Furnace Co., Ltd. is located in Zhengzhou city, Henan Province, China, is a leading and professional enterprise that specializes in the manufacture of High temp. Laboratory Furnaces.
Kejia Furnace is always devoted to satisfying customers with guaranteed quality products, which include 1200/1400/1700°C Muffle furnaces, 1200/1400/1600°C Tube furnaces, (Vacuum) Crucible furnaces, Vacuum Box furnace, Double(Multi) zones Tube furnaces, Multi-position Rotary Tube furnace, Bottom Loading Muffle furnace, etc.
Kejia Furnace has developed a reputation for excellent performance, competitive prices and timely delivery, and became a leading manufacturer and exporter of Furnace products.
Products Brief Introduction:
Lab Furnaces: kinds of Muffle and Tube furnaces (Maximum temperature ranges from 1100°C to 1800°C). Non-standard items can be produced according to requirements.
Heating elements: Silicon Carbide (SiC) heaters; Modybdenum Disilicide (MoSi2) heaters.
Alumina Tube and other Furnace parts.
Contact person: Tanya Wang
Email: export(at)
Skype: tanyawang55
Tel: 0086 371 67826992
mobile: 0086 18137195603
please tell us the requried size of the heaters and we will send the quotation soonest!
