Specifications
1. MoSi2 heating element2. Diameter, 3/6 - 12/24mm.
fessional maker
4. good service & early delivery

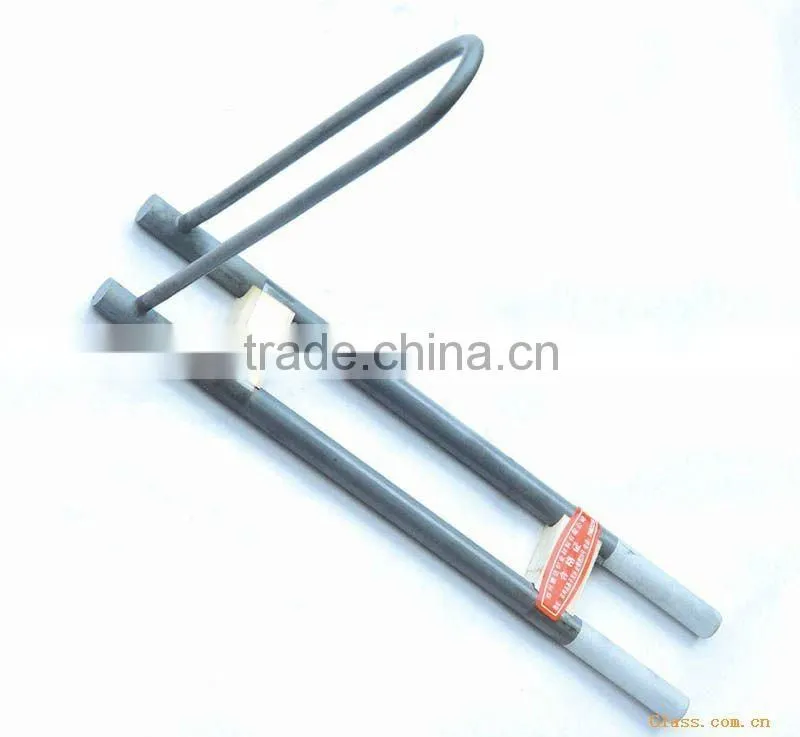

Model: U shape Molybdenum Disilicide Heating element
Features:
1. used in the high temperature under oxidizing atmosphere,
2. It will form the SiO2 film which can keep the element from being melted.
3. It has unique effect for resisting oxidization in the high temperature.
4. "U", "W" and "U-right angle” shapes heating elements are available.

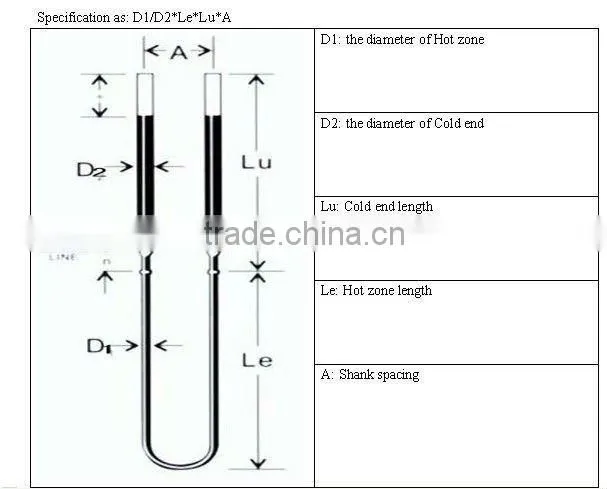

Descriptions
Material Grade: M1700/M1800
d: Hot Zone Diameter
c: Cold Zone Diameter
Le: Hot Zone Length
Lu: Cold Zone Length
a: Shank Spacing
Order Sample
U Shape, Material Grade: M1700,
d-4mm, c-9mm, Le-450mm, Lu-450mm, a-25mm
Specify As: KJ-MoSi2-U, 4/9×450×450×25
Specification
|
1700°C Grade |
1800°C Grade |
||||||||
d/c (mm) |
3/6 |
4/9 |
6/12 |
9/18 |
12/24 |
3/6 |
4/9 |
6/12 |
9/18 |
12/24 |
Le Max,mm |
350 |
450 |
1400 |
1400 |
1700 |
350 |
450 |
1400 |
1400 |
1700 |
Lu Max,mm |
300 |
450 |
1000 |
1000 |
1000 |
300 |
450 |
1000 |
1000 |
1000 |
a (mm) |
25 |
25 |
40/50 |
60 |
80 |
25 |
25 |
40/50 |
60 |
80 |
f (mm) |
25 |
25 |
45 |
75 |
100 |
25 |
25 |
45 |
75 |
100 |
g (mm) |
15 |
15 |
25 |
30 |
40 |
15 |
15 |
25 |
30 |
40 |
Nonstandard shape & size could be made according to your requirement. | ||||||||||
Terms & payment
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: T/T, West union, etc.
Shipping and Delivery: by air/sea, in 10 days after receiving the payment

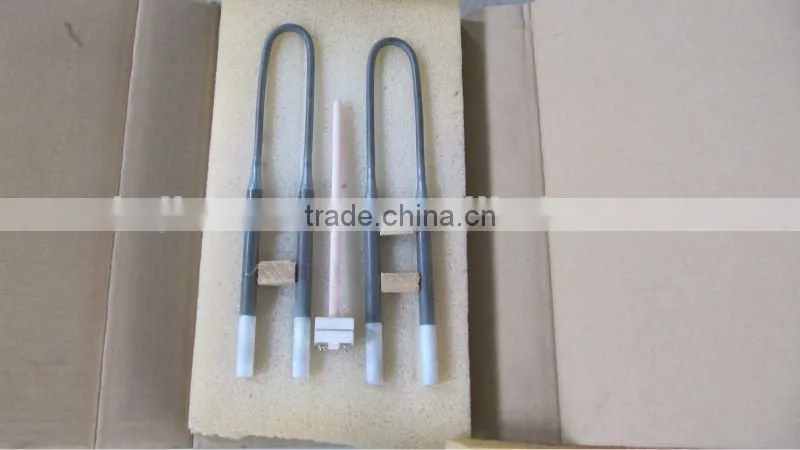

the package of the MoSi2 heating rod

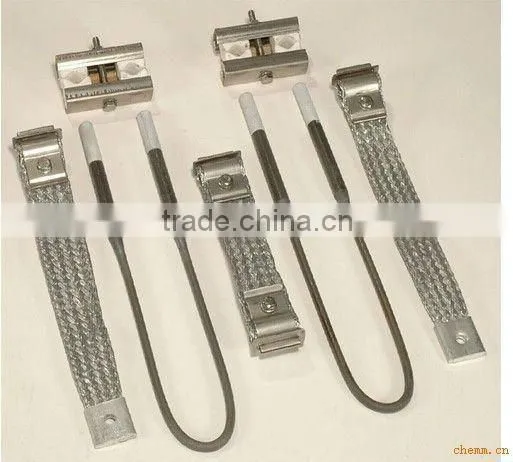

the clamps and the straps
contact information
other shapes

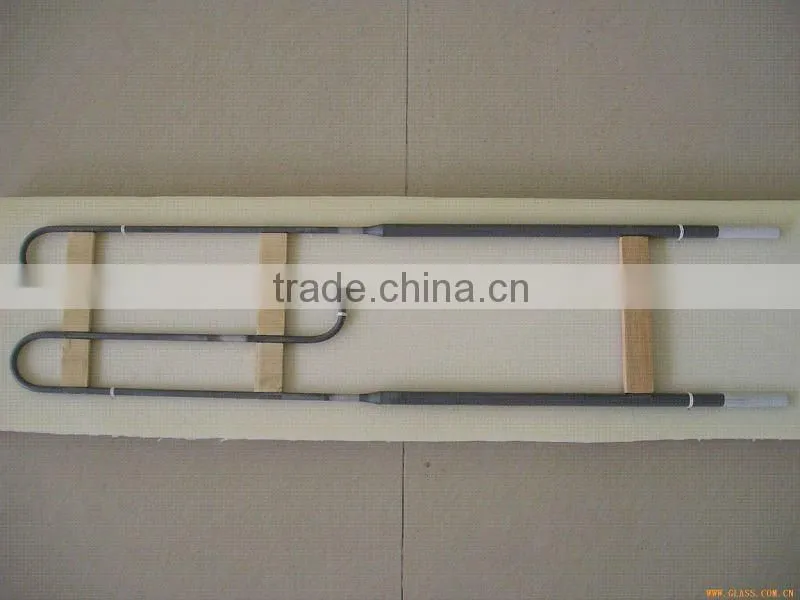

W Shape
