YK-ZX03/03B Bverage Bottle Packing Machine&Wrap Around Case Packer
- shanghai
- T/T
You May Like
-
YK-ZX03 Glass Bottle Side Push Type Wrap Around Case Packer 0086 18939708569
-
YK1650F-CZ Weight Pallet Stretch Wrapping Machine
-
YK1650F-CZ Weight Check System Pallet Stretch Wrapping Machine
-
YK1650F-CZ Weigh Check System Pallet Stretch Wrapping Machine
-
YK1650F-CZ Weigh Check System Pallet Stretch Wrapping Machine
-
Weigher Check Pallet Wrapper Wrapping Machine Dispenser Weigher Check
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Usage | Paper Forming Machine | Place of Origin | Shanghai, China | |
| Brand Name | YuanxuPack | Model Number | YK-ZX03 | |
| Voltage | 380V | Power(W) | 50-60HZ | |
| Dimension(L*W*H) | 2500*1100*1800mm | Weight | 1200kg | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

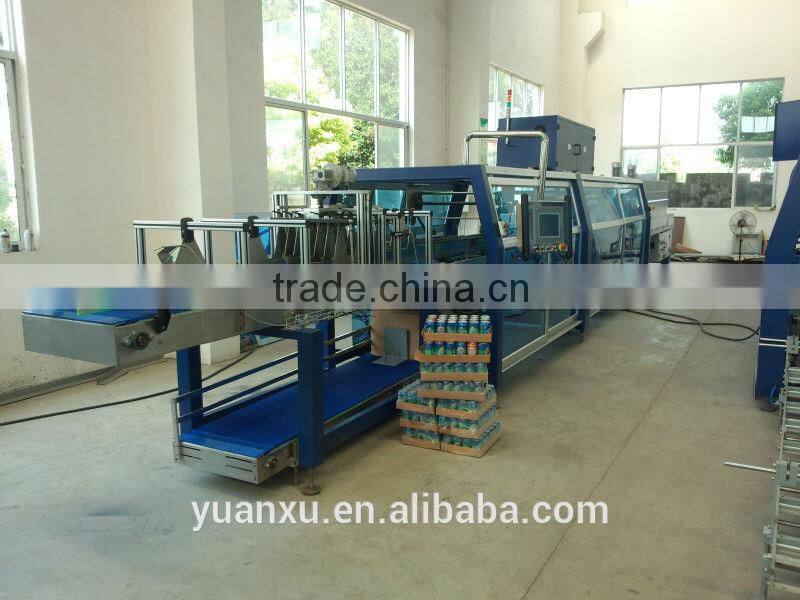

wrap around case packer (YK-ZX03A)
External Bottle Conveying Belt
It ensures the unceasing supply of bottles.It works depending on an inverter controlled electric machine driving a S900 blank network chain to convey bottles.
Entry of Bottles
The components are under optoelectronic control.
Bottle Conveying
This action can be completed on the customers requirements, which is driven by an electric machine, with bottles through this area tested and divided into groups by bottleconveying units.
Bottle Conveying Board
The distance between different boards can be adjusted freely by operators to ensure the free movement of bottles.
Driving Bottles
Push divided bottle groups evenly to the filmwinding areas driven by a synchronous machine.
Filmwinding Combination.
Filmwinding Combination
Hot shrinkage films are wound around bottle groups as required and driven by a synchronous machine.
External Conveyor
Puts wellwound bottle groups into the oven (thermal flux modification tunnel)
Film Tensioner
The unit, adjusted by air pressure, can keep the film in tense state and avoid broken films entering into winding areas.
Filmoutlet Combination
The combination, under the control of a synchronous machine, cuts a proper length of films and winds around the bottle group.
Sensor
Control the entry of bottles.
Optoelectronic Probe
Control bottles to enter the bottle conveying tunnel as required.
Adding Films Manually
When one roll of films is used up, the new films will be fused with the original ones to be continued in service.
Film Roller
Guarantees the unceasing supply of films.
Keeps films in a relaxed state with air pressure to make it easy to be wound.
Oven
Oven Drive Mechanism
Sends packed products into the oven hotair channel
Oven Structure
Electric heating tubes are installed in both sides of the oven.
An electric machine is installed on the top to drive the fan to heat the draught first and then to blow the draught to the packing bottles.
The Oven Exit
Packed products will leave the oven from here and be sent to the exterior of the machine after being cooled. Cooling Fan
Cools products just coming from the oven.
Oven Electric Machine
Products are put into the oven under the drive of an electric machine.
Equipment Performance Parameters.
Production Capacity. 40ppm
Packing Pattern. thermal shrinkage films
Applicable Bottle Types.
Glass bottles, PET bottle, pottop cans, with a diameter between 50mm to 110m
The height of bottles is between 70mm to 360mm
Attention. The plusminus error of the diameter and height of each bottle type should be no more than 2mm, or the bottle will be counted as another type.
Packed Products
Length. 200mm530mm
Width. 110mm350mm
Height. 80mm320mm
Films.
Material. PE
Thickness. 60um100um
The Maximum Diameter of Film Rolls. 500mm
Core Diameter of the Film Roll Tray. 76mm
Tensile Strength. It should meet the GB13022 standard both in longitudinal direction and transverse direction.
Thermal Shrinkage Rate. It should meet the GB/T1351992 Standard in both longitudinal direction and transverse direction.
Shrinkage Ratio. It should meet the GB/T1351992 Standard in both longitudinal direction and transverse direction.
Fracture Strength. It should meet the GB13022 standard both in longitudinal direction and transverse direction.
Thickness Error. It should meet the GB6672 Standard.
Other Equipment Parameters.
Size.
Bottleentry Belt.
Length. 4000mm
Width. 538mm
External Dimension. 11700×1450×2500mm (L×W×H)
Equipment General Power. 69.70 KW
Control Power. 24V DC
Compressed Air
Pressure. 0.40.8MPa
Air Consumption. 100L per Min
Weight of Equipment. 5.6T
Equipment Basic Configuration.
The machine adopts SIEMENS touch screen.
SIEMENS S7 series control system
The master drive, bottle separating and film feeding adopts the imported SIEMENS motor.
SCHNEIDER low pressure control system, SMC pneumatic control system, SICK optoelectronic system, etc.

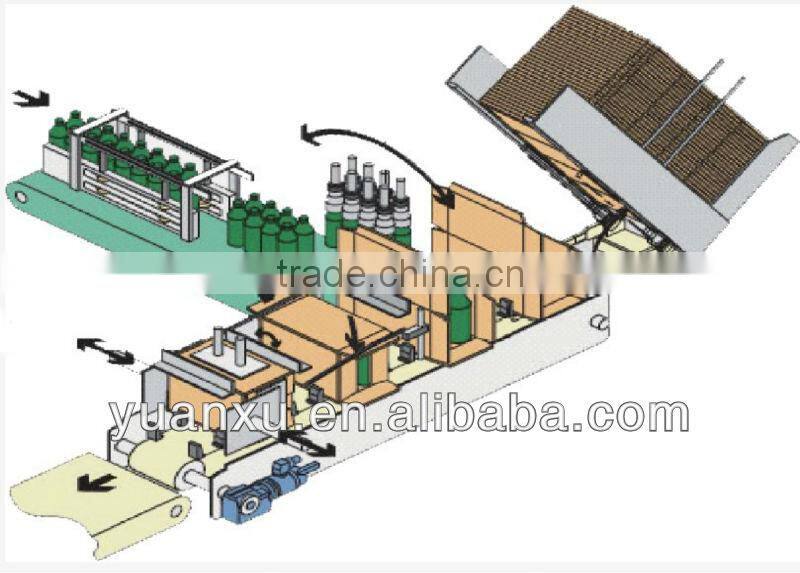

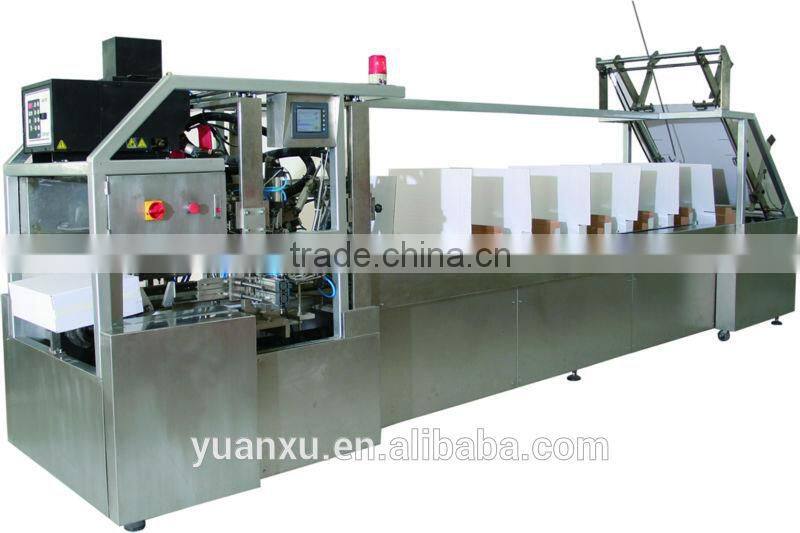

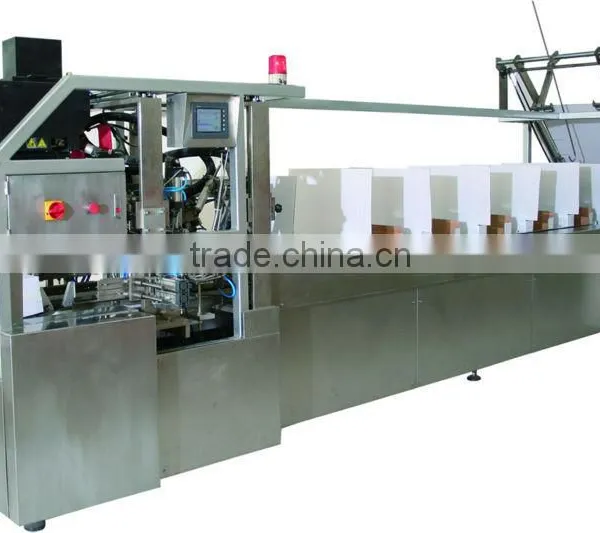

Wrap around case packer (YK-ZX03B)
The speed of case packing up to 40-45 cases/min.YK-ZX03 packs bottles with drop down type to finish.
