Home > Products > Hot Melt Coating and Laminating Machine > Full Automatic Insect Glue Trap Making Machine LCB-350-01
Full Automatic Insect Glue Trap Making Machine LCB-350-01
- 50 Set / Sets per Month
- XIAMEN CHINA
- T/T Credit Card
Product Details
Place of Origin: | Fujian, China | Brand Name: | Hengyi | Model Number: | LCB-350-01 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Insect Glue Trap Making Machine1.Sticky mouse board
2.Sticky insect board making machine
3- factory good price

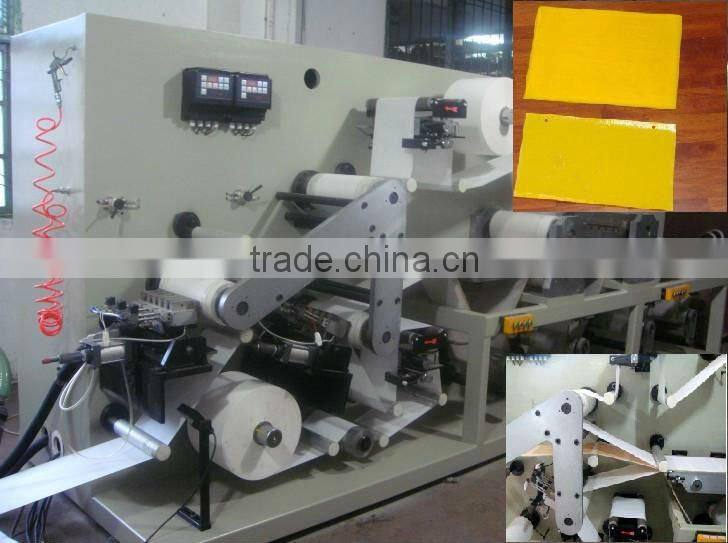

Full Automatic Insect Glue Trap Making Machine LCB-350-01
Working Process:
This equipment mainly produce variety of different specifications of the sticky board, such as Sticky Mouse board, sticky fly boards and so on. With High-precision coating glue gun, coating fast, gluing out stability, position accuracy, high precision, simple operation and so on. The material adopts Reel paper, production processes: automatic release roll → →automatic indentation→ → automatic coating glue→ →automatic folding(automatic compound) → → automatic slitting→ →automatic admission materials.
Product Features:
1. The equipment by the two-way production(that is, two board) at the same time, the normal speed of 2400 sheets/ h,it can be controlled by adjustable speed motor;
2. 1 ~ 2 person operation, paperless automatic shutdown;
3. It can produce two products at the same time,can be compatible with small mice boards Boutique boardssticky fly paper... no matter thick or thin, large or small cardboard manufacturing;
4. It can automaticlly put into the paper ,also can manually put into the paper;
5. It can add spare parts to expand the function of automatic putting into button or extend Conveyor belt to facilitate manual packaging.
6. Photoelectric switch combination control system and automatic tracking system control at the same time to ensure accurate tracking and broken glue
7. Special cylinder mention guns, every piece of paper coated finished, glue gun automatic raising, so that uniform coating, non-tailing;
8.The part of this electrical equipment such as cylinder, motor speed control, solenoid valve components adopt imported products to ensure the quality.
Technological parameter:
| 60PCS/min | Expand Product Size | 262 X 365 (mm); |
Power | 17KW | Product surrounding No scraping gum width | 15mm |
voltage | 380V | Maximum output of glue | 470g/min |
adhesive machine capacity | 100kg | Machine Dimension | 720 X 800(mm) |

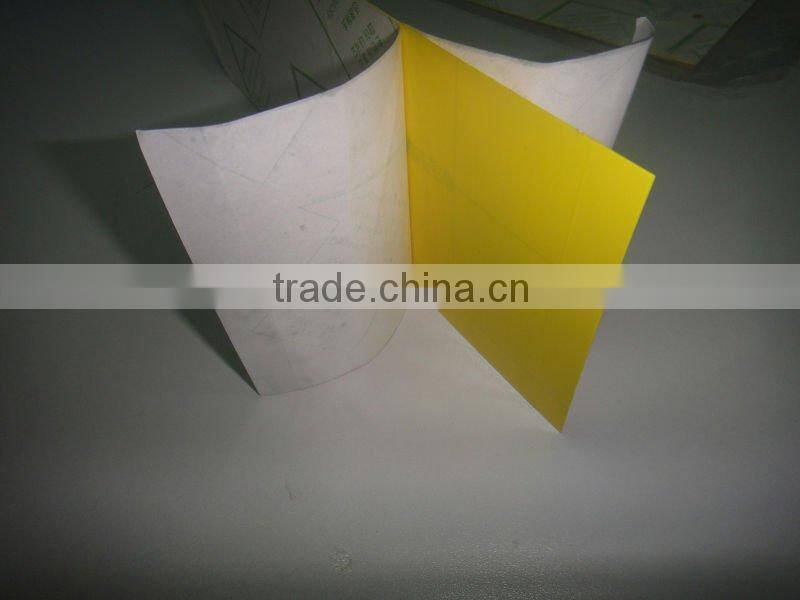

End product
Guarantee and After-sales service:
A.One year guarantee for whole machine expect consumable parts.
B.24 hours technical support by email
C.Calling or door to door service
D.English software and user manual and detailed video.
Payment term and delivery time:
Payment Terms: 30% by T/T as down payment after order confirmed. 70%by T/T when machine is ready for delivery
Delivery time: 30 working days after receiving 30% down payment.
Installation & Training:
The seller can send technician to buyer’s factory for installation and training of operation and maintenance for the equipment on buyer's cost. And the buyer will pay all the compensation salary for the technician $50per day for every one), fees for tickets, board and lodging , travel expenses to buyer’s factory. including from airport and lodging place to installation yard).
About us:
We are high-tech enterprise that specializes in the manufacturing machinery. We make Hot Melt Coating machine, laminating machine, hot melt adhesive machine, such as coating machine, laminating machine, Insect Glue Board Machine, Glue Dots Machine, Velcro Tape Machine. Cosmetics Machine such as Depilatory Wax Strips Machine,Nose Strips Machine, Teeth Whitening Strips Machine. Medical Machine such as Fever Cooling Patch Machine, Medical Patches Machine, First Aid Kit Machine, Wound Dressing Machine, Medical Patch Packing Machine, Mixer etc.
With top requirement in technology and services. Hengyi Machinery pursues excellency and give most professional products and service for all our honored customers in the world.
Any problem, pls feel free to contact us!
Contact Us
- Quanzhou Hengyi Machinery Co., Ltd.
- Contact nameJack Lee
- Phone86-595-22464848
- AddressXianjing Industrial Park Fuqiao St., Quanzhou City Quanzhou,Fujian
