differential wound automatic voltage controller

Specifications

differential wound automatic voltage controller
INPUT 350 -460 VOLTS ,
OUTPUT - 220/ 380/ 400 /415 VOLTS
HEAVY DUTY Aut

differential wound automatic voltage controller



VOLTAGE STABILIZER  increases system efficiency and power quality by automatically monitoring and controlling busbars, transformers and other devices. Some of the common voltage controller devices include stabilizers, regulators, electroplating rectifiers, etc. On a power distribution system experiencing varying loading conditions, this type of sophisticated substation automation application can effectively maintain a steady transformer secondary voltage within preset limits.

The high capacity automatic voltage controllers manufactured in our unit are supervised by a team of qualified and experienced engineers. Our chief goal is to satisfy our customers by manufacturing quality products.

High current on a load affects electrical motors (smaller capacity motors upto 7.5 H.P) and devices in the following ways:

• High current causes premature failure of winding in electrical motors leading to their damage or higher losses.
• The higher losses of electrical motors in turn leads to damage of cables, switches, transformers and other associated equipment.
• In order to ensure smooth and continuous working of electrical motors, overload relays are generally set at 20% higher setting.

With the installation of the stabilizer and maintaining 390/400 volts, the motor will operate smoothly. It will draw 15 to 20% lesser current and correspondingly the relay setting can be reduced by 15 to 20%. When single phasing occurs, the relay will trip in 40 to 50 seconds. The motor can withstand the high current during this period and will be safe. Also, the switchgears, relays, contactors etc. incorporated with the motor will be safe.


Types of Automatic Voltage Controllers

• Balanced Type Automatic Voltage Controller
• Automatic Voltage Controller with Bye-pass arrangement
• Unbalanced Type Automatic Voltage Controller
• Automatic Voltage Controller with Isolation

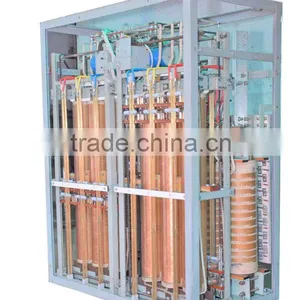

Servo Stabilizer is an automatic voltage regulator, which primarily consists of the following features :

• Linear, plus / minus type vertical rolling contact voltage regulator
  For making these regulators, we use heavy section of electrolytic grade rectangular copper strip instead of copper wire in order to minimize the losses & increase the efficiency of equipment. We also employ self lubricating Carbon Roller Assemblies instead of ordinary Carbon Brushes that offers more reliability and trouble free performance of the equipment.
• Double wound buck / boost type series transformer
  In our Buck / Boost transformer, we make use of CRGO lamination to reduce iron losses. The coils of Buck / Boost transformer are wound with heavy section of multi strips electrolytic copper to minimize copper losses to get better efficiency of the equipment.
• Electronic control circuit and meter panel
  Automatic Voltage Controller usually consists of very simple electronic control voltage circuit for monitoring and controlling voltage, repair and maintenance of which is very easy. The regulator and Buck / Boost transformer are oil cooled, placed in same or separate sheet steel tanks. These devices are provided with radiators for effective cooling. The coils of voltage regulators & Buck / Boost Transformers are vacuum impregnated and oven dried as per IS.









COMPARISON BETWEEN PEC MAKE & CONVENTIONAL MAKE

AUTOMATIC VOLTAGE CONTROLLER

PEC  MAKE ROLLER TYPE REGULATOR                                  CONVENTIONAL MAKE WITH CARBON BRUSH

                                                                                                                           REGULATOR

.  Power consumption is 0.5 to 15% depending upon                                        . Power consumption is 2 to 7% depending

      the model and input voltage variation.                                                                       Upon the model and input voltage variation.

.      Suitable for continuous 100% Duty cycle.                                                          . Suitable for only 30% to 40% duty cycle.

.  The carbons (graphite) Roller roll, while moving on                                 .  Since the contact is by brush having flats surface,

       the coil track, so contact Point of the roller goes on                                        wear & tear of the brush is more and requires

       Changing which prolongs the life of the rollers.                                                 Frequent replacement.

.  Life at full load is 15-20 year.                                                                               .  Maximum life is 2-3 years at full load.

.  Negligible losses in full Buck / Boost Condition.                                             . Max. Losses in full Buck / boost condition.

.  Five years Unconditional warrantee in India                                                       . Normal warrantee for one year.

  Loss Comparison of  PEC   make Regular and Conventional make Regulator



Capacity	Power make Roller type Regulator losses	Conventional make Carbon brush type Regulator losses
60 A	575 W	1050 W
75 A	730 W	2055 W
100 A	900W	3105 W
