AUTOMATIC VOLTAGE CONTROLLER
SERVO VOLTAGE STABILIZER
RANGE: 30 KVA TO 8000 KVA
Inspite of best efforts, no state electricity board can ensure constant voltage to customer because of long and inadequate distribution and irregular load pattern on distribution transformers. Generally Voltage is low during day time and high during night hours. Moreover on holiday, peak hour’s rainy days and when agricultural and industrial load is switched off; the voltage rises sharply which is more dangerous.
This higher current affects the electrical motors (particularly smaller capacity motors up to 7.5 H.P) in three ways.
- Higher current produces higher losses in electrical meters which causes premature failure of winding.
- These higher losses of electric motors also increase the losses of cables, switches, transformers and other associated equipments.
- For smooth continuous operation of motors, over load relays are usually set at 20% higher setting.
With the installation of the stabilizer and maintaining 390/400 volts, the motor will operate smoothly drawing 15 - 20% lesser current and correspondingly the relay setting can be reduced by 15-20% In case single phasing occurs, the relays, contractors, switchgears, etc. incorporated with the motor will be safe.
AUTOMATIC VOLTAGE CONTROLLER
DESCRIPTION OF AUTOMATIC VOLTAGE CONTROLLER:
POWERservo Stabilizer primarily consists of the following:-

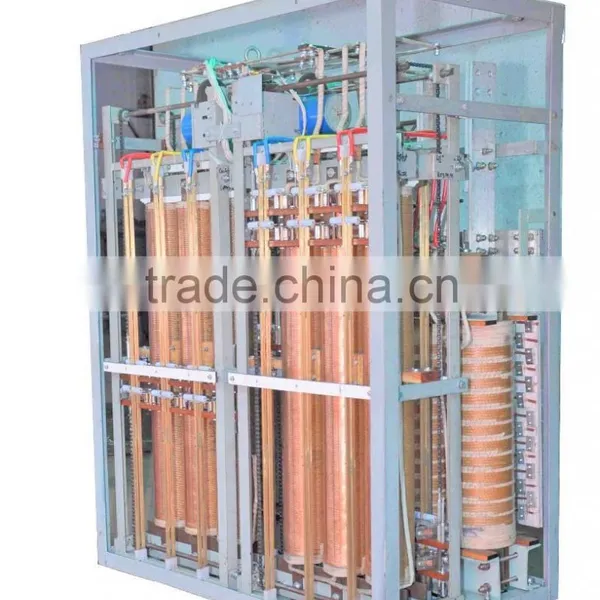

1. Linear plus /Minus Type Vertical Rolling Contact Voltage Regulator
In our regulator we are using heavy section of electrolytic grade rectangular copper strip instead of copper wire to minimize the losses & increase the efficiency of equipment. We are using self lubricating Carbon Roller Assemblies instead of ordinary Carbon Brushes which offers more reliability and trouble free performance of the equipment.
2. Double Wound Buck / Boost Type Series Transformer
In our Buck/ Boost transformer we are using CRGO lamination to minimize iron losses and coils of Buck / Boost transformer are wound with heavy section of multi strips electrolytic copper to minimize copper losses for getting better efficiency of the equipment.
3. Electronic Control Circuit and Meter Panel
POWER Automatic Voltage Controller consists of very simple electronic control circuit for monitoring and controlling voltage, repair & maintenance of which is very easy.

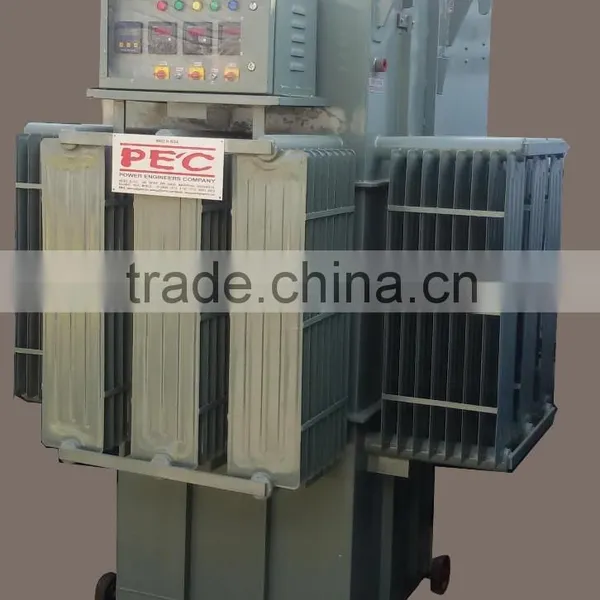

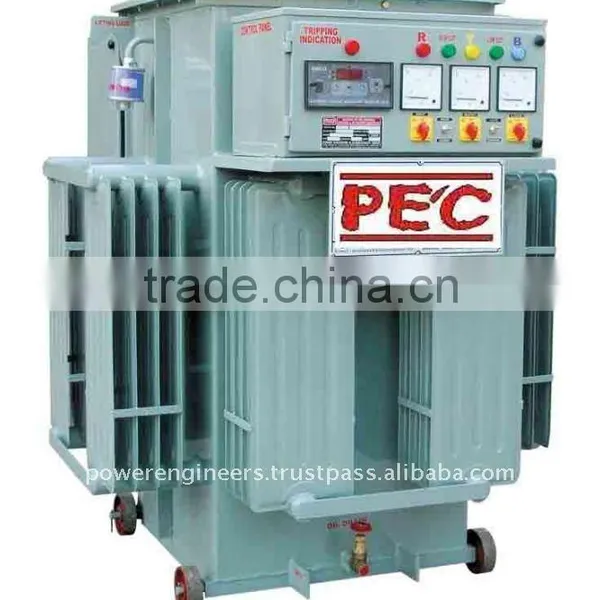

The regulator and Buck / Boost transformer are oil cooled, housed in same or separate sheet steel tanks. Radiators are provided for effective cooling. The coils of voltage regulator & Buck / Boost Transformers are vacuum impregnated and oven dried as per IS.
TECHNICAL SPECIFICATIONS
POWERServoStabilizers are available in a wide range and various models. The standard three phase models are suitable for balanced & unbalanced supply and loads. The standard models conform to the following specification:
|
Input Voltage
Efficiency (as per calculation) |
360-450 V
99.5% |
350-460 V
99.3% |
340-460 V
99.10% |
340-480 V
99% |
320-480 V
98.7% |
300-500 V
98.10% |
|
Output Voltage |
400 V ± 1%, 3 PHASE, 50 Hz |
|||||
Output voltage Adjustment |
± 5% |
|||||
Output voltage Regulation |
± 1% (at no load / full load) |
|||||
Correction Rate |
10 V – 15 V /SECOND (OR AS Per Requirement) |
|||||
Temperature Rise (Max) |
35 C- above ambient |
|||||
Cooling |
Naturally Oil Cooled. |
|||||
Insulation |
Class `A` |
|||||
Type |
Indoor. |
|||||
Mode of system |
Fully Automatic / Semi Automatic / Manual |
|||||
Mounting |
On Uni - directional Wheel |
|||||
Wave form distortion |
Nil |
|||||
Duty Cycle |
100% Continuous |
|||||
ADVANTAGES:
Reduction in Breakdown of Electrical Equipments
Improvement in power Factor (only in case of High Voltage)
Power Saving (reduction in Power Bills)
Depreciation as per Income Tax Act. In India
Uniform Quality of end Products
Better Efficiency in Plant
Reduction in MDI
COMPARISONBETWEENPOWERMAKE & CONVENTIONAL MAKE
AUTOMATIC VOLTAGE CONTROLLER
|
POWERMAKE ROLLER TYPE REGULATOR BRUSH |
CONVENTIONAL MAKE WITH CARBON REGULATOR
|
|
.Power consumption is 0.5 to 15% depending upon the model and input voltage variation. |
.Power consumption is 2 to 7% depending Upon the model and input voltage variation. |
|
.Suitable for continuous 100% Duty cycle. |
.Suitable for only 30% to 40% duty cycle. |
|
.The carbons (graphite) Roller roll, while moving on the coil track, so contact Point of the roller goes on changing which prolongs the life of the rollers. |
.Since the contact is by brush having flats surface, wear & tear of the brush is more and requires wear & tear of the brush is more and requires frequent replacement. |
|
.Life at full load is 15-20 year. |
.Maximum life is 2-3 years at full load. |
|
.Negligible losses in full Buck / Boost Condition. |
.Max. Losses in full Buck / boost condition. |
|
.Five years Unconditional warrantee in India |
.Normal warrantee for one year. |
|
