Carton Forming and Bottom Sealing 12 Carton / Min
US$ 7,500 - 8,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Usage:
Other Forming Machine, CARTON FORMER
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Carton Erecting Machine Tapping MachineUS$ 7,500 - 8,500MOQ: 1 Set -
Carton Forming,corrugate Box Erecting Packing MachineUS$ 7,500 - 8,500MOQ: 1 Set
-
Carton Erecting Machine Tapping Machine With Bottom SealingUS$ 7,500 - 8,500MOQ: 1 Set
-
Carton Erecting Carton Forming MachineUS$ 7,500 - 8,500MOQ: 1 Set
-
Carton Erecting Packing Machine Carton Forming MachineUS$ 7,500 - 8,500MOQ: 1 Set
Condition
New
Automatic Grade
Automatic
Place of Origin
Shanghai, China
Brand Name
yuanxupack
Model Number
YKX-01
Voltage
220/380V
Power(W)
1000W
Dimension(L*W*H)
2000 1630 1400
Weight
600KG
Certification
CE
Warranty
1 YEAR
After-sales Service Provided
Overseas service center available
Specifications
carton formingCE & GS certificate
FOB Shanghai $9,990
min order 5 units
1-15 days delivery

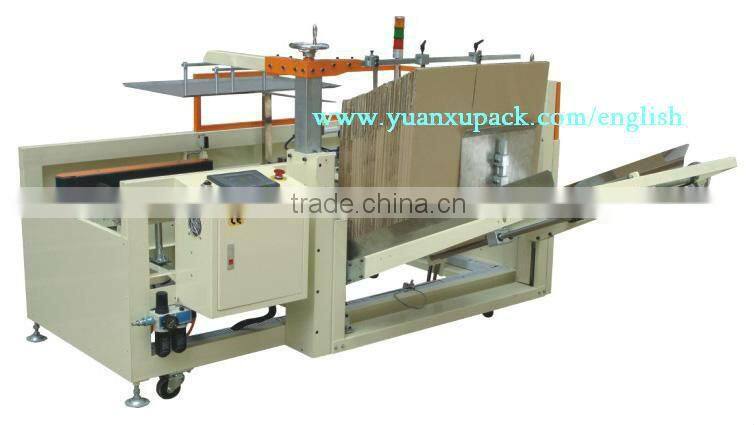

YKX-01 Carton Erector With Bottom Sealer
Compact and durable design, easy to operate.Bottom belts driven best suit for sealing light carton.
Operation is simplified with a low-level, easy to load tray magazine, which may be refilled at any time during operation. The magazine feeds from the top of the stack, for smooth, interrupted tray supply, and trays are transported by heavy, chain-mounted flight lugs for positive placement through loading and sealing.
Easy-open, gull wing style guard doors are standard equipment, providing complete machine containment yet ensuring easy access when opened. PLC electronics control operation, document performance and take the guesswork out of diagnostics.
| MODEL | YKX-01 |
| Carton size | (L) 200-450mm (W)150-400mm (H) 100-350mm |
| Table height | min.650mm |
| Working speed | 600-720 (ctns/hr) |
| Machine size | (L)2000mm (W)1900mm (H)1200mm |
| Power | 220/380V single phase, 50/60 Hz or, specified by client |
| Pneumatic | 5-6kg / , 150 Ne/min |
| Tape width | 48mm, 75mm alternative use |
| Machine net weight | approx.350kgs |
