Specifications

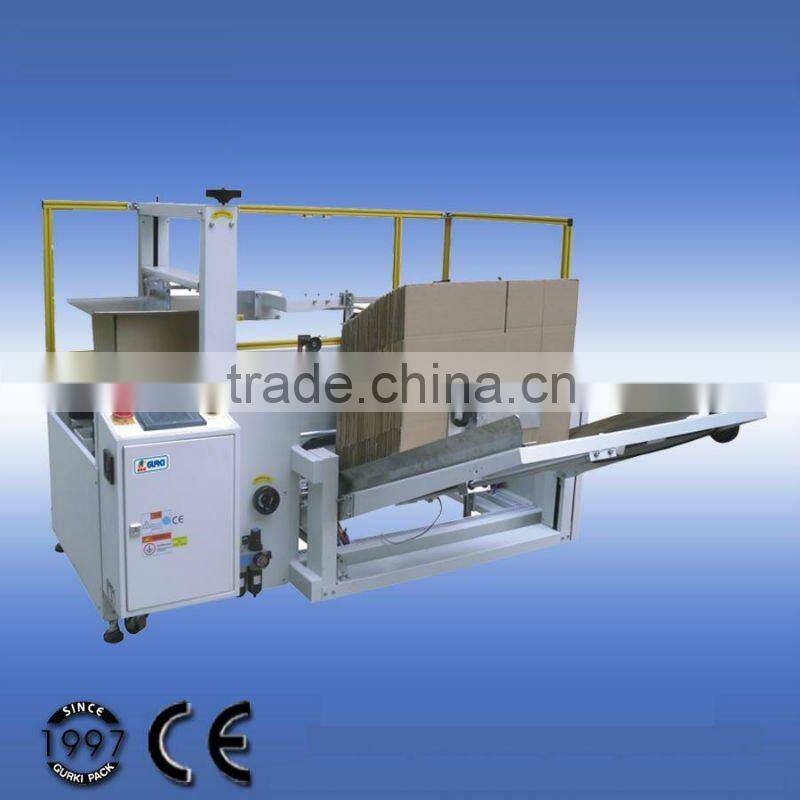

Case Carton Erector is used to make the carton erect,bottom sealed. do u need the conveyor link with machine
YKX-01 Case Carton Erector KX01 Case Erecting Machine,Case Erector,Carton Erecting Machine
[Carton Erecting Machine,carton forming machine,carton packing machine,packaging machine]
Feature:

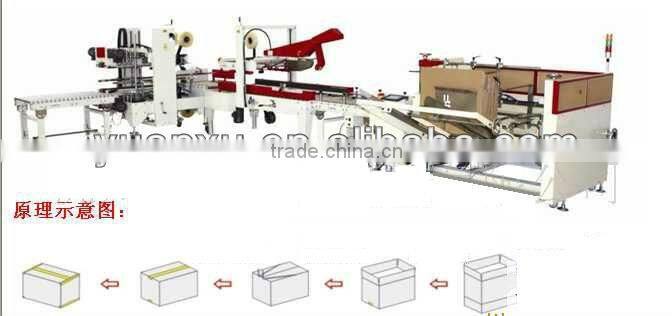

* Automatic have carton open form, bottom leaves sealed.
* Folded grasping movement, automatic correct right angle, open the carton without any mistakes
* Compact design, simple installment
* Carton Supply device: Suitable for different sizes, place the cartons in line and order
* bottom sealed with Tape, clean, correct, light touch.
* Supply chains are of SUS304, Oil-less, qualified GMP
* Safety shield is made of carbon steel, aluminum alloy and engineering plastic, and meets the state standard.
* Cap folding mechanism is made o f stainless steel with cylinder.
* Carton pressing mechanism is made of macromolecule engineering plastic and chrome plated spring and carbon steel with coated surface.
* Cardboard is unfolded with the plate sucking device under the control cylinder.
* Bottom folding of the carton is finished with folding mechanism under the control cylinder.
Technical Parameter:
| Carton size | (L) 200-450mm (W)150-400mm (H) 100-350mm |
| Table height | min.650mm |
| Working speed | 600-720 (ctns/hr) |
| Machine size | (L)2000mm (W)1900mm (H)1200mm |
| Power | 220/380V single phase, 50/60 Hz or, specified by client |
| Pneumatic | 5-6kg / , 150 Ne/min |
| Tape width | 48mm, 75mm alternative use |
| Machine net weight | approx.350kgs |
<p><br>tell us the carton size , height, weight, speed as well.
</p><p>my name is helen. pls contact me
</p><p>Mob.:0086 - 15026578951
</p><p>skype:hi2006567</p>
