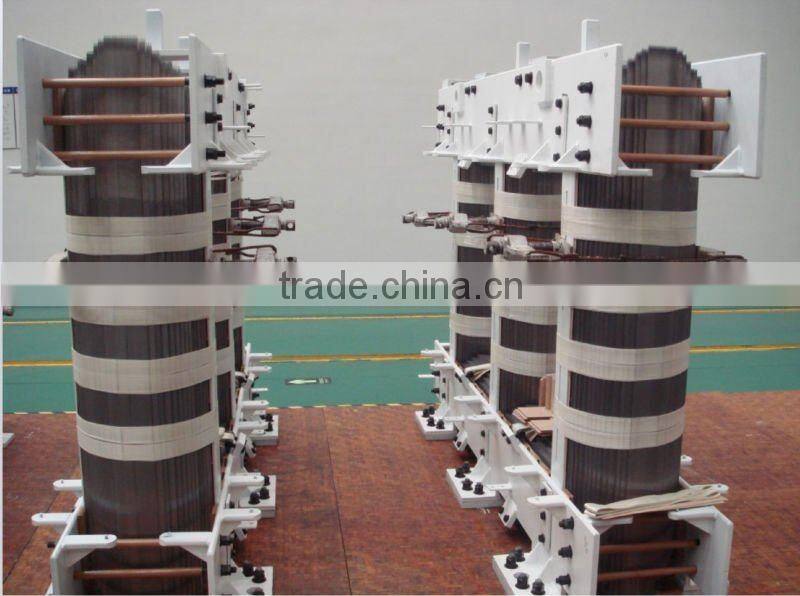

Manufacturer Fiber Glass Reinforced Banding Tape For Transformer/Motor/Motor Rotor/Mutual Inductor

Manufacturer Fiber Glass Reinforced Banding Tape For Transformer/Motor/Motor Rotor/Mutual Inductor thumbnail-1
Manufacturer Fiber Glass Reinforced Banding Tape For Transformer/Motor/Motor Rotor/Mutual Inductor photo-1
US$ 0.08 - 0.25 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Hai Ying
Model Number:
2853-w,2841-w,2830
Contact Supplier Request Quote Chat Now
Shanghai Haiying Insulation Glass Fiber Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Hai Ying
Model Number 2853-w,2841-w,2830
Type Insulation Tape
Material Other, Fiberglass, Glass Fiber
Application Other, Transformer,Motor,Arrester
Tensile Strength ≥1500N/cm

Specifications

1> MOQ:2000M
2>Supply Abilities:4500000M/Month
3>ISO9001:2008 SGS Certificate
4>EXW Price

Manufacturer Fiber Glass Reinforced Banding Tape For Transformer/Motor/Motor Rotor/Mutual Inductor

Popular & Best-selling Insulating Fiber Glass Tape:

   "HaiYing"H180, F155,B130 banding tapes consist of parallel twisted E-glass yarns preimpregnated with a special thermosetting polyester resin. The banding tape is pliable and tacky. Its web structure provides easy unwind without glass strands separation and overlapping.The product contributes the characteristics of high tensile strength, high resistance to shocks, high modulus of elasticity, dimensional stability as well as no magnetically confining and eddy currents losses, which can be widely used as ideal banding materials for electrical motors, transformers and lightning arresters.

Properties:
Type
2850-W
 2841-W
2830
Thermal class
H
 F
B
Volatile content
≤2%
 ≤4%
≤5%
Loss of weight at calcination
26%±2%
 26%±2%
26%±2%
Soluble resin content
≥90%
 ≥90%
≥90%
Tensile strength before curing
≥2000N/cm(0.33mmT)
 ≥1500N/cm(0.3mmT)
≥500N/cm(0.17mmT)
Maximum pull while banding
1500N/cm
 1000N/cm
400N/cm
Specification:
Thickness (mm)
Width (mm)
Length (M/pancake)
0.17
10,15,20,25,30
250
50
100,120
0.3/0.33
10,15,20,25,30
200
50
100
      * Special specification and package are availabe upon request, (such as spool)
Curing cycles:
Temperature (°C)
160
150
135
120
115
Time (hour)
5
6
8
16
24
      * The above times do not include the time for the workpiece to reach the curing temperature.
Storage stabili:
Storage temperture °C
10
15
20
30
Time (month)
12
10
6
3


 Manufacturer Fiber Glass Reinforced Banding Tape For Transformer/Motor/Motor Rotor/Mutual InductorManufacturer Fiber Glass Reinforced Banding Tape For Transformer/Motor/Motor Rotor/Mutual InductorManufacturer Fiber Glass Reinforced Banding Tape For Transformer/Motor/Motor Rotor/Mutual Inductor
