Smd 2835 S Shape Type 12V 24V LED Flexible Strip Light for Channel Letters Backlight Advertisement Signage

Smd 2835 S Shape Type 12V 24V LED Flexible Strip Light for Channel Letters Backlight Advertisement Signage photo-1

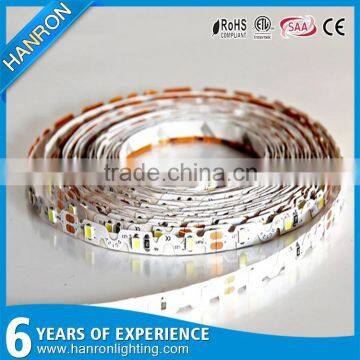

Smd 2835 S Shape Type 12V 24V LED Flexible Strip Light for Channel Letters Backlight Advertisement Signage photo-2

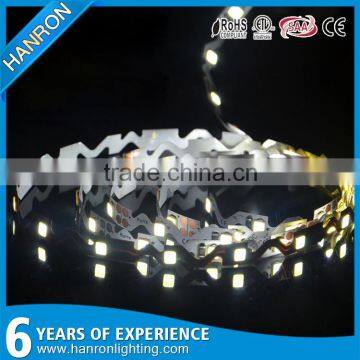

Smd 2835 S Shape Type 12V 24V LED Flexible Strip Light for Channel Letters Backlight Advertisement Signage photo-3
Smd 2835 S Shape Type 12V 24V LED Flexible Strip Light for Channel Letters Backlight Advertisement Signage photo-4
US$ 1 - 5 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
Epistar smd5050 LED
Type:
Flex LED Strips
Input Voltage(V):
DC12 24V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source Epistar smd5050 LED
Type Flex LED Strips
Input Voltage(V) DC12 24V
Lamp Power 14.4W/M
Lamp Luminous Flux(lm) 22-26lm Per LED
Color Temperature(CCT) 2400K-8000K
Working Temperature(℃) -30, 40
Working Lifetime(Hour) 30000
Lamp Body Material Copper
Certification BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name Hanron
Model Number HR00-C12AWW30PCS

smd 2835 S shape type 12V 24V LED flexible strip light for Channel Letters Backlight advertisement Signage



SMD5050 S type LED Strip Specification:

Item NO. HR00-C12AWW30PCS
Voltage DC12/24V
Power 7.2W/Meter
Led number 30leds/Meter
Beam Angle 120 degree
Color Red/Yellow/Blue/White/Green/Warm White
IP Grade IP20/IP65/IP66/IP68
Certificate CE&RoHS
Warranty 5/2Year

Features:

  1. TOP SMD5050 chip, high brightness, wide beam angle, low decay.
  2.  Easy to install for any bending
  3.  Low power consumption, long life span, free maintenance
  4.  Working temperature: -40 - 50
  5.  Storage temperature:-50 - 60
  6.  Certification: CE & RoHs

smd 2835 S shape type 12V 24V LED flexible strip light for Channel Letters Backlight advertisement Signage



Application:

  1. Advertising signboard
  2. Architectural lights for Decorative Contour
  3. Backlight or edge lighting for signage
  4. Emergency exit, Stairway, Archway ,Blister words backlit
  5. DIY lights for home use, Mini signage, letters
  6. Path and contour marking
  7. Decorative lights for holiday, event, show, exhibition
  8. Special light effect for art gallery and glass-made items

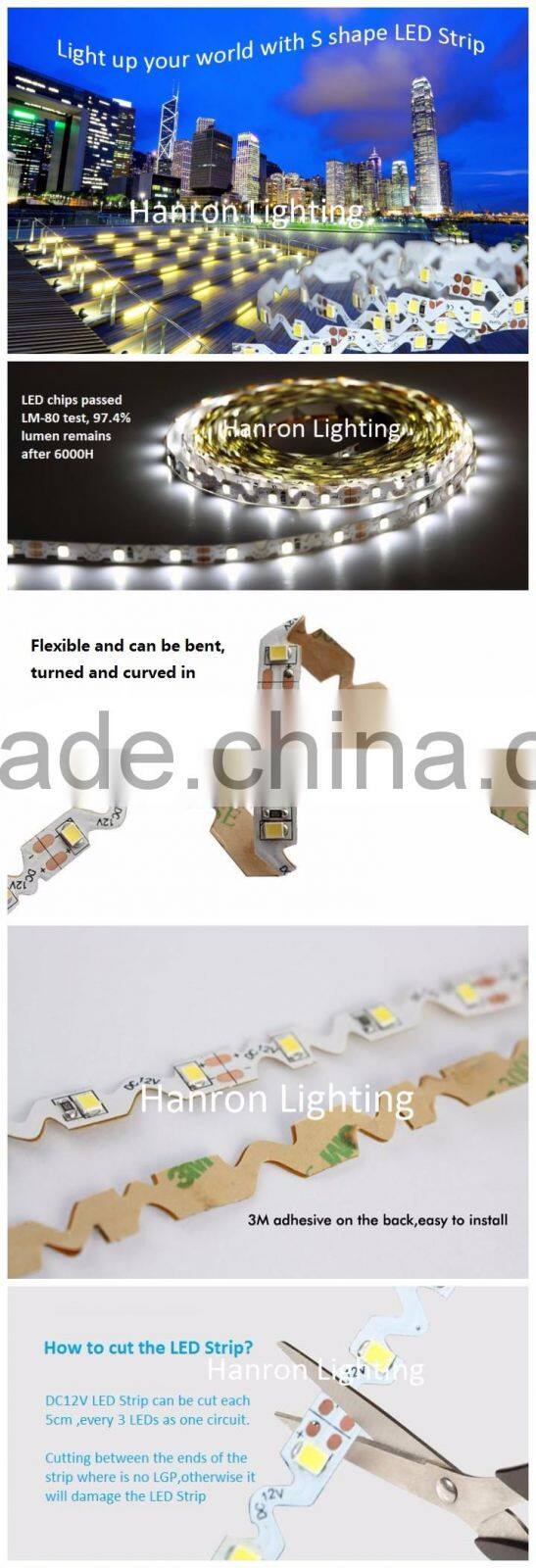

 smd 2835 S shape type 12V 24V LED flexible strip light for Channel Letters Backlight advertisement Signage

 Connect Drawing

smd 2835 S shape type 12V 24V LED flexible strip light for Channel Letters Backlight advertisement Signage


Installation



1. The black of strip stick with 3M tape. Only need to rive the face paper on 3M tape when use.

2. Stick the strip anywhere 3M tape easy to fix.

3. When install strips, it can be cut at the marks of scissors according to length.

4. Fix the strips with screw of clip lock.



Certificate


smd 2835 S shape type 12V 24V LED flexible strip light for Channel Letters Backlight advertisement Signage

Factory Tour 1

smd 2835 S shape type 12V 24V LED flexible strip light for Channel Letters Backlight advertisement Signage

Factory Tour 2

smd 2835 S shape type 12V 24V LED flexible strip light for Channel Letters Backlight advertisement Signage

Our Advantage

smd 2835 S shape type 12V 24V LED flexible strip light for Channel Letters Backlight advertisement Signage

Quality Control

smd 2835 S shape type 12V 24V LED flexible strip light for Channel Letters Backlight advertisement Signage
smd 2835 S shape type 12V 24V LED flexible strip light for Channel Letters Backlight advertisement Signage
smd 2835 S shape type 12V 24V LED flexible strip light for Channel Letters Backlight advertisement Signage
smd 2835 S shape type 12V 24V LED flexible strip light for Channel Letters Backlight advertisement Signage

New Desgin Epistar chip smd 2835 S shade Bendable led flexible strip light 3D ads sign colorful IP20 DC12V 24V Rope Light

New Desgin Epistar chip smd 2835 S shade Bendable led flexible strip light 3D ads sign colorful IP20 DC12V 24V Rope Light

New Desgin Epistar chip smd 2835 S shade Bendable led flexible strip light 3D ads sign colorful IP20 DC12V 24V Rope Light
