NON Waterproof SMD3528 DC12V LED Rigid Light Bar Stip 120led/m
US$ 2.95 - 2.95
MOQ: 200 Meters
Key Specifications
Get Latest Price
LED Light Source:
SMD3528
Type:
LED Bar Lights
Input Voltage(V):
DC12V/24V
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Epistar Chip 72LEDs SMD5050 LED Rigid Strip Bar Lighting 12V DCUS$ 4.20 - 4.20MOQ: 200 Pieces -
High Brightness Non Waterproof SMD5050 60LED/M LED Rigid Light Bar Strip Quality Choice Most PopularUS$ 3.60 - 3.60MOQ: 200 Pieces
-
Factory Price DC12V 60LEDs SMD5050 LED Rigid Strip Bar LightUS$ 3.60 - 3.60MOQ: 200 Pieces
-
China Supplier TOP SMD5050 Chip DC12V LED Light Bar / Wholesale Led Light Bar 1000*12 mm Most Popular Supplier'US$ 1.5 - 5MOQ: 200 Meters
-
Export LED Rigid Bar 12V Best Selling Products in DubaiUS$ 1.5 - 5MOQ: 200 Meters
LED Light Source
SMD3528
Type
LED Bar Lights
Input Voltage(V)
DC12V/24V
Lamp Power
9.6W/M
Lamp Luminous Flux(lm)
6-7LM/LED
Color Temperature(CCT)
5500-6500K
Working Temperature(℃)
-50, 60
Working Lifetime(Hour)
30000
Lamp Body Material
Aluminum
Certification
CE
Emitting Color
White
Place of Origin
Guangdong, China
Brand Name
Hanron
Model Number
HR01-A12AW120

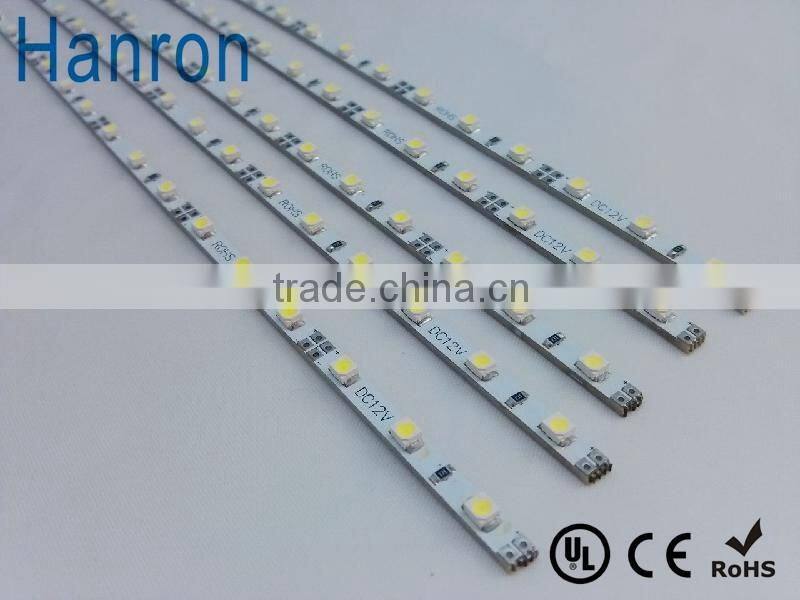

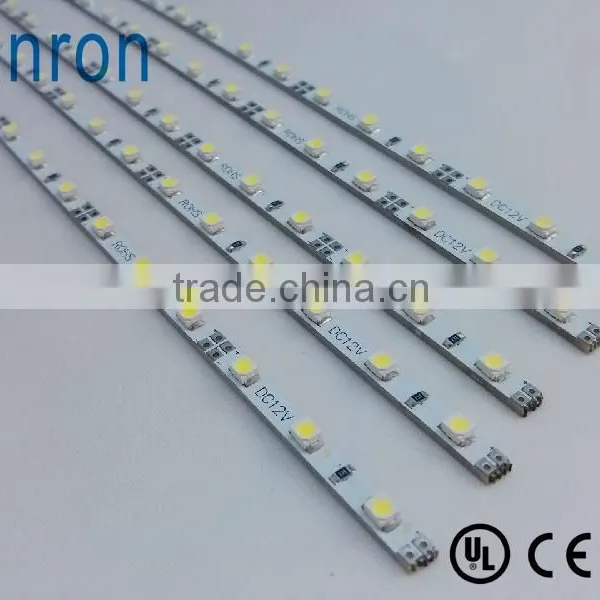

NON waterproof SMD3528 DC12V LED rigid light bar stip 120led/m
Feature:
* Every 3 LEDs in one circuit
* Small volume,High brightness,long-life span

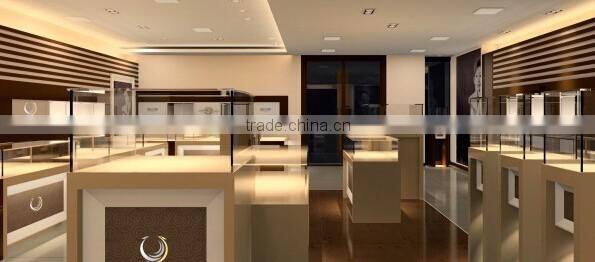

Application :
*SMD high brightness rigid bar is applied in Hotel,ultra-thin light box,KTV entertainment venues and interior decoration
*Advertisement signboard,Boutique decoration area
*Holiday decoration lighting,display and Exhibition
* Supermarket shoppe,Jewelry table and valuable horologe counter
Parameter :
| Item | HR01-A12AW120 |
| LEDs quantity | 120pcs |
| Power | 9.6W/M |
| Rated voltage | DC12V |
| Storage condition | -40 °C~50°C |
| Working environment | -50 °C~60°C |

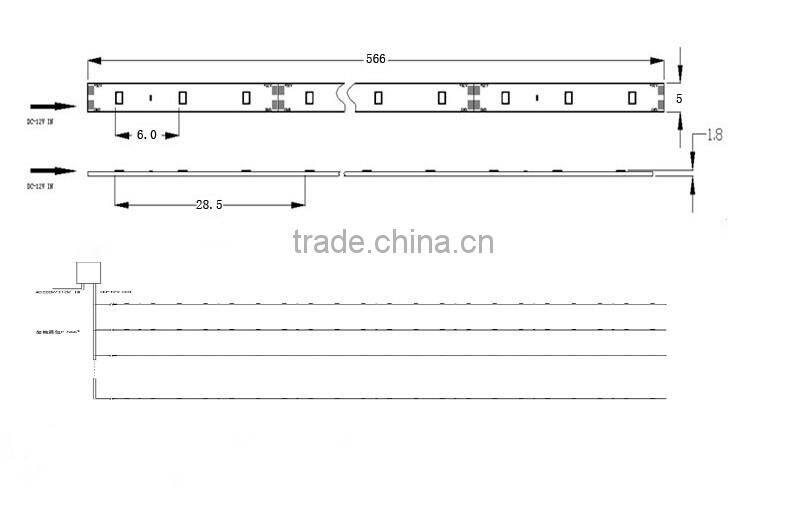

Dimension (mm):
Use Manual:
1. Please read the specification first to make sure the using condition is fit
2. Please shut off the switch before connect the product, then turn on
3. This product warranty for one year
Safety Information
* The strip itself and all its components may not be mechanically stressed.
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable electrical and safety standards.
Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements.
* Assembly must not damage or destroy conducting paths on the circuit board.
* Installation of LED ribbon (with power supplies) needs to be made with regard to all applicable electrical and safety standards.
Only qualified personnel should be allowed to perform installations.
* Correct electrical polarity needs to be observed. Wrong polarity may destroy the strip.
* Parallel connection is highly recommended as safe electrical operation mode.
* Serial connection is not recommended. Unbalanced voltage drop can cause hazardous overload and damage the strip.
* Please ensure that the power supply is of adapters power to operate the total load.
* When mounting on metallic or otherwise conductive surfaces, there needs to be an electrical isolation points between strip and the mounting surface.
* Pay attention to standard ESD precautions when installing the strip.
* Damaged by corrosion will not be honored as a materials defect claim. It is the user’s responsibility to provide suitable protection against corrosive agents such as moisture and condensation and other harmful elements.
