600*600 40W Dimmable 0-10V&Push silm led square panel light lighting with CE RoHS flicker free driver
1.Features:
*Super bright LED as lighting sources
*CE&RoHS certificated, meet the requirements of UL SAA,VDE
*Japanese Imported light diffusion material, mercury and lead free
*High lumen output, high efficiency, energy saving up to 60%
*Excellent heat dissipation structure, long lifespan, normal use can reach over 30,000hrs
*Lead free, eco-friendly
2.Applications:
* Hotels
* Meeting rooms
* Factories or offices
*Commercial lightings
*Residential or public facilities
*Schools
*Hospitals
*Everywhere for energy-saving and high CRI lighting area
3. Parameter:
| Model No. | Wattage |
LED Type | LED Qty | Voltage |
PF | Lumen |
CCT |
CRI | Beam angle | LED Driver | Dimension |
Material | Lifetime |
| HR12-606040AD | 40 | SMD2835 | 180 | AC100-240V | >0.9 | 3200 | 3000K |
80 | 120° | CE&RoHS |
600x600x8 | Alu+PMMA | >50000 |

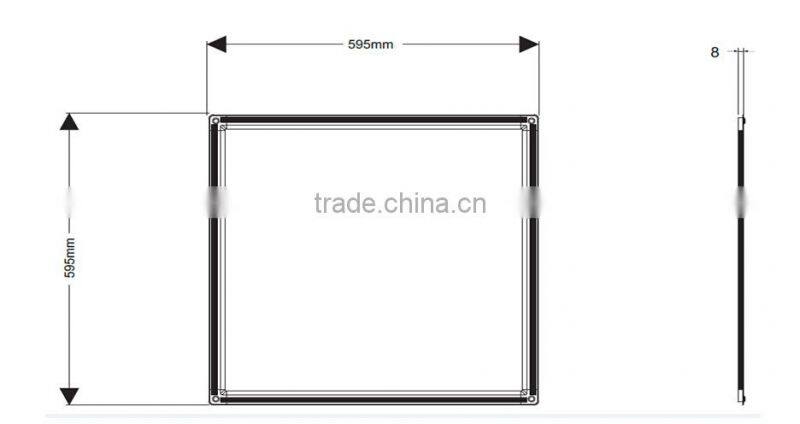

4. Dimensional Drawing(Unit: mm):
5. Test Report:
6. Installation Instruction:

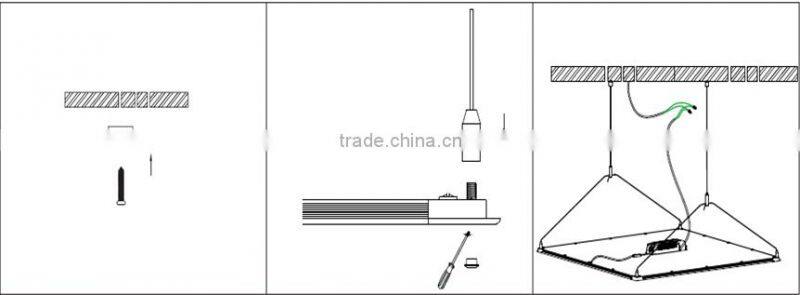

Hanging installation diagram

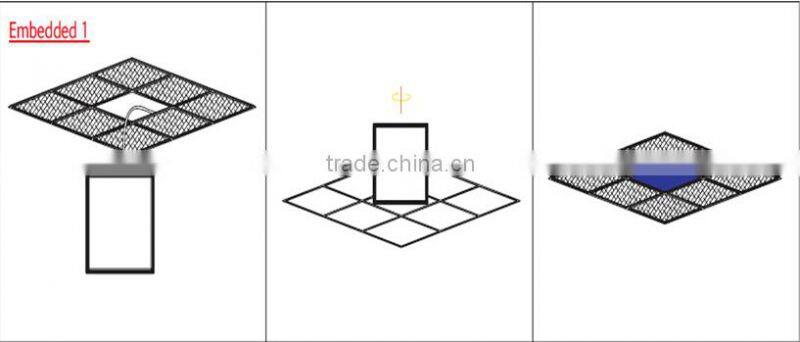

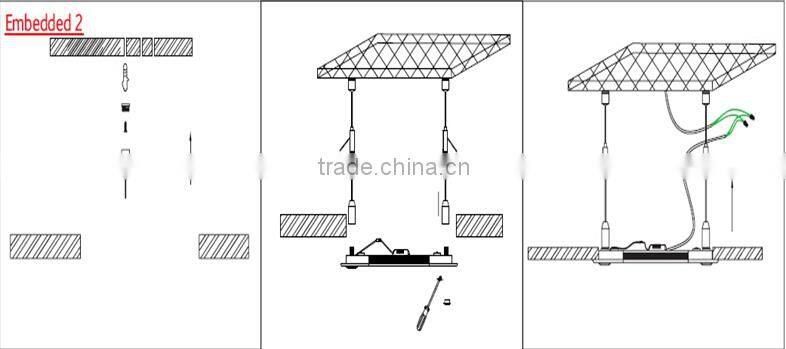

Embedded installation diagram

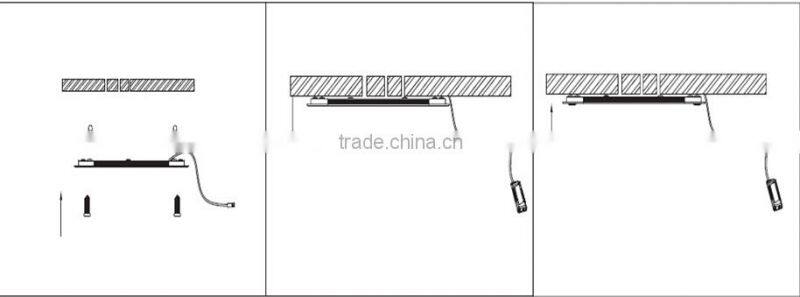

Ceiling mounted installation diagram
Note: External power supply has to be installed by yourself. If you purchase power supply from other suppliers, make sure the same voltage and current with the lamp to avoid damaging product. So, we strongly suggest you use compatible power supply professionally designed by us.
7. Packaging:
* Diagram
*Notes
| Product Type | Outside Carton dimension(cm) |
Inside box dimension(cm) |
QTY /Carton |
| 600*600 | 67.5(L)*68(W)*25(H) | 66(L)*66(W)*4.3(H) | 5 |
8 Notes:
*When installation, try to avoid them in minefields, strong magnetic field and high-voltage area;
* Ensure a solid connection correctly in order to avoid short-circuit damage to components and trigger fires;
*Install LED in a well-ventilated place to ensure appropriate environmental temperature;
*Please check local voltage in accordance with the product requirements before using the product;
*To prohibit the live wiring, check to confirm the wiring correct, confirm no short-circuit and then power on;
* In case of failures. Don’t maintain it in private.
9. Certificate:
10. Factory Tour:
11. Our Advantage:
