IP68 Waterproof Smd 5050 RGB Led Flexible Strip Strips Rgb Light 10 Meter

IP68 Waterproof Smd 5050 RGB Led Flexible Strip Strips Rgb Light 10 Meter thumbnail-1
IP68 Waterproof Smd 5050 RGB Led Flexible Strip Strips Rgb Light 10 Meter thumbnail-2
IP68 Waterproof Smd 5050 RGB Led Flexible Strip Strips Rgb Light 10 Meter thumbnail-3
IP68 Waterproof Smd 5050 RGB Led Flexible Strip Strips Rgb Light 10 Meter thumbnail-4
IP68 Waterproof Smd 5050 RGB Led Flexible Strip Strips Rgb Light 10 Meter photo-1
IP68 Waterproof Smd 5050 RGB Led Flexible Strip Strips Rgb Light 10 Meter photo-2
IP68 Waterproof Smd 5050 RGB Led Flexible Strip Strips Rgb Light 10 Meter photo-3
IP68 Waterproof Smd 5050 RGB Led Flexible Strip Strips Rgb Light 10 Meter photo-4
US$ 3.35 - 3.45 MOQ: 200 Meters
Key Specifications
Get Latest Price
LED Light Source:
SMD5050
Type:
Flex LED Strips
Input Voltage(V):
DC12/24V
Contact Supplier Request Quote Chat Now
Shenzhen Hanron Lighting Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5050
Type Flex LED Strips
Input Voltage(V) DC12/24V
Lamp Power 14.4W/M
Lamp Luminous Flux(lm) 22-26lm/led
Color Temperature(CCT) 465nm- 650nm
Working Temperature(℃) -30, 40
Working Lifetime(Hour) 30000
Lamp Body Material Copper
Certification CE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name Hanron
Model Number HR00-C12ARGB60PD

IP68 waterproof smd 5050 RGB led flexible strip strips rgb light 10 meter

           IP68 waterproof smd 5050 RGB led flexible strip strips rgb light 10 meter

IP68 waterproof smd 5050 RGB led flexible strip strips rgb light 10 meter





1.Features:



* 5050 RGB  color



* Size:1000*10mm



* Beam Angle:120 °



* LED:60leds/m



* 200MP 3M tape in the back



* Working Voltage :DC12V



* Working Current : 60 mA/ Group



* Power:14.4W/M



* CE&RoHS Certificated



* Black/white/yellow FPC are optional

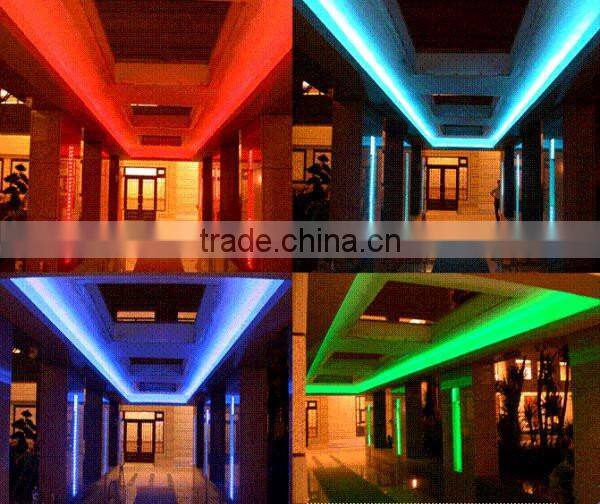

2.Applications:



* Cove lighting



* Architectural lights for canopy, corridor, window, archway



* Backlight or edge lighting for signage



* DIY lights for home use



* Path and contour marking



* Decorative lights for holiday, event, show, exhibition



* Special light effect for art gallery and glass-made items





3. Parameter

Item NO.     LED    (pcs/m)     Voltage              (V)

Power    (W/M)

  color       Color  Temperature Package
HR00-C12ARGB60PD        60            12     14.4    RGB              /  5m/roll

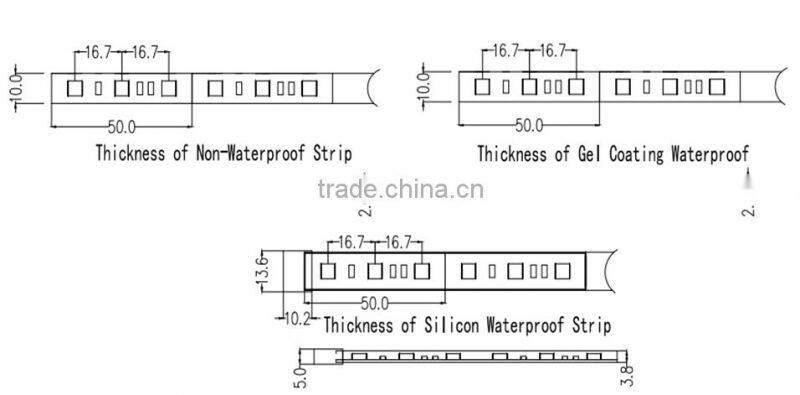

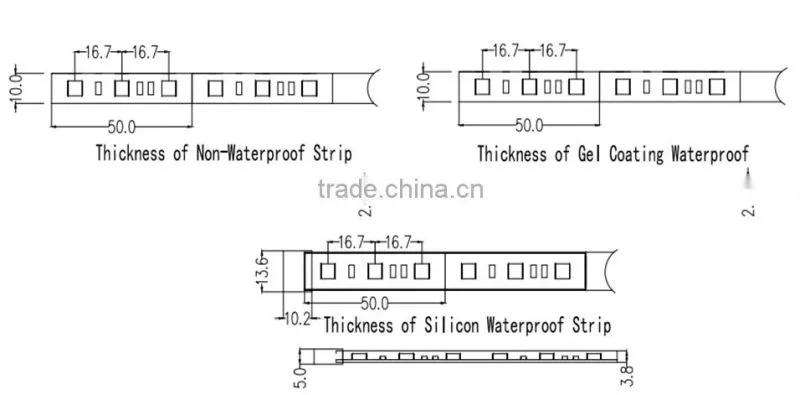

 4. Dimension



IP68 waterproof smd 5050 RGB led flexible strip strips rgb light 10 meter

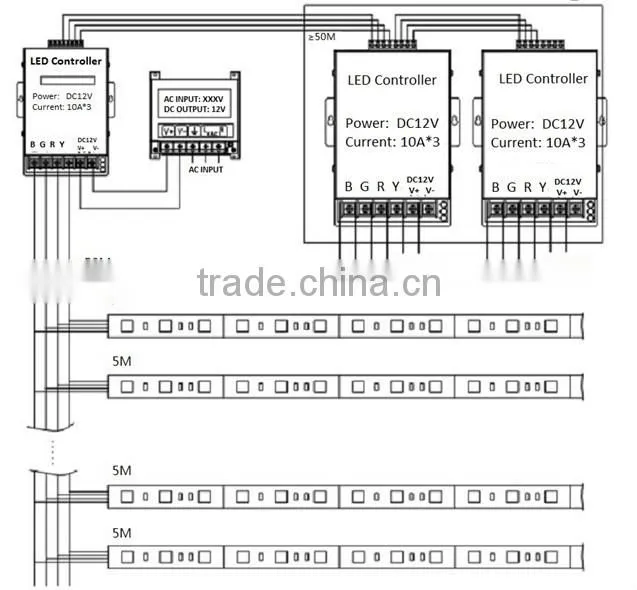

5.Connect Drawing



IP68 waterproof smd 5050 RGB led flexible strip strips rgb light 10 meter

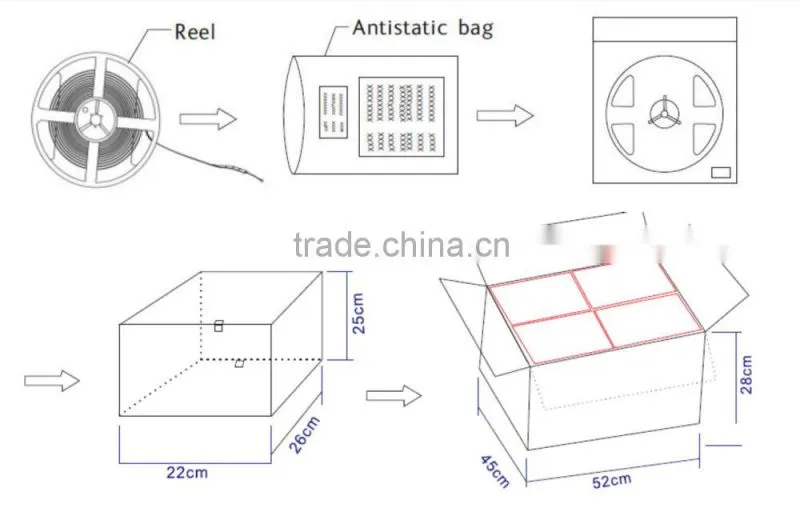

6. Package

IP68 waterproof smd 5050 RGB led flexible strip strips rgb light 10 meter







7.Notes





1. Connect red cable to positive, black cable to negative; equip safe protector to cable outlet, confirm input voltage of is 12V before power supply concatenation,working voltage is 12V, Wrong voltage concatenation will cause permanent damage.



2. Max length for concatenation is 5M for one circuit. Make another circuit if length is over 5M. Same cable length for every circuit.





3. Ensure cable outlet of strip to be waterproof


4. Prohibit touching and operating with static.


5. Please use qualified SMPS with short circuit protection S.O.P. certificate.


6. Diameter of electrical cable depends on actual max output current,product power,cabling length (less 5M)and low voltage    transmission cable.


7. Don’t hit,squeeze strip, don’t bend strip overly


8. Ensure installed surface tidy, clean and dry.


9. Avoid rain and mechanical vibration.


10. Place SMPS in ventilated and dry environment.


11. Usually only80-90% of SMPS total power is consumed






8. Certificate



IP68 waterproof smd 5050 RGB led flexible strip strips rgb light 10 meter




 9. Factory Tour:

IP68 waterproof smd 5050 RGB led flexible strip strips rgb light 10 meter



10. Our Advantage:



IP68 waterproof smd 5050 RGB led flexible strip strips rgb light 10 meter

IP68 waterproof smd 5050 RGB led flexible strip strips rgb light 10 meter

IP68 waterproof smd 5050 RGB led flexible strip strips rgb light 10 meter

IP68 waterproof smd 5050 RGB led flexible strip strips rgb light 10 meter
