Features:
1. TOP SMD3528 chip, high brightness, wide beam angle, low decay.
2. Easy to install for any bending

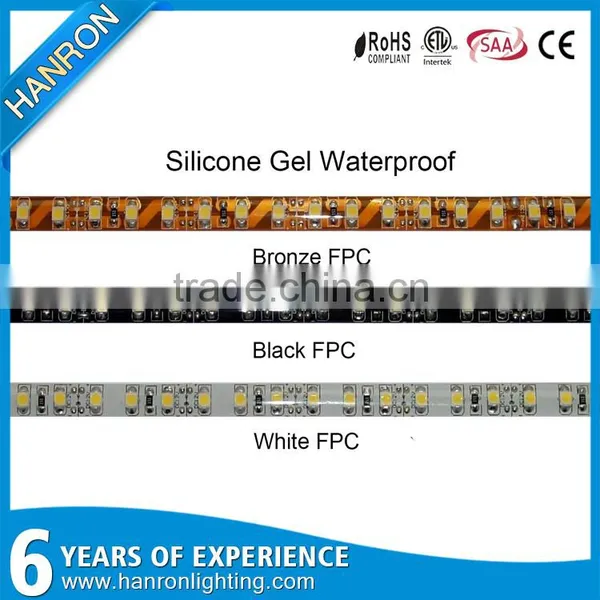

3. Black/white/yellow FPC are optional.
4. DC12 drive, safe usage.
5. Low power consumption, long life span, free maintenance
6. Certification: CE, RoHs
Applications:
1. Cove lighting
2. Architectural lights for canopy, corridor, window, archway
3. Backlight or edge lighting for signage
4. DIY lights for home use
5. Path and contour marking
6. Decorative lights for holiday, event, show, exhibition
7. Special light effect for art gallery and glass-made items
Optical Parameters:
| Item NO. | Description | Color | Wave Length/C. T. | Luminous Flux/M | Beam | Protect Level | Size |
| Angle | (mm) | ||||||
| HR00-A12AWW120PA |
Non- Waterproof SMD3528120 LED/M |
WW | 2800-3200K | 900LM±10% | 120° | IP20 |
5000* 8*2mm |
| HR00-A12ANW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A12AW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A12AR120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A12AY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A12AB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A12AG120PA | Green | 520-530nm | 484LM±10% | ||||
| HR00-A12DWW120PA |
Silicone Waterproof SMD3528120 LED/M |
WW | 2800-3200K | 900LM±10% | 120° | IP65 |
5000* 8*2.2mm |
| HR00-A12DNW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A12DW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A12DR120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A12DY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A12DB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A12DG120PA | Green | 520-530nm | 484LM±10% | ||||
| HR00-A12EWW120PA |
Silicone TubeWaterproof SMD3528120 LED/M |
WW | 2800-3200K | 900LM±10% | 120° | IP67 |
5000* 8*3.8mm |
| HR00-A12ENW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A12EW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A12ER120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A12EY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A12EB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A12EG120PA | Green | 520-530nm | 484LM±10% | ||||
| HR00-A12FWW120PA |
Glue Filling Waterproof SMD3528120 LED/M |
WW | 2800-3200K | 900LM±10% | 120° | IP68 |
5000* 8*3.8mm |
| HR00-A12FNW120PA | NW | 4000-4500K | 900LM±10% | ||||
| HR00-A12FW120PA | W | 5500-6500K | 900LM±10% | ||||
| HR00-A12FR120PA | Red | 620-630nm | 272LM±10% | ||||
| HR00-A12FY120PA | Yellow | 585-595nm | 272LM±10% | ||||
| HR00-A12FB120PA | Blue | 465-475nm | 168LM±10% | ||||
| HR00-A12FG120PA | Green | 520-530nm | 484LM±10% |
1. Diagram
2. Notes:

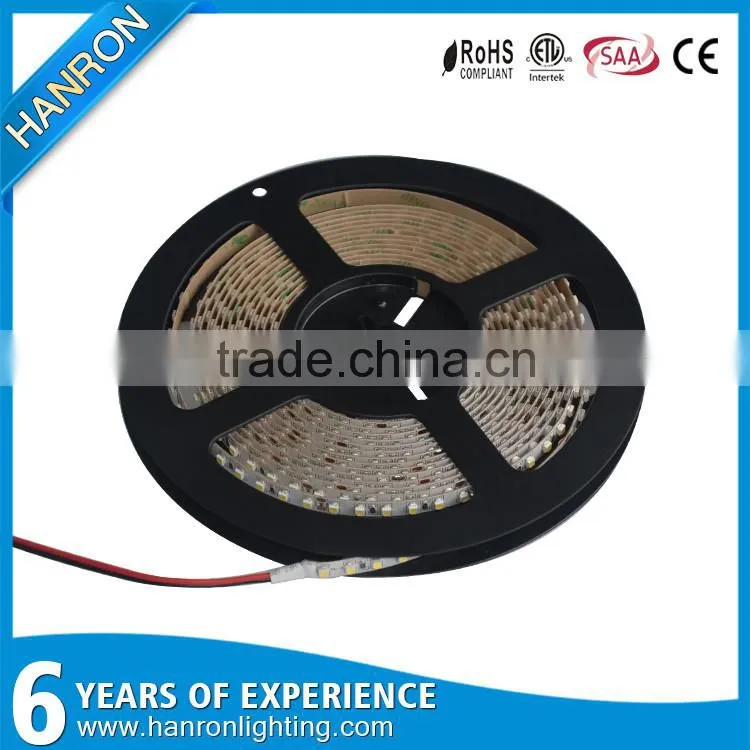

*Reel each strip(5M) by one and put in AL foil bag;
*Put 60 reels into one Carton, total 300M strip;
*Carton Dimension(mm):46*27.5*28.5
1.Less than 45 KGS, we will send by express. (Door to Door, Convenient)
2.Between 45 - 200 KGS, we will send by air transport. (Fastest and safest, but expensive )
3.More than 200 KGS, we will send by sea. (Cheapest and usual)
a. All strip solutions provider, OEM&ODM available
b. Constant voltage, constant current, color changing strip
c. Highest brightness and longest warranty
d. Long-term cooperation with our forwarder allows us to provide you the lowest freight and the fastest service.
e. Professional engineers to design and develop new LED strip according to your requirements.
f. Customized label and colored boxes are available
g. Customer logo is allowed to be labeled on our LED strip.
h. Your inquiry will be replied in 24 hours.
1) What are the best selling products in Hanron Lighting?
- LED Strip Light: Mainly SMD5050,SMD2835 and SMD3528
- LED Rigid Bar
- LED Panel Light
- LED Tube Light
- LED Flood Light
2) What kind of products will Hanron develop for the next year?
Hanron Lighting is devoted to innovation in lastest LED technology. We never stop researching new LED lights since the establishment. We keep the valued customers posted of newsletters on the development every week.
3) What is the main market for Hanron?
We are selling more to EU market because the markets have high quality standard for LED products. The rate stands our turnover up to 50-60%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for American market and Asian regions.
4) What LEDs do you usually use for your LED products?
For high level products, we use Epistar LED Chip; and middle level types, we mainly use San’an LED strip to find best balance between quality and cost. Other brands of LEDs are allowed according to customer’s requirement.
5) What is Hanron’s lead time?
Usually delivery time will be in 12-15days. But it will take a little longer if with heavy burden of production task. And more time will be taken with customized products.
6) Can Hanron offer OEM product?
Yes, OEM products are allowed. We have an excellent design/engineering team to offer support and we have several years experience in OEM. The strips can have different size, layout, customer logos and labels. We will strictly follow the principal that we won’t disclose or sell customer unique designs or jointly developed products to another third party.
7) Do you have warranty for products?
Yes, we have 2/3/5 years warranty for different kinds of products. During the warranty period, if customers have the approval showing product quality issues and if certified by Hanron Lighting engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
8) Does Hanron design its products?
Yes, Hanron Lighting designs and assembles all the products we are selling. Our engineers have abundant knowledge of optics, electronics, mechanical and thermal management, as well as light control technology. Some of them have successful experience to design lighting products for world famous brands. Our basic principle to design internal driver and circuit is safety under EMC list possibility and reliability.
1) TT, 30% deposit, 70% against the copy of B/L..
2) L/C at sight. (high bank charges, not suggest , but acceptable )
3) 100% Western Union in advance. (specially for air shipment or small amount)
