San an Chip IP67 Sicilon Tube Waterproof Smd335 Flexible Led Car Strip Light Tape 12V

San an Chip IP67 Sicilon Tube Waterproof Smd335 Flexible Led Car Strip Light Tape 12V thumbnail-1
San an Chip IP67 Sicilon Tube Waterproof Smd335 Flexible Led Car Strip Light Tape 12V thumbnail-2
San an Chip IP67 Sicilon Tube Waterproof Smd335 Flexible Led Car Strip Light Tape 12V photo-1
San an Chip IP67 Sicilon Tube Waterproof Smd335 Flexible Led Car Strip Light Tape 12V photo-2
US$ 3 - 6 MOQ: 200 Meters
Key Specifications
Get Latest Price
LED Light Source:
SMD335
Type:
Flex LED Strips
Input Voltage(V):
DC12/24V
Contact Supplier Request Quote Chat Now
Shenzhen Hanron Lighting Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD335
Type Flex LED Strips
Input Voltage(V) DC12/24V
Lamp Power 4.8W/M
Lamp Luminous Flux(lm) 432lm
Color Temperature(CCT) 5500-6500K
Working Temperature(℃) -30, 40
Working Lifetime(Hour) 30000
Lamp Body Material Copper
Certification CE
Emitting Color White
Place of Origin Guangdong, China
Brand Name Hanron
Model Number HR00-H12EW60PB

          San an chip IP67 sicilon tube waterproof smd335 flexible led car strip light tape 12V





San an chip IP67 sicilon tube waterproof smd335 flexible led car strip light tape 12V



San an chip IP67 sicilon tube waterproof smd335 flexible led car strip light tape 12V





Features:



* 335 single color



* Size:1000*8mm



* Beam Angle:120 °



* LED:60leds/m



* 200MP 3M tape in the back



* Working Voltage :DC12V



* Power:4.8W/M



* CE&RoHS Certificated



* Black/white/yellow FPC are optional







Applications:



* Cove lighting



* Architectural lights for canopy, corridor, window, archway



* Backlight or edge lighting for signage



* DIY lights for home use



* Path and contour marking



* Decorative lights for holiday, event, show, exhibition



* Special light effect for art gallery and glass-made items



Electric parameters:



 Item No.

     LED  (PCS/M)     Voltage                        (V)   Power  (W) Color Color Temperature Package
HR00-H12EW60PB        60        12    4.8 White  5500-6500K  5m/roll

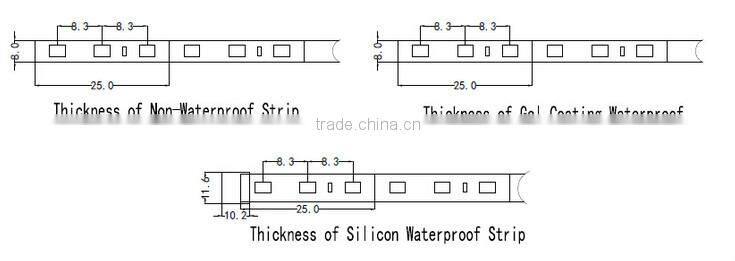

Dimensional Drawing(Unit: mm):

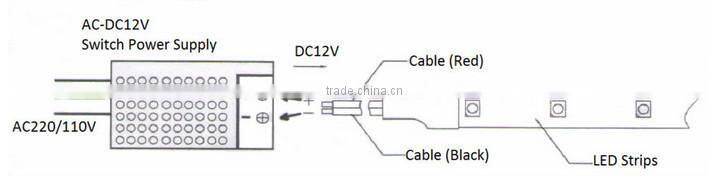

San an chip IP67 sicilon tube waterproof smd335 flexible led car strip light tape 12V  Installation Instruction:



San an chip IP67 sicilon tube waterproof smd335 flexible led car strip light tape 12V





Notes:



* Connect red cable to positive, black cable to negative; equip safe protector to cable outlet, confirm input    voltage of is 12V before power supply concatenation, working voltage is 12V, Wrong voltage concatenation    will cause permanent damage.



* Max length for concatenation is 5M for one circuit. Make another circuit if length is over 5M. Same cable length for every circuit.



*Ensure cable outlet of strip to be waterproof



* Prohibit touching and operating with static



* Please use qualified SMPS with short circuit protection,overload protection and S.O.P. certificate.



*Diameter of electrical cable depends on actual max output current,product power,cabling length (less 5M)and  low voltage transmission cable.



*Don’t hit,squeeze strip, don’t bend strip overly



* Ensure installed surface tidy, clean and dry.



* Avoid rain and mechanical vibration.



* Place SMPS in ventilated and dry environment



*Usually only80-90% of SMPS total power is consumed



Certificate:



San an chip IP67 sicilon tube waterproof smd335 flexible led car strip light tape 12V


Factory Tour:



San an chip IP67 sicilon tube waterproof smd335 flexible led car strip light tape 12V



Our Advantage:



San an chip IP67 sicilon tube waterproof smd335 flexible led car strip light tape 12VSan an chip IP67 sicilon tube waterproof smd335 flexible led car strip light tape 12V
