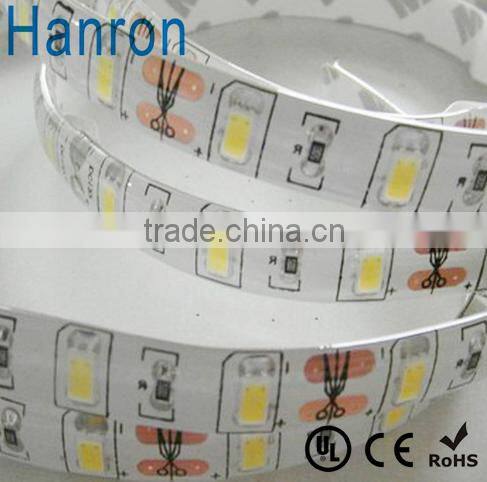

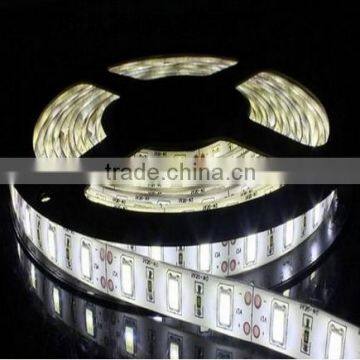

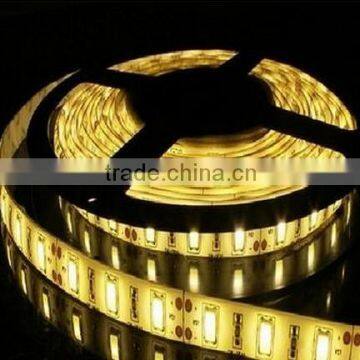

IP65 Epoxy Glue Waterproof 12V 60led/m Smd5630 Flexible Led Light Strip Stripes

IP65 Epoxy Glue Waterproof 12V 60led/m Smd5630 Flexible Led Light Strip Stripes thumbnail-1
IP65 Epoxy Glue Waterproof 12V 60led/m Smd5630 Flexible Led Light Strip Stripes thumbnail-2
IP65 Epoxy Glue Waterproof 12V 60led/m Smd5630 Flexible Led Light Strip Stripes thumbnail-3
IP65 Epoxy Glue Waterproof 12V 60led/m Smd5630 Flexible Led Light Strip Stripes photo-1
IP65 Epoxy Glue Waterproof 12V 60led/m Smd5630 Flexible Led Light Strip Stripes photo-2
IP65 Epoxy Glue Waterproof 12V 60led/m Smd5630 Flexible Led Light Strip Stripes photo-3
US$ 3.5 - 3.8 MOQ: 200 Meters
Key Specifications
Get Latest Price
LED Light Source:
SMD5630
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Contact Supplier Request Quote Chat Now
Shenzhen Hanron Lighting Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5630
Type Flex LED Strips
Input Voltage(V) DC12V
Lamp Power 16W/M
Lamp Luminous Flux(lm) 1400lm
Color Temperature(CCT) 5500-6500K
Working Temperature(℃) -30, 40
Working Lifetime(Hour) 30000
Lamp Body Material Other, Copper, Flexible Copper Strip
Certification CE
Emitting Color White
Place of Origin Guangdong, China
Brand Name Hanron
Model Number HR00-D12DW60PA

      IP65 epoxy  glue waterproof 12V 60led/m smd5630 flexible led light strip                                                                    stripes



IP65 epoxy glue waterproof 12V 60led/m smd5630 flexible led light strip stripesIP65 epoxy glue waterproof 12V 60led/m smd5630 flexible led light strip stripes





Features:

* 5630 single color

* Size:1000*10mm

* Beam Angle:120 °

* LED:60leds/m

* 200MP 3M tape in the back

* Working Voltage :DC12V

* Working Current : 80 mA/ Group

* Power:16W/M

* CE&RoHS Certificated

* Black/white/yellow FPC are optional

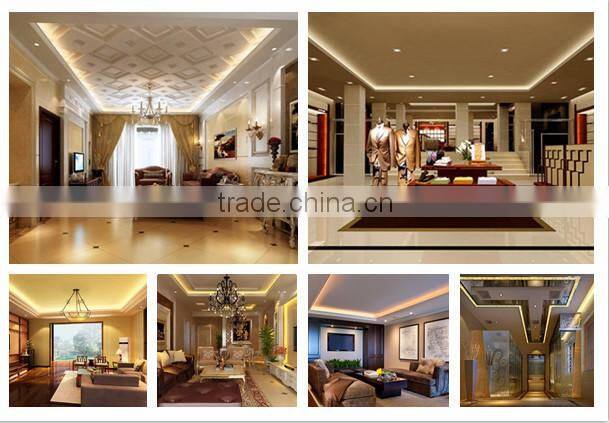

Applications:



* Cove lighting



* Architectural lights for canopy, corridor, window, archway



* Backlight or edge lighting for signage



* DIY lights for home use



* Path and contour marking



* Decorative lights for holiday, event, show, exhibition



* Special light effect for art gallery and glass-made items



Electric parameters:


Item NO.    LED    (pcs/m)      Voltage      (V)



Power

    (W/M)

   color   Color Temperature   Package
  HR00-D12DW60PA        60           12       16    White   5500-6500K  5m/roll



Dimensional Drawing(Unit: mm):



IP65 epoxy glue waterproof 12V 60led/m smd5630 flexible led light strip stripes


  Installation Instruction:



IP65 epoxy glue waterproof 12V 60led/m smd5630 flexible led light strip stripes





Notes:





* Connect red cable to positive, black cable to negative; equip safe protector to cable outlet, confirm input voltage of is 12V before power supply concatenation, working voltage is 12V, Wrong voltage concatenation will cause permanent damage.



* Max length for concatenation is 5M for one circuit. Make another circuit if length is over 5M. Same cable length for every circuit.



*Ensure cable outlet of strip to be waterproof



* Prohibit touching and operating with static



* Please use qualified SMPS with short circuit protection,overload protection and S.O.P. certificate.



*Diameter of electrical cable depends on actual max output current,product power,cabling length (less 5M)and low voltage transmission cable.



*Don’t hit,squeeze strip, don’t bend strip overly



* Ensure installed surface tidy, clean and dry.



* Avoid rain and mechanical vibration.



* Place SMPS in ventilated and dry environment



*Usually only80-90% of SMPS total power is consumed





Certificate:



IP65 epoxy glue waterproof 12V 60led/m smd5630 flexible led light strip stripes







  Factory Tour:



IP65 epoxy glue waterproof 12V 60led/m smd5630 flexible led light strip stripes



Our Advantage:



IP65 epoxy glue waterproof 12V 60led/m smd5630 flexible led light strip stripesIP65 epoxy glue waterproof 12V 60led/m smd5630 flexible led light strip stripes
