6 Colors uv Printer Jinghua Vocano-Jet a3 uv Flatbed Printer Quality Choice

6 Colors uv Printer Jinghua Vocano-Jet a3 uv Flatbed Printer Quality Choice thumbnail-1
6 Colors uv Printer Jinghua Vocano-Jet a3 uv Flatbed Printer Quality Choice thumbnail-2
6 Colors uv Printer Jinghua Vocano-Jet a3 uv Flatbed Printer Quality Choice thumbnail-3
6 Colors uv Printer Jinghua Vocano-Jet a3 uv Flatbed Printer Quality Choice thumbnail-4
6 Colors uv Printer Jinghua Vocano-Jet a3 uv Flatbed Printer Quality Choice thumbnail-5
6 Colors uv Printer Jinghua Vocano-Jet a3 uv Flatbed Printer Quality Choice thumbnail-6
6 Colors uv Printer Jinghua Vocano-Jet a3 uv Flatbed Printer Quality Choice photo-1
6 Colors uv Printer Jinghua Vocano-Jet a3 uv Flatbed Printer Quality Choice photo-2
6 Colors uv Printer Jinghua Vocano-Jet a3 uv Flatbed Printer Quality Choice photo-3
6 Colors uv Printer Jinghua Vocano-Jet a3 uv Flatbed Printer Quality Choice photo-4
6 Colors uv Printer Jinghua Vocano-Jet a3 uv Flatbed Printer Quality Choice photo-5
6 Colors uv Printer Jinghua Vocano-Jet a3 uv Flatbed Printer Quality Choice photo-6
US$ 3,000 - 3,400 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai Jinghua Machinery Manufacturer
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Flatbed Printer
Place of Origin Shanghai, China
Brand Name Jinghua
Model Number Vocano-Jet a3 uv flatbed printer
Usage Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Other, Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, uv flatbed printer
Automatic Grade Automatic
Voltage 110V/220V
Gross Power 75W
Dimensions(L*W*H) 890X750X560mm
Weight 65KG
Certification CE EMC LVD
After-sales Service Provided Engineers available to service machinery overseas
Product Description

General Explaination:

Jinghua Vocano-Jet a3 uv printer was a multi functional LED UV flatbed printer that created by Jinghua Machinery co.,ltd.Multi Color & Page flatbed,it was built with industrial configuration as thicken aluminum profile, water cyculation cooling system, 100W automatic detect UV Curing system...6 color and max. 2880 dpi printing resolution. Output with good 3D texture printing result...


Vocano-Jet a3 uv printer has space saving design to let customer can lay machine on a small room. Outlook of the flatbed printer with dust free design.The new design reduces the environmental impact on equipment. Please check the clear explaination as following:

Details

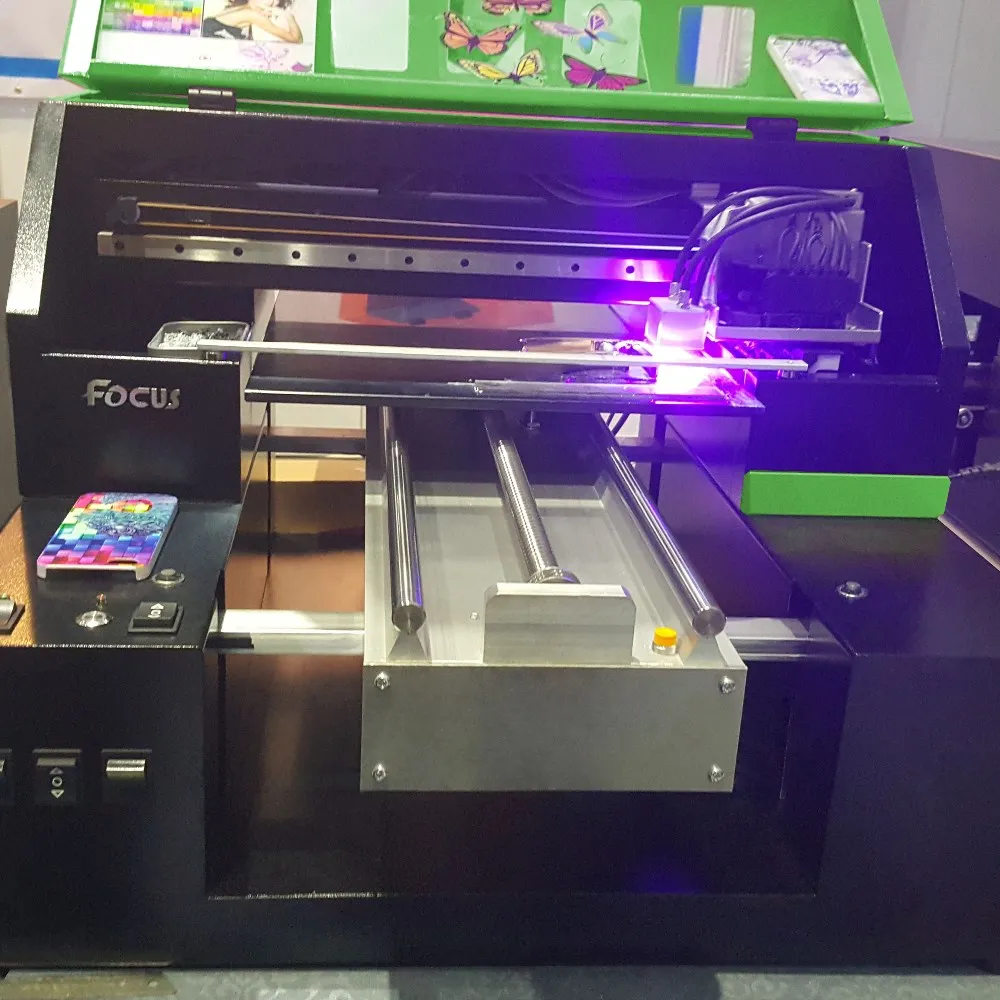

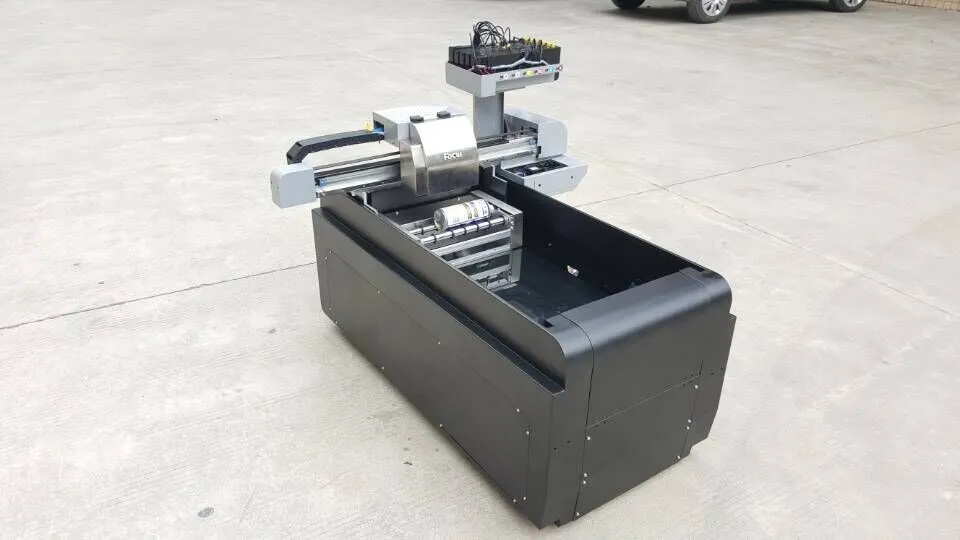

1.Thicken aluminium profile made as the keel of the machine to ensure the Vocano-Jet flatbed uv printer a3
stable working.


2.Modularized design of the flatbed to ensure the fast Focus-Pallet-Add-onfamily exchanging procedure for get a mass production.


3.Intelligent Anti-Scratch-Protectionsystem can detect the media by both red ray sensors to prevent the print head from scratching.


4.Easy operation panel can control the flatbed for Backward, Foward, Up, Down, Pause/Stop, Online/Offline and ink changing, to let you operate the machine more convinence

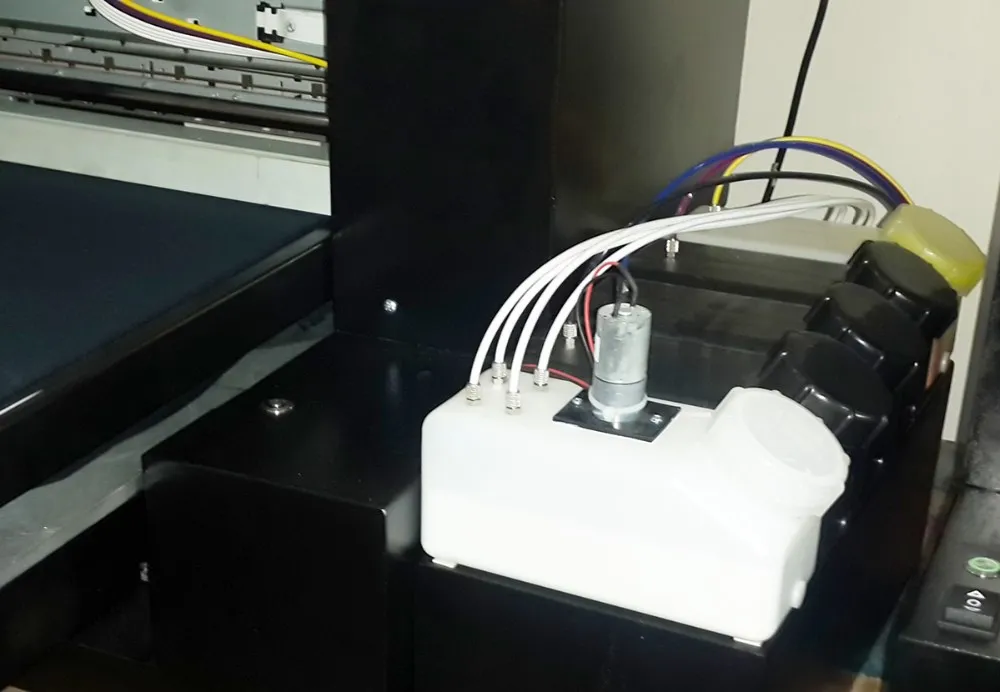

5.High quality LED UV curing system with 48pieces LED UV lamps, can get to the working power during 100W~200W immediately without waiting,also the LED light cost less power and harmless for human health. Combine with the high effective water circulation cooling system to ensure the stable printing.


6.6 color customize channel can get a high density brilliant printing results both on dark and light media with White ink and color ink printing.Unique 3D texture output option available.

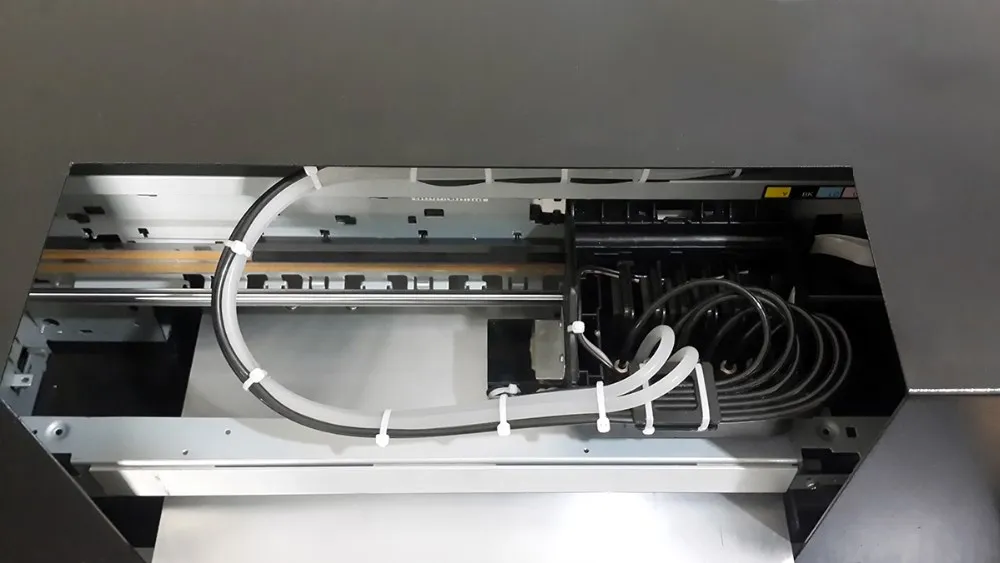

Detailed Images
Model
Jinghua Vocano-Jet flatbed uv printer a3



LED-UV Function
UV lamp system
6 Power degree adjustable system
UV Power
100W
UV lamp life time
50000hours
UV light wavelength
390-400nm
Light power
500mw/w
Cooling type
Water circulation
Control Software
FocusRIP-UV V8.2.3
Repeat printing precision
Overlap small than 0.1mm
Head maintain
Head clean during/after printing, Keep-wet system when idle.
Ink system
ink damper refill system
Max. printing size
A3+: 330mm*500mm
Print head
L1800
Print color
CMYK+WW
Print direction
Unidirection / Bidirection
Print speed
A3(1440dpi)/ 90s
Max. media thickness
17CM
Max. media weight
15KG
Max. printing resolution
5760dpi*1440dpi
Ink volume
150ML
Ink type
UV environmentally ink
Height adjustable
Manual / Automatic
Print head protection
Intellective automatic detect
Working power
110-220V 50-60HZ 75W
Interface
USB2.0 /IEEE1394
System require
Windows XP / Vista/ Win7 / MAC I Linus
Working enviroment
25-30C, 50% Humidity, Dust free
Net weight/Gross weight
65KG/89KG(CBM Weight)
Printer size
89CM*75CM*56CM
Packing size
92CM*78CM*59CM
Our Service

Service:

A. We provide a FocusRip V8.2.3 software to customers which can control the color of printing imageA.
B. We provide 13 month warranty since the delivery date.
C. We provide professional English user manual and installation video go with machine delivery.
D. We provide 2 days online training ,it is free for you.

Printing sample

Vocano-Jet flatbed uv printer a3 for glass, plastic, metal,ceramic, titles, crystal, wood...

Vocano-Jet flatbed uv printer a3 for glass, plastic, metal,ceramic, titles, crystal, wood...

Vocano-Jet flatbed uv printer a3 for glass, plastic, metal,ceramic, titles, crystal, wood...

Vocano-Jet flatbed uv printer a3 for glass, plastic, metal,ceramic, titles, crystal, wood...

Customers visiting

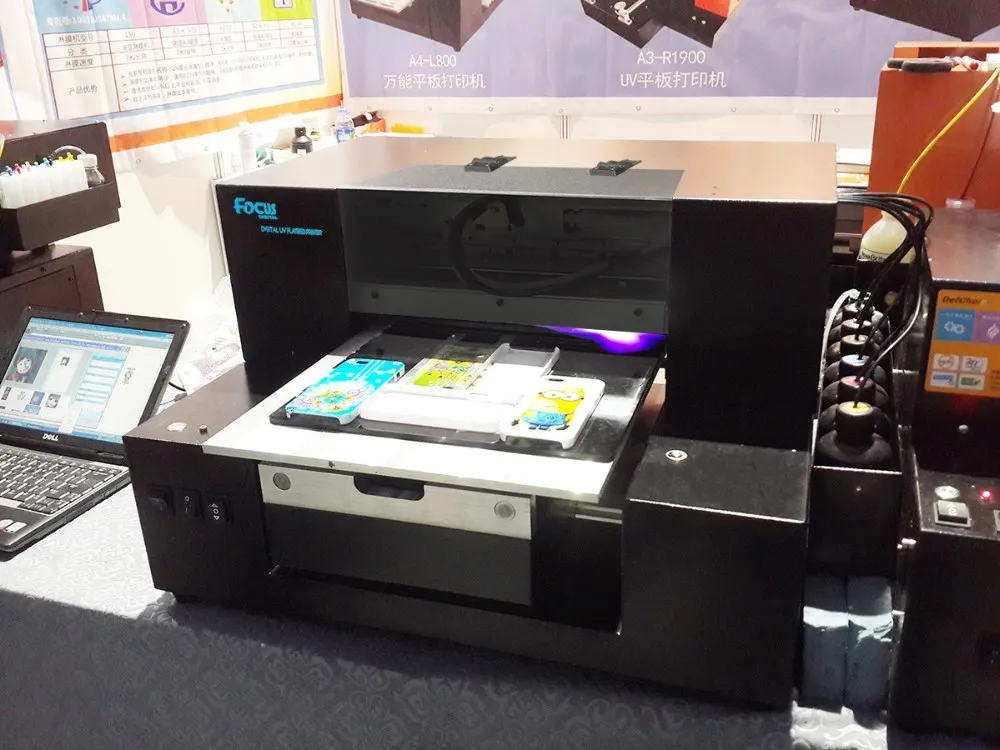

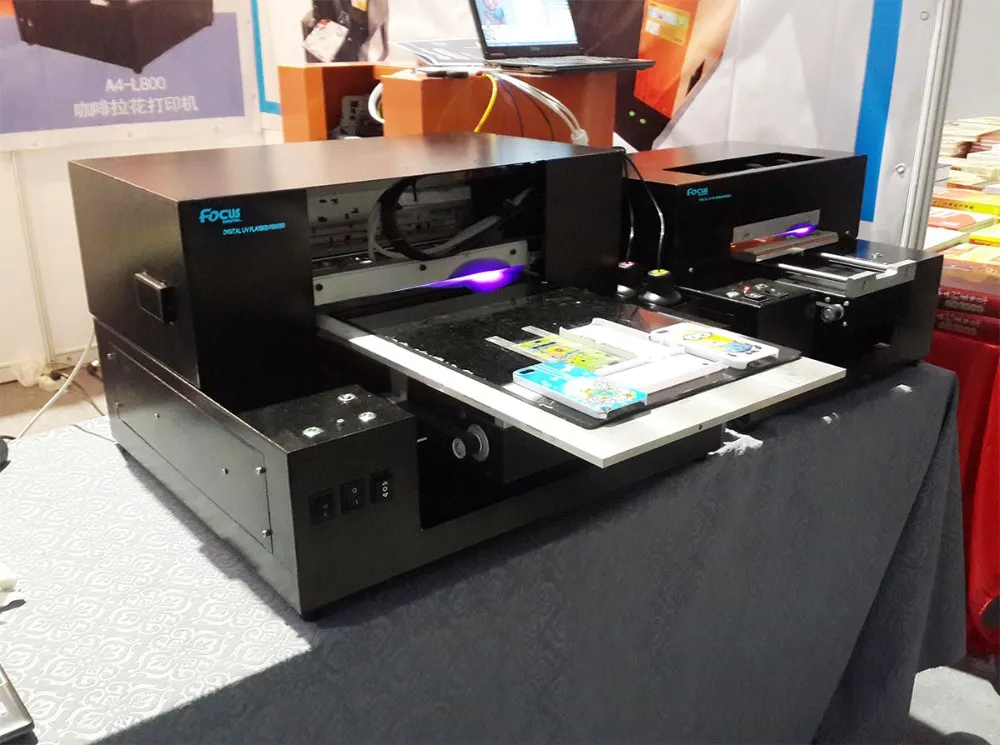

Exhibition
Packaging
Size
92CM*78CM*59CM
Weight
65KG/89KG(CBM Weight)


Packaging Details

1. The normal package is wooden box(Size: L*W*H). If export to european countries,

2.The wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
