New design canvas printing machine information as following:

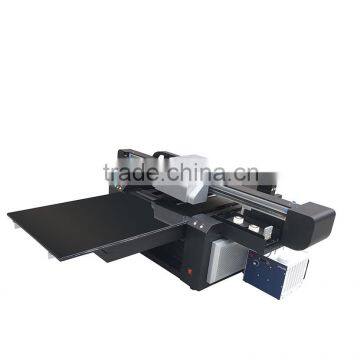

New design digital canvas printing machine belongs to Galaxy-Jet, which is a multi functional LED UV flatbed printer that created by Focus industrial co.,ltd. UV flatbed printer was built with industrial configuration as thicken aluminum profile, water circulation cooling system, 100W automatic detect UV Curing system...16 color and max.2880DPI*1440DPI printing resolution. Flatbed uv printer Can print on bend, cylinder objects, balls and bottles. Output with good 3D texture printing result...
| Model | Galaxy-Jet canvas printing machine |
|
| LED-UV Function | UV lamp system | 6 Power degree adjustable system |
| UV Power | 100W | |
| UV lamp life time | 50000hours | |
| UV light wavelength | 390-400nm | |
| Light power | 500mw/w | |
| Cooling type | Water circulation | |
| Cooling adjustment | Automatic on/off between 25-30c | |
| Control Software | FocusRIP-UV V3.5.0 | |
| Repeat printing precision | Overlap small than 0.1mm | |
| Head maintain | Head clean during/after printing, Keep-wet system when idle. | |
| Ink system | Automatically Ink damper refill system | |
| Max. printing size | A2+: 600mm*900mm | |
| Print head | One or Double DX7 piezo head with 1440 nozzles | |
| Print color | 2*CMYK+WWWW | |
| Print direction | Unidirection / Bidirection | |
| Print speed | A2(1440dpi)/ 120s | |
| Max. media thickness | 120mm | |
| Max. media weight | 15KG | |
| Max. printing resolution | 2880DPI*1440DPI*720DPI*360DPI | |
| Ink volume | 150ML | |
| Ink type | UV environmentally ink | |
| Height adjustable | Manual / Automatic | |
| Print head protection | Intellective automatic detect | |
| Working power | 110-220V 50-60HZ 75W | |
| Interface | USB2.0 /IEEE1394 | |
| System require | Windows XP / Vista/ Win7 / MAC I Linus | |
| Working enviroment | 25-30C, 50% Humidity, Dust free | |
| Net weight/Gross weight | 180KG/200KG | |
| Printer size | 120CM*100CM*79CM | |
| Packing size | 150CM*110CM*89CM | |
Online videodemo of uv flatbed printer: http://youtu.be/lyJm4KXnGmQ
Catalog Download
Catalog download of uv flatbed printer :
Technical Features:
1.New design canvas printing machine has space saving design to let customer can lay machine on a small room. Outlook of the flatbed printer with dust free design. The new design reduces the environmental impact on equipment.
2.Fast printing speed by print on A2 size 600*900mm with full color of canvas printing machine only need 120 seconds.
3.Super table size of canvas printing machine ensure you can print on any media with max. 600*900cm printing area.
4.Thicken aluminium profile made as the keel of plastic bag printing machine price to ensure the machine stable working.
5.Support max. material thickness 120mm. expand more printing area for customer.
6.Modularized design of the flatbed to ensure the fast Focus-Pallet-Add-onfamily exchanging procedure for get a mass production.

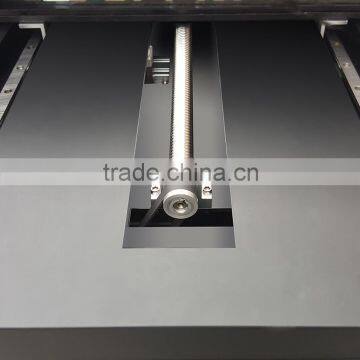

7.The ballscrew move preforward and backward make the flatbed more stable, the prinitng media will not be any shake when prinitng, so that the printing result will be better.Combine with the closed-loop structure circuit design to enhance the stability of thesystem and ensure the flatbed printing with one pass printing precision and repeat printing precision.
8.Intelligent Anti-Scratch-Protectionsystem can detect the media by both sensors to prevent the print head from scratching.
9.2*CMYK+WWWW, 16 color, make the printing speed faster and printing color more vivid, configured with high quality LED UV curing system with 48pieces LED UV lamps, which make ink pipe and uv system cooling faster, and the UV ink dry immediately, so the texture effect will be made.
10. Automatical ink refill system and flat wire connets with printer head make printing more efficient.
11. Breathe ink damper connect with bulk UV bottlet through black ink pipe can make prinitng process simple, there is no need to change the ibk bottle again and again.
Beside, the breathe ink damper can also reduce the oppotunity of printer head clogging
12. Easy operation panel of canvas printing machine can control the flatbed for Backward, Foward, Up, Down, Pause/Stop, Online/Offline and ink changing, to let you operate the machine more convinence.
And the ink button CMYK can control the ink quantity when printing.
13. The original mainboard focus all the wire and refill system together, control the printer more flexible.
14. 16 color customize channel of id card printer can get a high density brilliant printing results both on dark and light media with White ink and color ink printing.
15. Canvas printing machine gets Unique 3D texture output option available.
