Wonderful Pangoo-Jet flatbed uv printer a3 with economic price
Pangoo-Jet flatbed uv printer is a multi functional LED UV flatbed printer that created by Focus industrial co.,ltd. It was built with
industrial configuration as thicken aluminum profile, water cyculation cooling system, 100W automatic detect UV Curing
system... 8 color and max. 5760 dpi printing resolution. Can print on bend, cylinder objects, balls and bottles. Output with
good 3D texture printing result... please visit for more information.
Specification
| Model | Pangoo-Jet UV Printer | |
| LED-UV Function | UV lamp system | 6 Power degree adjustable system |
| UV Power | 100W | |
| UV lamp life time | 50000hours | |
| UV light wavelength | 390-400nm | |
| Light power | 500mw/w | |
| Cooling type | Water circulation | |
| Cooling adjustment | Automatic on/off between 25-30c | |
| Control Software | FocusRIP-UV V3.5.0 | |
| Repeat printing precision | Overlap small than 0.1mm | |
| Head maintain | Head clean during/after printing, Keep-wet system when idle. | |
| Ink system | Ink damper refill system | |
| Max. printing size | A3+: 330mm*600mm | |
| Print head | DX5 piezo head with 1440 nozzles | |
| Print color | CMYK+WWWW | |
| Print direction | Unidirection / Bidirection | |
| Print speed | A3(1440dpi)/ 90s | |
| Max. media thickness | 17CM | |
| Max. media weight | 15KG | |
| Max. printing resolution | 5760dpi*1440dpi | |
| Ink volume | 150ML | |
| Ink type | UV environmentally ink | |
| Height adjustable | Manual / Automatic | |
| Print head protection | Intellective automatic detect | |
| Working power | 110-220V 50-60HZ 75W | |
| Interface | USB2.0 /IEEE1394 | |
| System require | Windows XP / Vista/ Win7 / MAC I Linus | |
| Working enviroment | 25-30C, 50% Humidity, Dust free | |
| Net weight/Gross weight | 90KG/110KG | |
| Printer size | 89CM*75CM*56CM | |
| Packing size | 103CM*98CM*65CM | |
Video Demoonline video demo: http://youtu.be/lyJm4KXnGmQ
Technical features
1. Space saving design to let customer can lay machine on a small room. Outlook of the flatbed printer with dust free design. The new design reduces the environmental impact on equipment.
2. Fast printing speed by print on A3size with full color only need 64 seconds.
3. Super table size ensure you can print on any media with max. 33*60cm printing area.

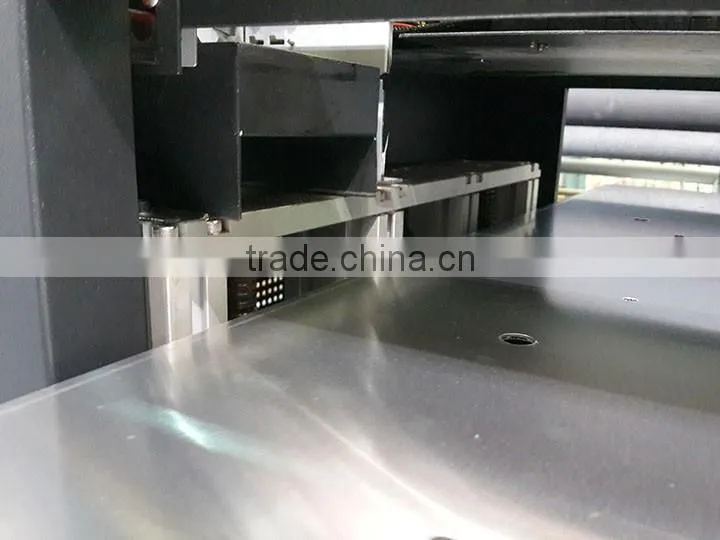

4. Thicken aluminium profile made as the keel of the machine to ensure the machine stable working.
5. Support max. material thickness 17cm. expand more printing area for customer.

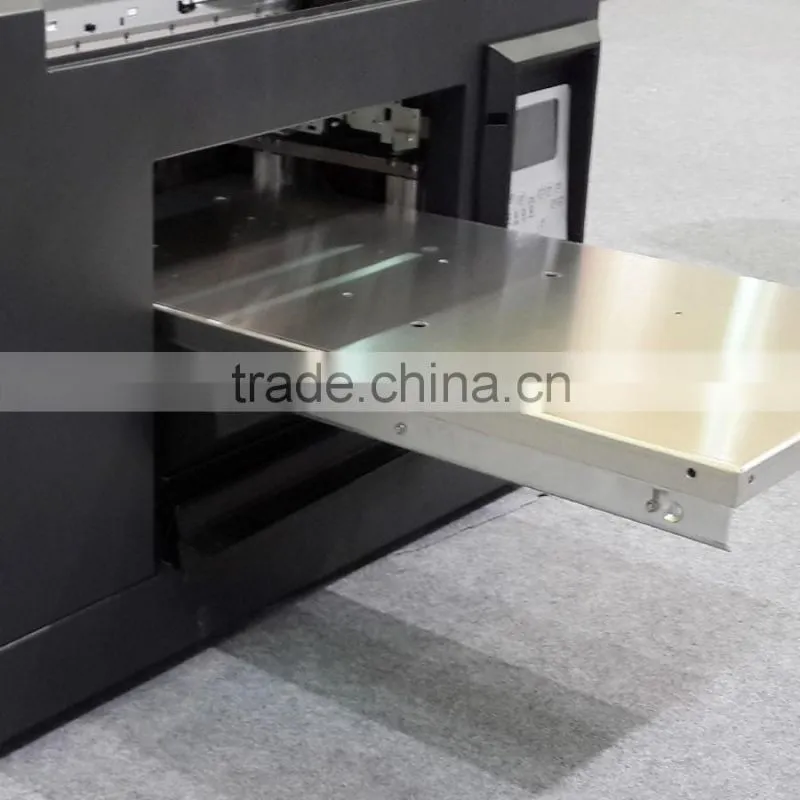

6. Modularized design of the flatbed to ensure the fast Focus-Pallet-Add-onfamily exchanging procedure for get a mass production.

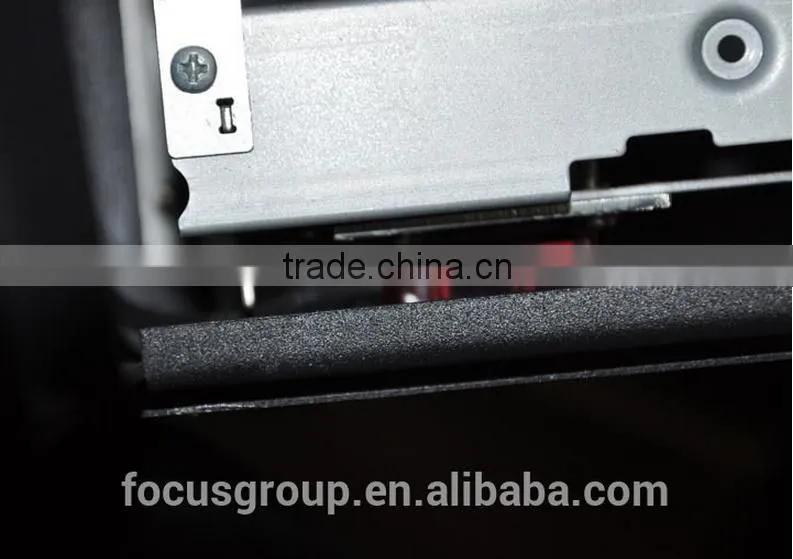

7. Intelligent Anti-Scratch-Protectionsystem can detect the media by both red ray sensors to prevent the print head from scratching.

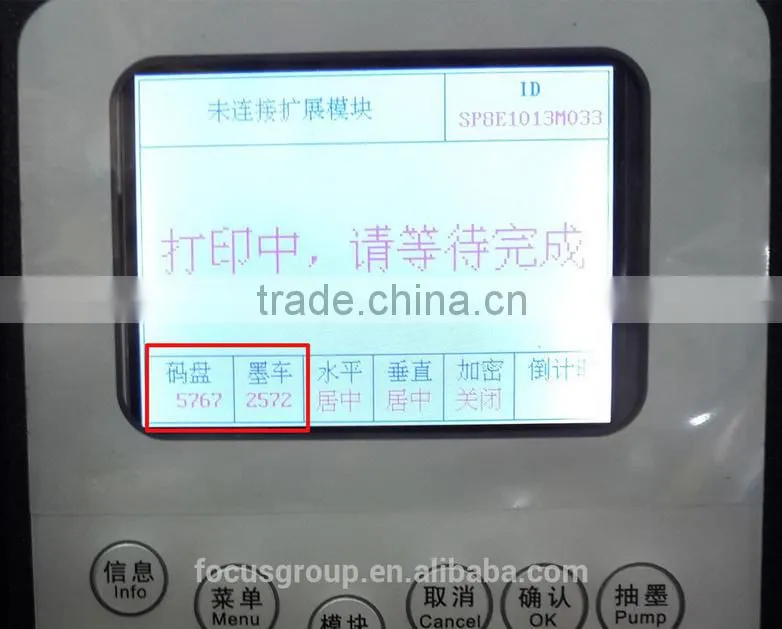

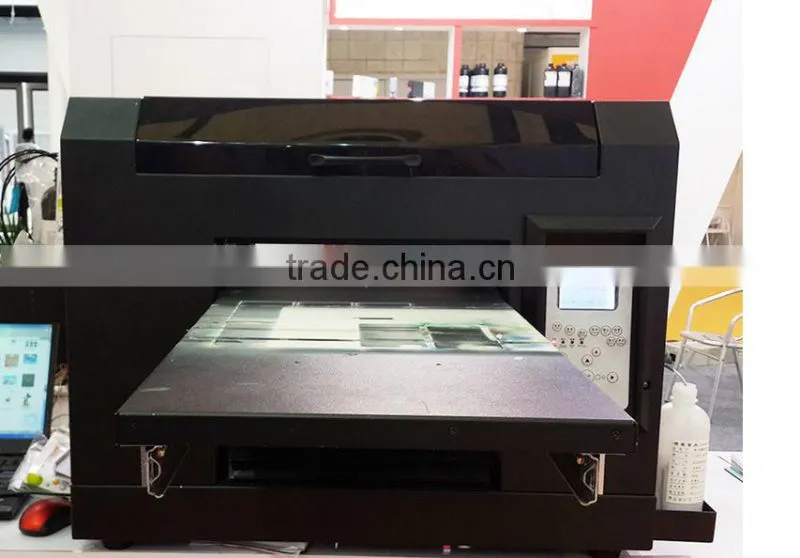

8. Easy operation panel can control the flatbed for Backward, Foward, Up, Down, Pause/Stop, Online/Offline and ink changing, to
let you operate the machine more convinence
9. Patented Focus APCDS system can automatic detect the X(carriage), Y(flatbed) motion pulse and send back the real motion
data to mainboard for Interpolating, combine wiht the closed-loop structure circuit design to enhance the stability of the system
and ensure the flatbed printing with one pass printing precision and repeat printing precision.

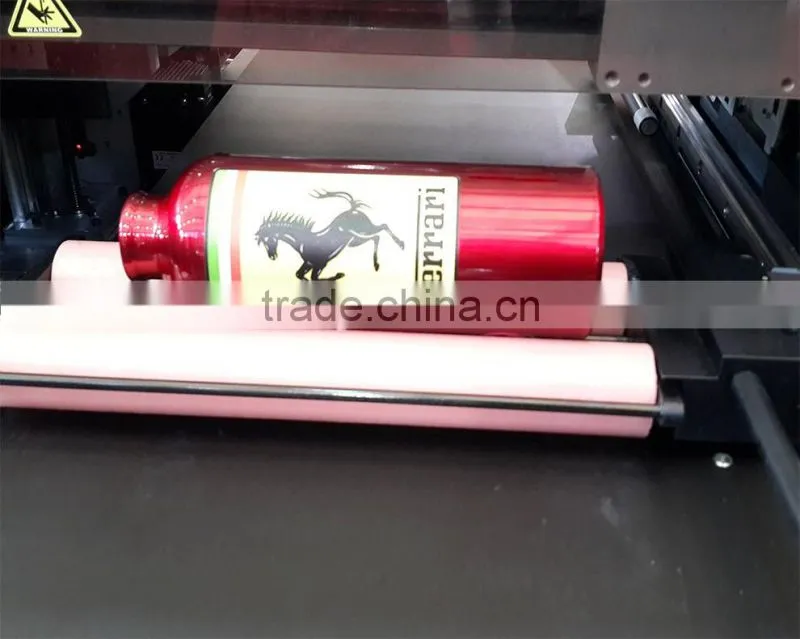

10. Bend surface, Cylinder objects and balls also can be printed by focus patented Rotary-Add-On family easily.

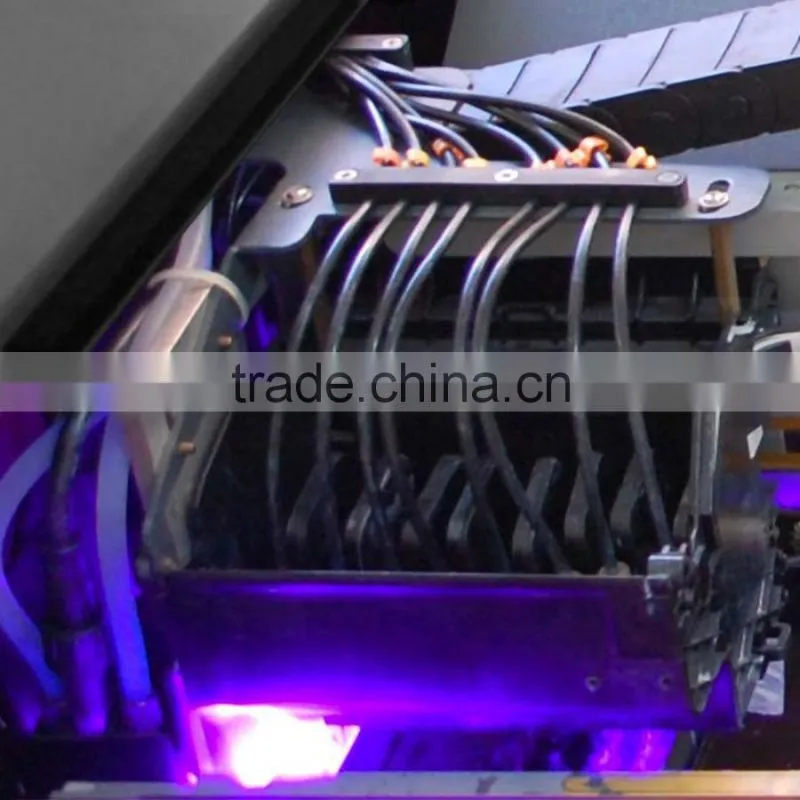

11. High quality LED UV curing system with 48pieces LED UV lamps, can get to the working power during 100W~200W immediately without waiting, also the LED light cost less power and harmless for human health. Combine with the high effective water circulation cooling system to ensure the stable printing.
12. 8 color customize channel can get a high density brilliant printing results both on dark and light media with White ink and color ink printing.
13. Unique 3D texture output option available print by our Pangoo-Jet UV Printer
...

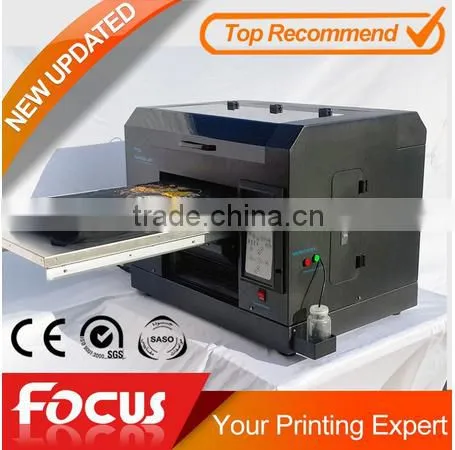

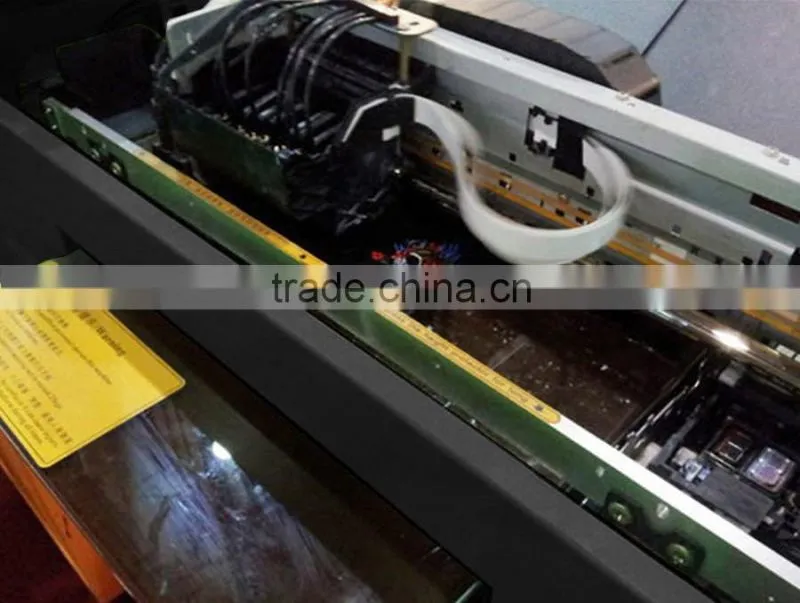

Pangoo-Jet UV Printer

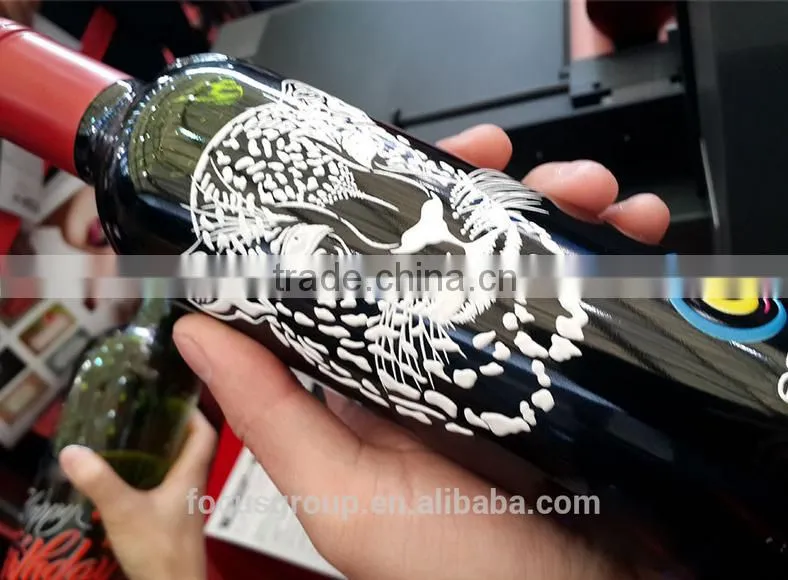

Printing Sample
Please visit for more printing sample.
