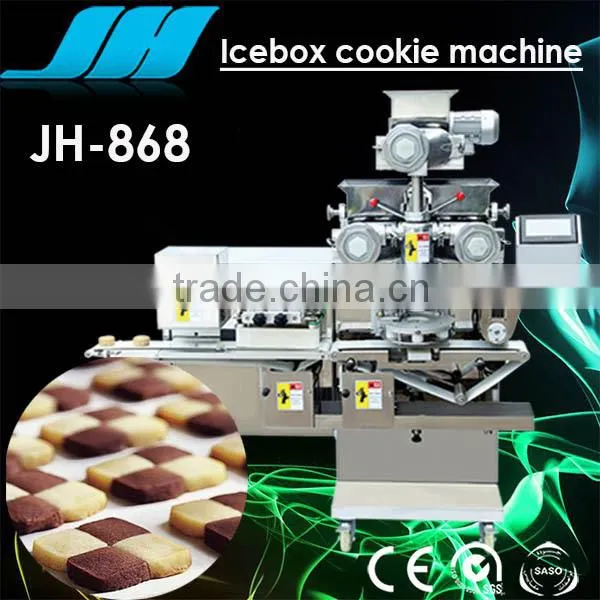

JH868 Automatic black and white Icebox cookie machine

Specifications

1.Double filling encrusting
2.Encrust forming and stamping 3in1
3.Industrial configuration
4.High speed
5.Multi functional

Icebox cookies are cookies which are made from a dough which has been refrigerated or frozen, typically in a log shape. Although many people may associate these cookies with logs of frozen dough in supermarkets, there are a number of home icebox cookie recipes as well. The freezing or cooling makes the dough stiffer, and ideally suited to slicing into thin rounds for baking. There are numerous ways to make icebox cookies, and if you want unusually patterned cookies like pinwheels and checkerboard cookies, a refrigerated dough recipe is the way to go.



JH-868 is a multi functional double filling encrusting machine with stamping and forming function together all in one,  with small size but more powerful,  join all the parameter setting together to one touch screen, easy to operate and maintain.



Double filling Automatic black and white Icebox cookie machine







Demo video:  http://youtu.be/DEATyzlfaZ4



Technical Feature



1. Maximum capacity for small products is 135 pieces per minute
The JH-868 has production speeds of up to 1.5 times faster than other competitor's model as it is combine the encrusting, forming and stamping in one machine.



2. Combine the encrusting, forming and stamping function together to save the room and make it more easy to operate and maintain. also can improve the production obviously.



3. Suport to load three different kind of stuffings, his is best suited for dry materials such as whipped cream.The screw and a compact flow controller gently fill the material in the center.There is no damage to the material since you can easily adjust the feed rate of the screw and flow controller.Pasty material such as jam, custard cream and even solids such as chopped chestnuts can be used to make your individual product! Liquids such as sauces can also be used!



4. With thicken telfron coated food chanel coating, can prevent the food stick inside the food chanel, more effective and easy to clean.



5. Shape is more uniform for stick products
Since you can direct the detailed setting of the shutter from the control panel, you can make adjustment of the machine during production.  combain with Jinghua patented 9pcs circular forming knife. can assure the encrusted food with equal shape and weight.



6. Use 5pcs USA top brand EMERSON fire frequency converter, Korea LG servo motor and PLC controller to guarantee the machine stable working and more effective production.



5. All detect sensor are made in Japan OMRON brand, The 0.1ms fast detect speed assure the high precision position.



6. More gentle extrusion for materials
Extrusion is much smoother than before. For example, products such as Arancini, individual grain of rice remains intact, or for Chocolate Chip Cookies, the chocolate chips will not be crushed or misshaped.

1) Confectionery Chocolate Chip Cookies
Production JH868 can produce Chocolate Chip Cookies up to 5,800 pcs./h with the weight remaining constant. It produces cookies without crushing the chocolate





2) Prepared Foods  Arancini Production



3) Meat with Egg Production
As expected, JH-868 is ideal for meat products. The main body is easily washable and stainless steel parts are available for sanitary purposes.



4) Scotch Egg Production
By using options such as the Solid Feeder, an whole egg can be encrusted into ground meat for products such as Scotch Eggs. Furthermore, solid material can be encrusted with two types of ingredients.



5) Meat Loaf Production
Intermittent encrusting function produces filled bar shaped products. You can get various lengths for products by the wide intermittent range of 0-99 seconds.



6) Fermented Dough Production

Filled Buns Production,  JH868 is also great for elastic bread dough. High quality products can be produced using the new agitator that generates less heat.



7) Filled Focaccia Production
Maximum product weight of JH-868 is 300g. A large Filled Focaccia can be produced thanks to it's high performance.



8) Open Top Pizza Production
By using the Open Top Shutter, the surface of the product remains visible. You can produce Open Top Pizzas while maintaining the natural texture of the ingredients.



9) Bread Stick Production
Production of yeast raised bar shaped products, finger foods such as bread sticks, and even pretzels can be easily made.



10) Steamed Chinese Meat Bun Production
Production of Chinese Dim Sum such as Steamed Meat Buns, Small Steamed Buns and Crystal Dumpling can be produced without any difficulty by using the Twist Top Shutter Option.



And More!
1.There is less left over filling.
2.Mounting and dismounting of parts is easier.
3.10% less and 30% lighter parts compared to the former model.
4.Easier washing of parts.
5.Color touch screen control panel for fine tuning of tuning and adjustment.
6.Even better product shape and weight accuracy.

...



Specification:



Capacity	20—135pcs/min
Product weight range	20—300g/pcs
Crust&filling ratio	2:8—8:2
Power supply	110-220V 50-60hz
Power consume	1.7 kw
Weight	340 kg
Machine size	1.8x1x1.64(m)
Packing size	1.0x1.58x1.7m=2.6CBM



Free parts:



Motion belt  3meter	1pcs
sealing ring	1 suit   8pcs
fuse	2pcs
Wrench tools	1suit
Maintenace tools	1suit



Food that can be produced by JH-868 encrusting machine:



1. Food with two fillings:

Whipped Cream Daifuku ioe, Pasty material such as jam, custard cream and even solids such as chopped chestnuts, bean paste , manju dough or cookie dough, jam and custard cream, Jam-filled creamy ganache...



2. Confectionery food:



Soft Filling cookie,  Marguerite Cookie, Filled twist cookie, Bar Shaped cookie, Cafe Latte cookie, Mandelhomchen, Apple Strudel, Apple Pie, Leb Kuchen, Praline Marzipan, Flower Marzipan, Star Shaped Cookie, Christmas Tree cookie, Chocolate Tart, Conversation, Filled Donuts, Fruit Basket, Brownie with filling, Chinese Galette, Filled Biscuit, Amaretto, Rumkugeln, Ganashe Ball, Soft Cake Pie, Filled Churros, Moon cake, Sesame ball, Peach Bun, Ang Guh Kueh, Sesame Tang-Yuan, Maamoul,  Rocmia, Thai Moji, Daifuku Mochi, Chocolate Mochi...



3. Bread:

Calzone, Filled Focaccia, Stuffed  Pizza, Meat Bun, Piroschki, Bread Stick, Striezel, Germknoedel, Birnenbrot, Mini Stollen, Filled Ring Bread, Cha-shao-bao, Gurry Bun, Boygel, Edinburgh Cake, Pancake, Filled Brioche, Filled Buns, Open top Pizza, Filled Donut, Filled Melon Bun, Concha, Chinese Meat Bun, Pan de Hueve...



4. Prepared products:

Filled Hamburg, Arancini, Filled Gnocchi, Chicken Cordon Bleu, Coxinha, Kubba, Pate, Kartoffelknoedel, Semmelknoedel Filled Quenelle, Knish, Pirogie, Tamales, Empanadas, Pelmeni, Scotch Egg, Pan Fried Beef Bun, Crystal Dumplin, Kuefteta, Cepelinal, Meat Pie, Savory Beans, Gratin Pie, Chickin Kiev...
