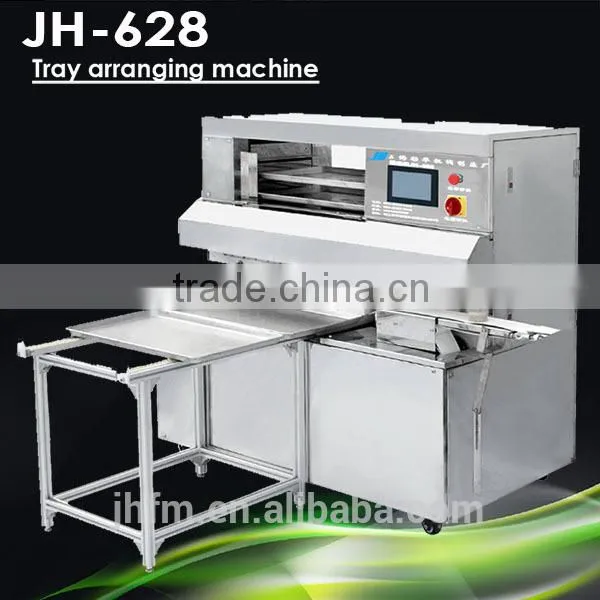

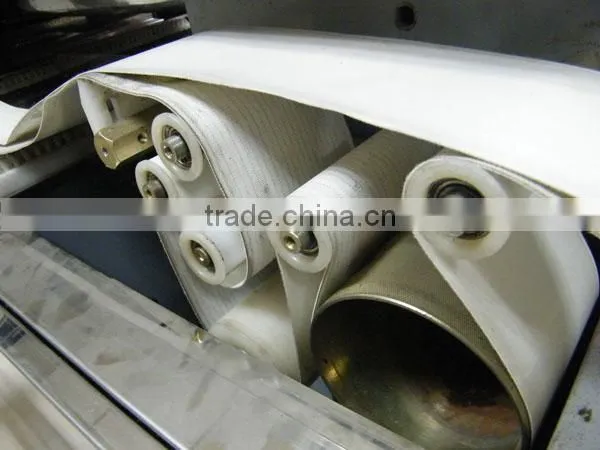

JH-628 High speed Baking Tray arraning machine

Specifications

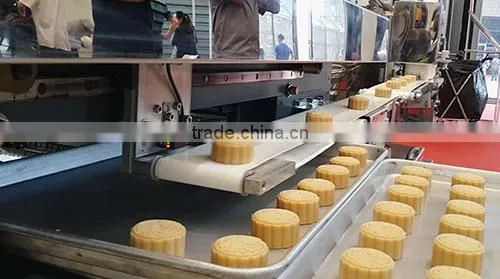

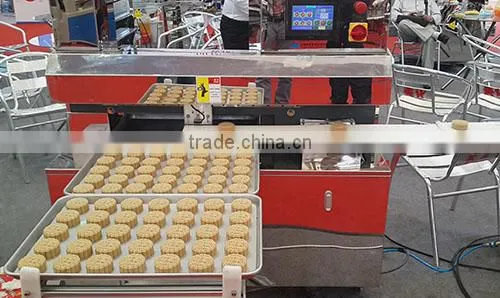

JH-628 automatic tray arranging machine is build for automatic food processing line using, high speed and reliable.



JH-628 automatic tray arranging machine is build for automatic food processing line using, with high configuration as EMERSON frequency converter, LG servo motor, THK rail, OMRON detect sensor...  PLC with Touch screen let operator easy to set all parameter as arrange X/Y combination, belt speed, product size, X,Y gap, formula saving, Production canculate...



Baking Tray Arranging Machine



Online video demo: http://youtu.be/ZTVsRNTw6xU



Technical Features:

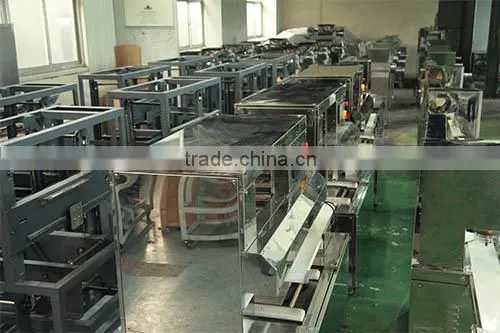

1.We are real manufacturer of the tray arraning machine, hundreds of stock assure you the first delivery.

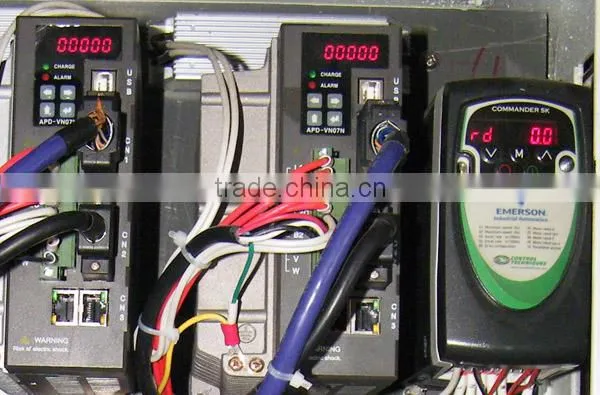

2. Industrial High configuration built, use the USA brand Emerson frequency converter go with Korea LG servo motor to drive the machine get max. speed 150pcs/Min under stable running.



3. Japanese THK rail guide the product delivery motion high mute and arrange the cake drop with high precision position.



4. Imported OMRON brand sensor can get max. detect speed 0.1ms, to ensure the high speed arranging.

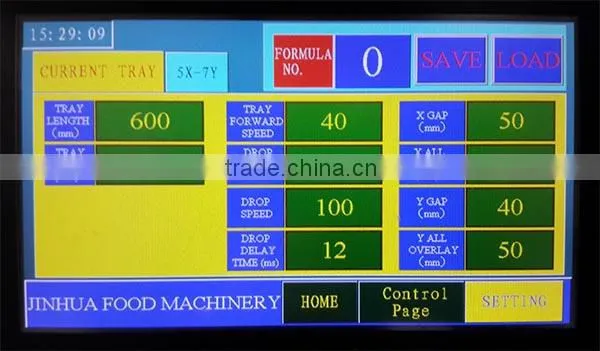

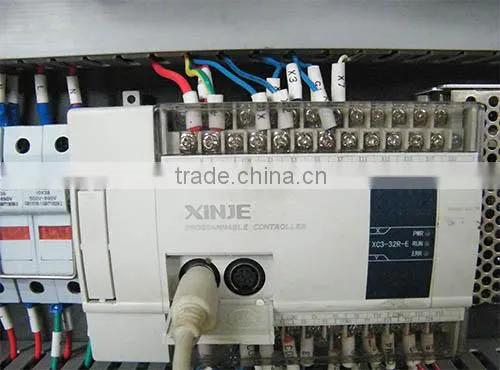

5. Powerful PLC go with Touch screen,  easy to operate as set/save parameters, production canculation, X/Y axis arranging, speed controlling...

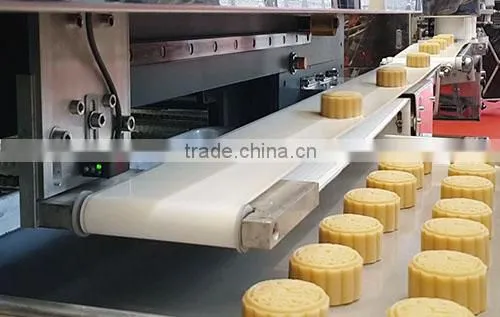

6. Imported food safety anti-stick belt make the motion more effective and arranged product with equal shape.





Specification:



Capacity	10—135pcs/min
Product size	2-9cm
Max. Tray imput	9pcs Tray automatic cycling
Power supply	110-220V 50-60hz
Power consume	1. 7kw
Weight	330 kg
Machine size	1.35x1.35x0.85(Meter)
Packing size	1.55x1.55x1.95(Meter)



Free parts:



Motion belt  3meter	1pcs
sealing ring	1 suit   8pcs
fuse	2pcs
Wrench tools	1suit
Maintenace tools	1suit
