Specification
| Focus Polar-Jet fast speed top sale industrial digital tshirt printing machine | ||
| Print head |
Newest Advanced MicroPiezo Print Head Variable Size Ink Droplet Technology — Smallest droplet size of 3.5 picoliters |
|
| Printing speed (40*55cm area) | 720*360dpi | 200pcs shirt / Hour |
| 720*720dpi | 160pcs shirt / Hour | |
| 720*1440dpi | 100pcs shirt/ Hour | |
| 1440*1440dpi | 50pcs shirt/ Hour | |
| Color channel setting | Optional choose | |
| Color management | ICC curve | |
| Max. Printing size | 1118mm*500mm | |
| Pallet size | 520*500mm standard shirt pallet*2pcs | |
| Printing Direction | Uidirection / Bidirection | |
| Ink dot jet frequency | 1Hz-2000Hz optional | |
| Carriage drive type | DC servo motor | |
| Table drive type | AC servo motor | |
| Guide type | Linear rail | |
| Ink dot type | 1bits, 2bits, dark, halfton, real time | |
| Fire type type | Rand, fog, wave, 2D | |
| Head maintainance type | Wet-cap system / Auto flash system | |
| Control type | Computer Intelligent & PLC controller | |
| Printing resolution |
720*360dpi / 720*540dpi/ 720*720dpi/ 720*1080dpi 720*1440dpi / 720*2160dpi/ 720*2880dopi |
|
| Color Ink Tank Volume | 700ml cartridge * 4pcs | |
| White ink tank volume | 700ml Cartridge supply | |
| Ink type | DTG ink/ sublimation ink/ reactive ink/ discharge ink/ eco solvent ink/ CTS ink. | |
| Ink process | Filter system+white ink shaking system+white ink circulation system | |
| Printhead Protection | Intelligent Self Protect System | |
| Power | 110-220V 50-60HZ 250W | |
| Printing Interface | USB2.0/ USB3.0 | |
| Operation System | Win2000/ WinXP/.Win7 / Win8 | |
| Working Environment | 50%humidity, 21-29℃ | |
| Printer Size | L1608mm*W1400mm*H1128mm | |
| Shipping Size | L1700mm*W1450mm*H1200mm | |
| Printer N.Weight/G.Weight | 210KG/255KG | |
Catalog download t-shirt printing machine: /download/a4dg665jxhwlbua/Focus_Polar-jet_industrial_DTG_printer_manual.rar
Online video demo t-shirt printing machine: http://youtu.be/44AOUodn0v4
Technical features
1. New revolutionary printing technology Polar-Jet digital tshirt printing machine was built with newest T7000 printing technology, Mounted with newest advanced piezzo print head. Variable size ink droplet technology, Smallest drop size 3.5piccolitters to get a grayscale printing result, 720 nozzle per color X 5 color, total 3600 nozzle, Maximum printing resolution 2880*1440dpi.
2. New ink supply system to anti-clog of print head.Configure with negative air supply system to the damper and print head kit to solve out the head clog problem. Can get a obvious effective for white ink printing especially and high speed printing. The old version model with DX5 print head as R1900, 4880, 7880... all are suppy the ink to the print head by syphonage way, so the white ink will be easy to clog as longtime settling. But with the negotive pressure system, the ink inside the damper and print head will be absorbed by the negative pressure to keep a certain ink level without change. so it can prevent the ink clog, ink dripping and ink Oblique jet effectively.
3. New designed keep wet cap station The new designed cap station divide each cap for each color line individual, Before printer all use one cap for all color or half color, so it will cause the ink get mixed inside the cap station during keep wet at night. so the color near white head will be easy to be clogged, so the new cap station is designed specially for prevent the ink mixture and head clog.
4. No chips reset require Focus invented chips reset system let you forget the problems of reset the ink cartridge chips, chips can not be detected... also 700ml big ink tank can reduce you job of refilling.
5. TCP/IP Ethernet cable interface Print via TCP/IP Ethernet cable let the data processing faster than traditional USB 2.0/3.0 way
6. Supported by Wasatch professional Image raster RIP softwareWasatch SoftRIP helps users achieve superior color accuracy, high production speed, variable data customization, spot matching and cost savings with direct-to-garment inkjet printers, support ICC revise,ICC maker, Custom ink channel setting. Printing to dark garments has never been easier! With Wasatch's new Auto-Generation features selected, white ink will automatically be printed as an underlay of your image. Use the Wasatch Tracer to create a mask around your image to easily eliminate any image data that you don't want printed. This is ideal for images with background colors that are not a solid fill.This will save on ink consumption and keep the "hand" of your printed shirt light.

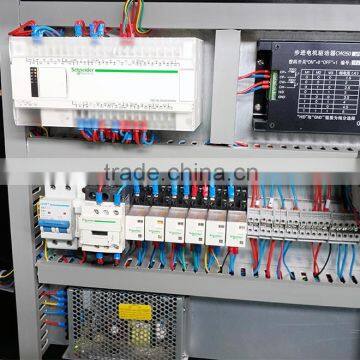

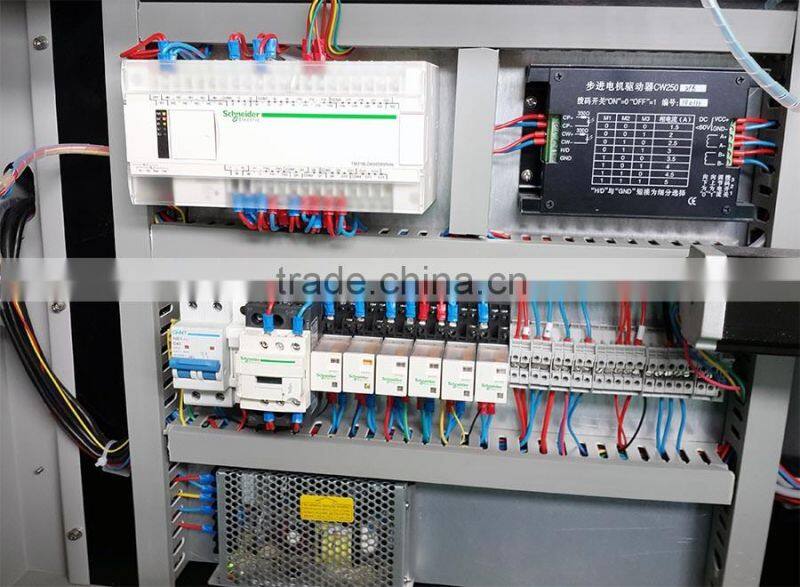

7. Intellective PLC control system Polar-Jet digital tshirt printing machine use the intellective French Scheider brand PLC controller to control all motion signal as forward/backward, online/offline to ensure the reliable working.
8. French Schneider brand control panel The Scheider brand control panel make you opreate the machine easier and Humanity .
9. Mounted with Fuji 750W servo motor The Fuji brand 750W servo motor was mounted at Polar-jet for drive the flatbed/ pallet backward/forward motion. Strong powerful and the open loop design make sure the flatbed motion with high precision.
10. Automatic media thickness adjustment Polar-Jet digital tshirt printing machine support maximum 80cm media thickness, just input the media thickness number to the control panel.
11. Duall ball screw & linear rail for Z axis motion Ball screw and linear rail were mounted at both side of the flatbed to guide the top printer move at Z axis with high precision, ensure the printing
table water level at any positon to get a equal printing quality.
12. Dual ball screw and linear rial for Y axis motion Printing table motion precision will effect the printing result directly, especially for print on dark underbase, as the rough motion precision will
cause the printing image overlap. Polar-jet mountedwith the Japan NSK brand ball screw combine with THk brand rail at both side for a high motion precision with error less
than 0.05mm repeatedly.
13. Easy-changing pallet
Polar-Jet digital tshirt printing machine support dual T-shirt printing pallet with size 40cm*55cm for each and big pallet with maximum printing size100*70CM.
Warranty
1.We provide 13month warranty since the shippin date.
2.We have completely english instruction video and manual for you.
3.We provide 2 days free online training.
4. Engineer fly to your site for final repair if needed.
Packaging & Shipping
Polar-Jet fast speed top sale industrial digital tshirt printing
