Home > Consumer Electronics > Water Heater & Components > Solar Water Heater > GMO Solar Water Heater- 150L-300L Solar Water Heater

GMO Solar Water Heater- 150L-300L Solar Water Heater

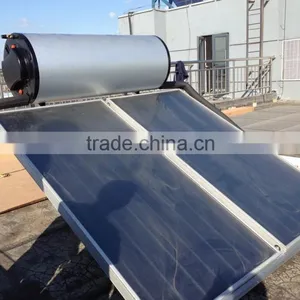

GMO Solar Water Heater- 150L-300L Solar Water Heater thumbnail-3

GMO Solar Water Heater- 150L-300L Solar Water Heater photo-1

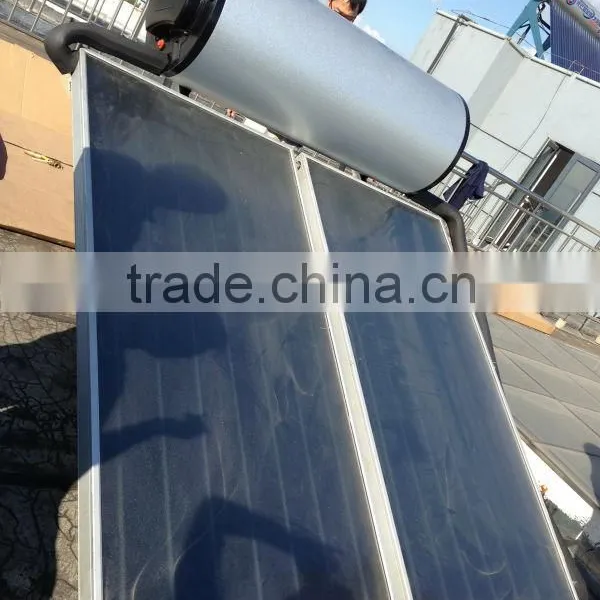

GMO Solar Water Heater- 150L-300L Solar Water Heater photo-2

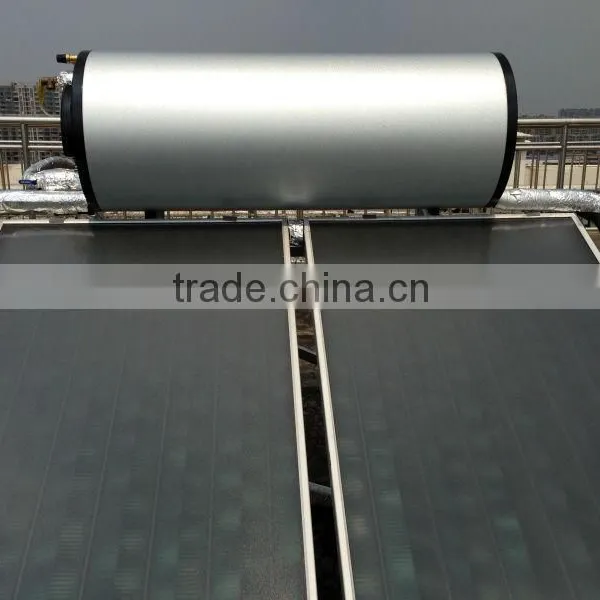

GMO Solar Water Heater- 150L-300L Solar Water Heater photo-3

US$ 600 - 800 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Flat-Plate

Pressure:

Pressurized

Circulation Type:

Indirect / Closed Loop (Active)

Contact Supplier Request Quote Chat Now

Jiangsu GMO Hi-Tech Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Flat-Plate

Pressure Pressurized

Circulation Type Indirect / Closed Loop (Active)

Heating System Thermosyphon (Passive)

Connection Type Direct-Plug

Installation Wall Mounted

Housing Material Other

Certification CSA, Other, UL, CSA, RoHS, UL

Capacity 300

Place of Origin Jiangsu, China

Brand Name GMO

Model Number 300-close

GMO Solar Water Heater

Close Circuit System Description

A Closed Circuit System is a system where two water circuits are contained within the solar water heater. The first circut is the household water storage tank which stores the heated household water used within the household. The second circit is the solar collecor circuit which is fully sealed and mechanically separated from the household water circuit by a heat exchanger system. The fluid within the solar collector circuit is a mixture of household water and food grade propylene glycol. This fluid mix transfers solar energy from the solar collector s to the heater exchanger system and prevents damage to the solar collectors should the ambient temperature fall below freezing point. This system type can be used in any climatic location and with any water quality considered suitable for human consumption.

Technical Data

Type	Capacity	Water Tank Diameter	Water Tank Length	Collector Number	Maximum Working Pressure	Normal Working Pressure	Heat Element Power	Thermostat Default Temperature	T/P Valve	Pressure Valve
GMO -150(Close circuit SWH)	150L	555mm	1200mm	1	1Mpa	0.7Mpa	220V/2.4kw	65°C	99°C/1Mpa	0.1Mpa
GMO -200(Close circuit SWH)	200L	555mm	1540mm	2	1Mpa	0.7Mpa	220V/2.4kw	65°C	99°C/1Mpa	0.1Mpa
GMO -250(Close circuit SWH)	250L	555mm	1870mm	2	1Mpa	0.7Mpa	220V/2.4kw	65°C	99°C/1Mpa	0.1Mpa
GMO -300(Close circuit SWH)	300L	555mm	2104mm	2 or 3	1Mpa	0.7Mpa	220V/3.6kw	65°C	99°C/1Mpa	0.1Mpa
