DIN3202 F1 PN16 Ductile iron flanged Y type Strainer DN65
Description
it is necessary equipment for pipeline systems, generally installed in the entrance of pressure-relief valve, pressure-release valve, water-positioner valve or other equipments, to protect the valves and equipments by clearing the impurity in medium. This strainer has feather of advanced structure, little resistance, efficient pollution-discharging, can be used in water, oil and gas, and generally mesh amount is 18~30 for water passing, 40~480 for gas passing, customization will be accepted
Design Standard:
DIN3352
Face to Face Dimension:
DIN3202 F1
Working Pressure:
PN10,PN16,PN25
Structure and Main materials:
Body Materials:Ductile iron:GGG50
Bonnet:Ductile iron(GGG50)
Sreeen:SS304
Plug:SS304
Gasket:EPDM or NBR
Coating:blue powder epoxy coating
Size Available:
DN50 to DN700 mm

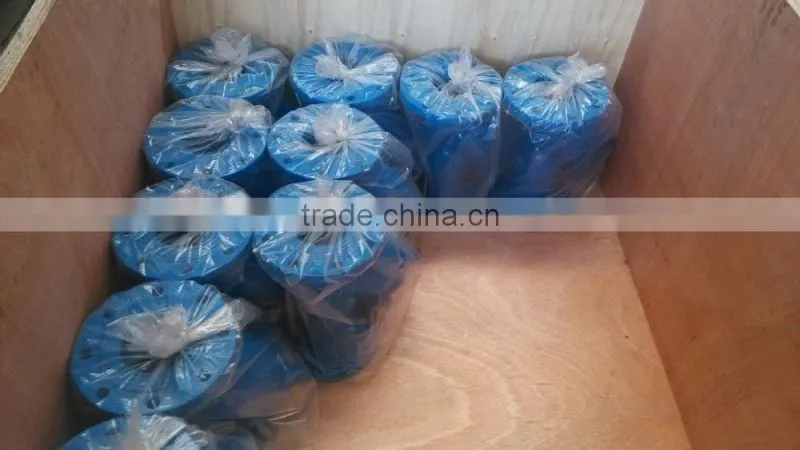

Packing:
Polywood Container
Quanzhou Zhixin Valve Manufacturing CO.,Ltd, is a pressessional manufacturer of ductile iron industrial valves for water in Luncang,Nan'an,Fujian,China.
Our valve series are:
Resilient seated flanged and socketted gate valve DIN3352 F4,F5,BS5163,AWWA C509,C515
Check valve BS5153,DIN3202 F6,
Flanged double eccentric/centric butterfly valve EN593 IS5752 S13 and S14,
Single orifice and double orifice air valve,
Y strainer DIN3202 F1,ANSI,JIS,BS.
Foot Valve
