Help CenterDI DIN3202 F1 Y Strainer DN400 PN16
Related Products
-
DI DIN3202 F1 Y Strainer DN400 PN25US$ 1,100 - 1,500MOQ: 1 Piece -
DI DIN3202 F1 Y Strainer DN600 PN16US$ 500 - 1,500MOQ: 1 Piece
-
DI DIN3202 F1 Y Strainer DN700 PN16US$ 500 - 1,800MOQ: 1 Piece
-
DI DIN3202 F1 Y Strainer DN700 PN25US$ 1,000 - 1,800MOQ: 1 Piece
-
ANSI Flanged Y Strainer 12 Inch 125LBUS$ 14 - 500MOQ: 1 Set

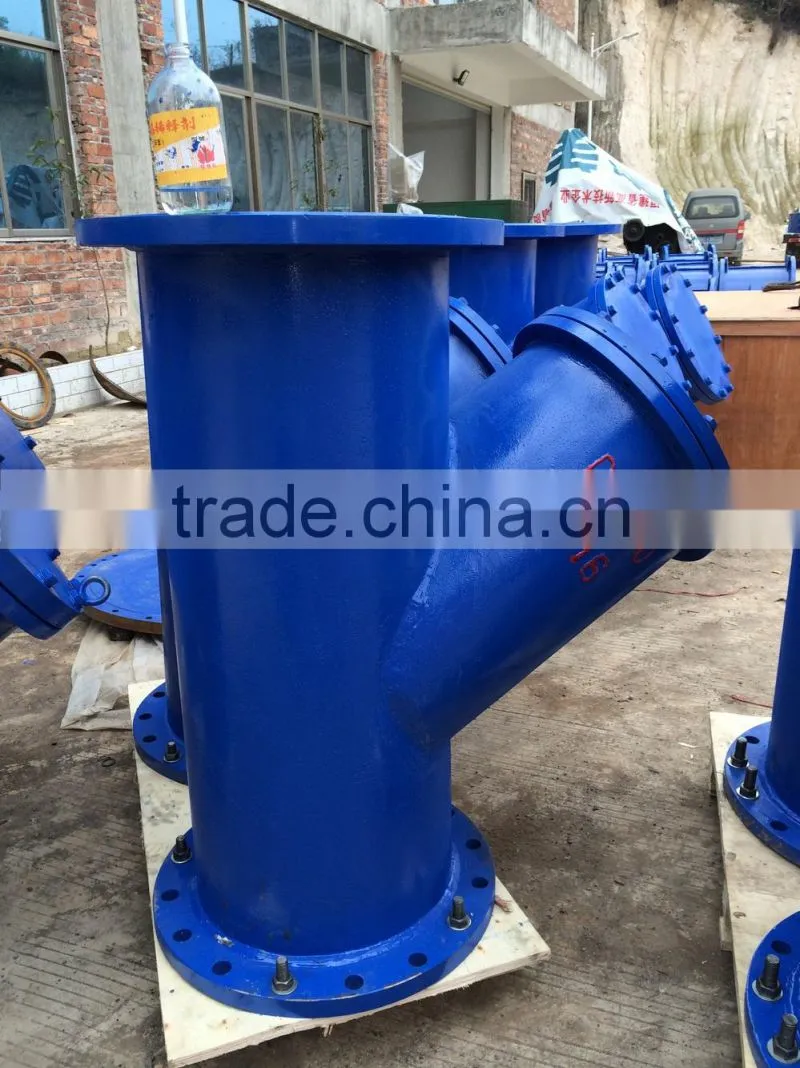

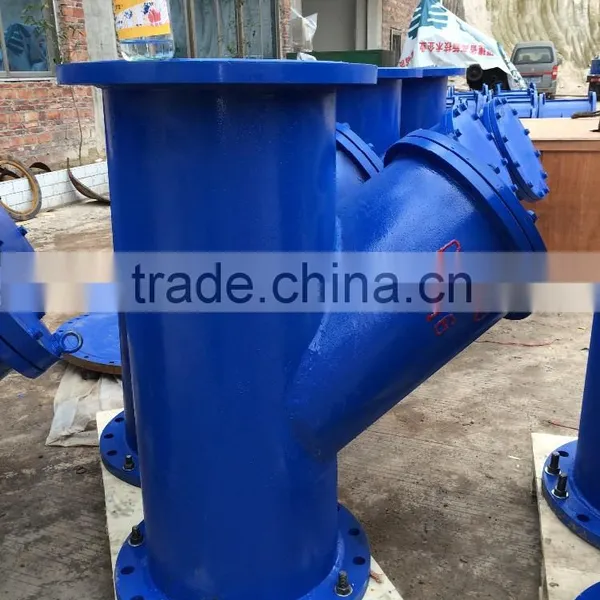

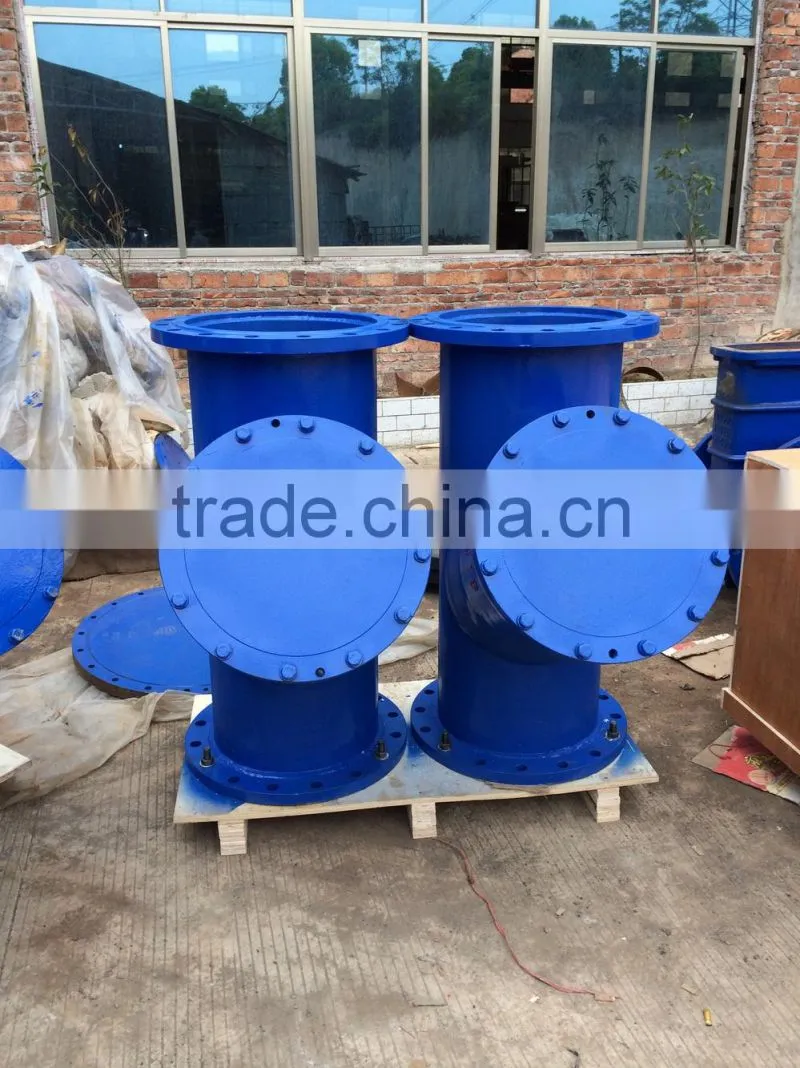

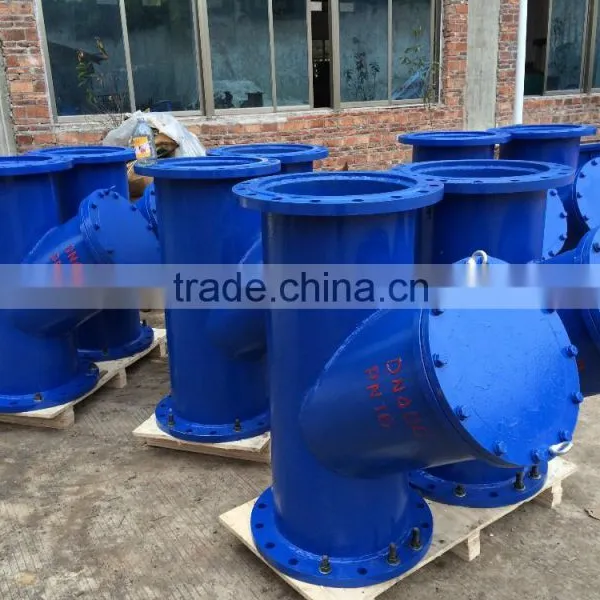

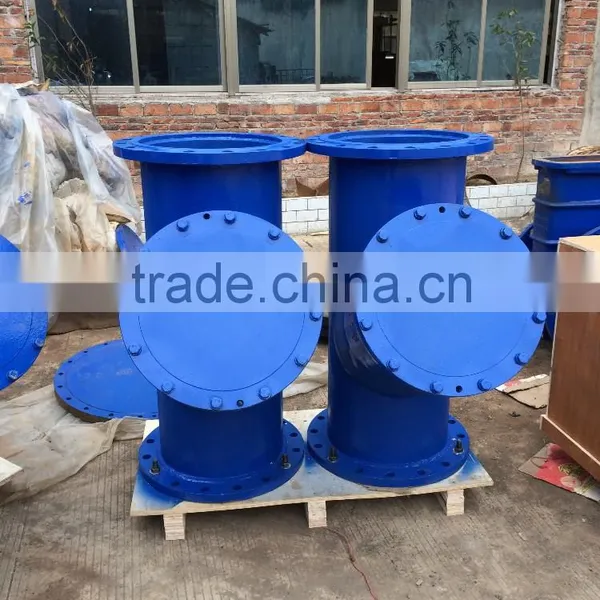

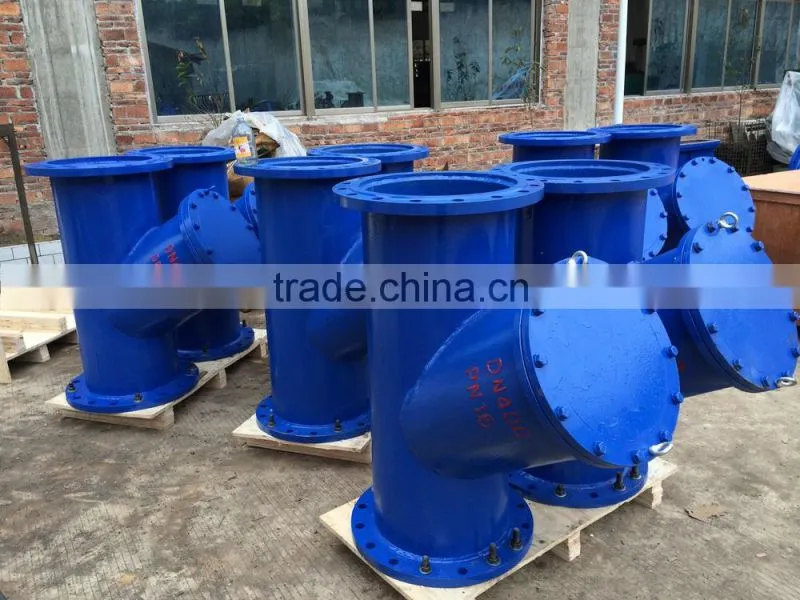

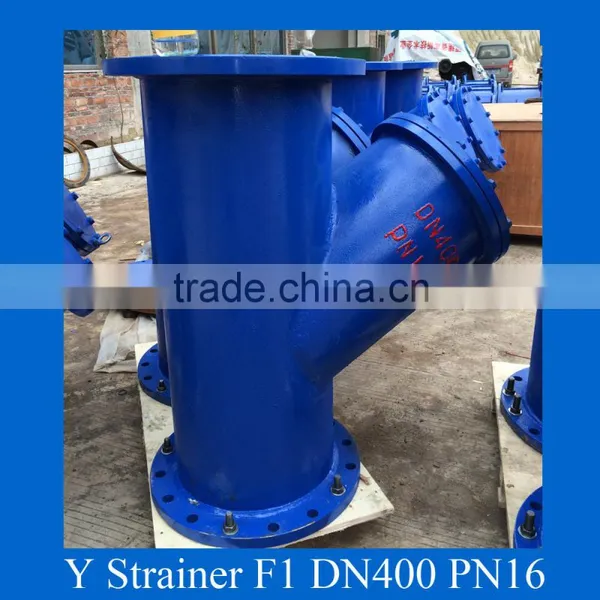

Ductile Iron DIN3202 F1 Y Strainer
DN400,PN10/16
1 Design Standard:DIN3352
2 Flange:DIN2501
3 Face to face Dimensions:DIN3202 F1
4 Test Standard:DIN3230
5 Work pemterature:≤80°c
6 Working Pressure:PN10,PN16
7 Body Material:Ductile iron(GGG50)
8 Screen:SS304
9 Gasket:EPDM or NBR
10 Coating:Blue Epoxy powder
Drawing:

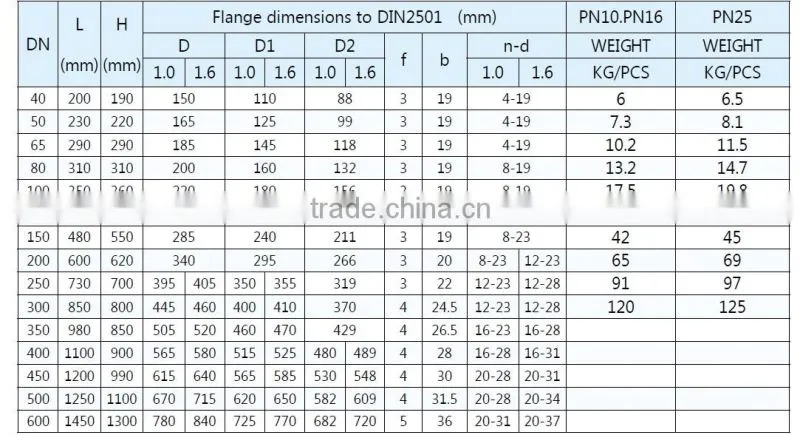

Dimension and Weight
Quanzhou Zhixin Valve Manufacturing CO.,Ltd, is a pressessional manufacturer of ductile iron industrial valves for water in Luncang,Nan'an,Fujian,China.

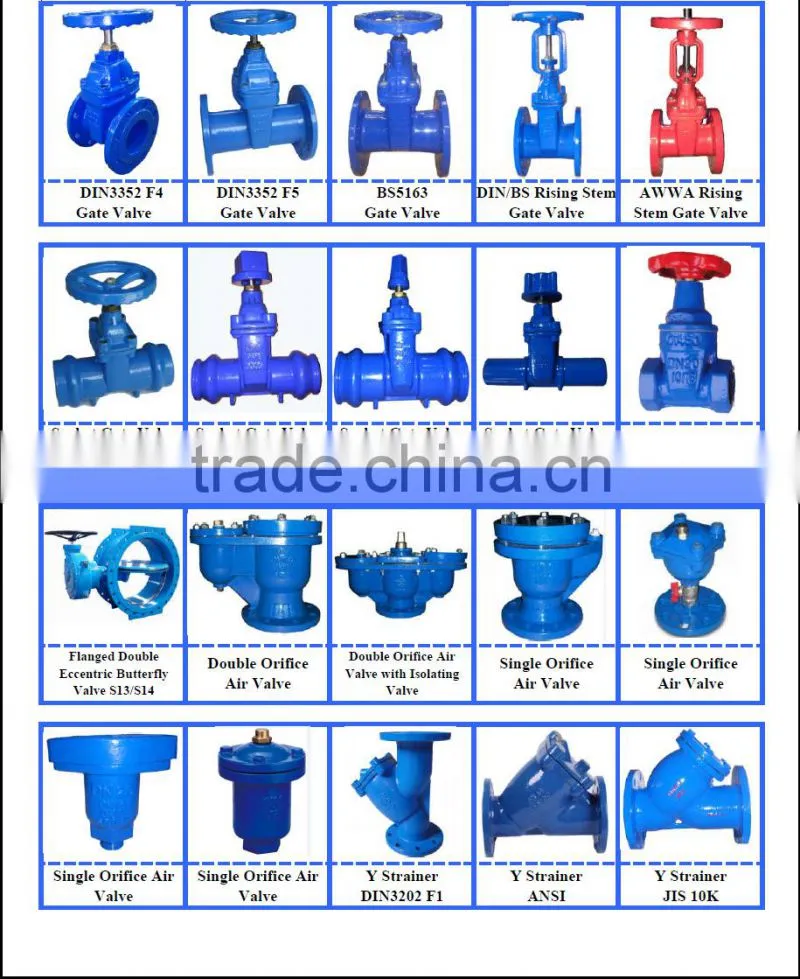

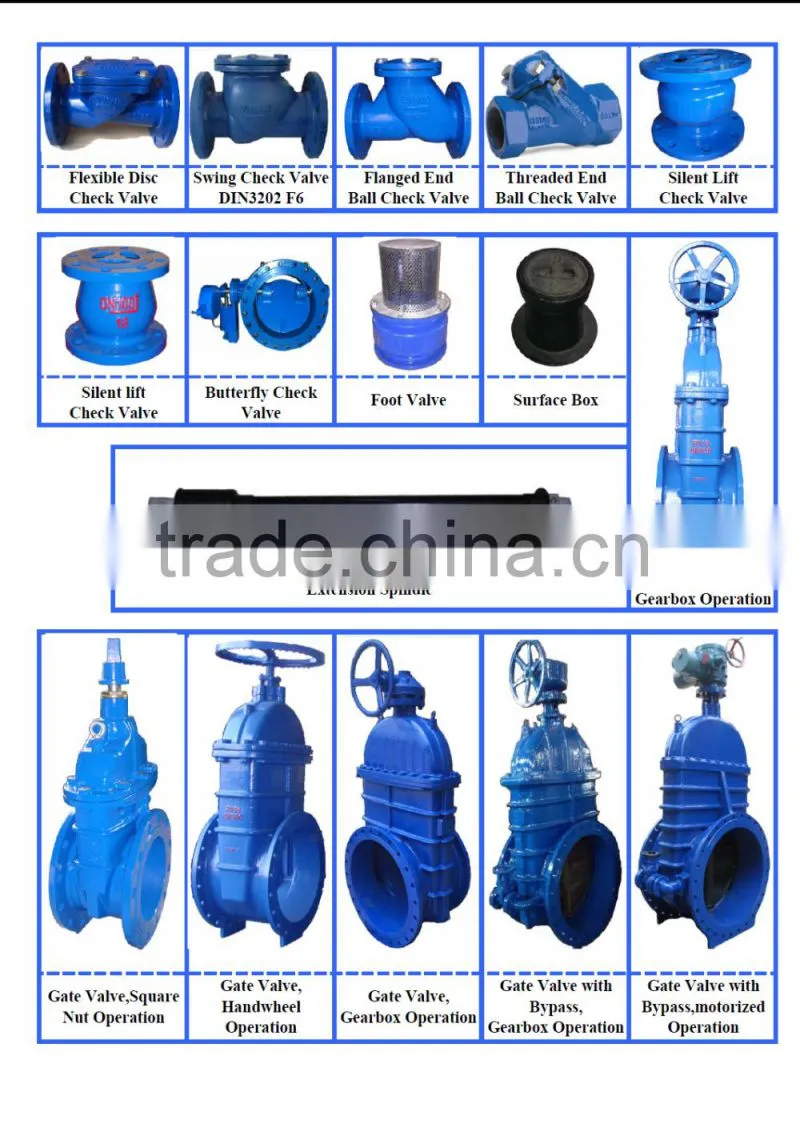

Our valve series are:
Resilient seated flanged and socketted gate valve DIN3352 F4,F5,BS5163,AWWA C509,C515
Check valve BS5153,DIN3202 F6,
Flanged double eccentric/centric butterfly valve EN593 IS5752 S13 and S14,
Single orifice and double orifice air valve,
Y strainer DIN3202 F1,ANSI,JIS,BS.
Foot Valve
