Specifications
artistic design, elegant appearance;Whole steel welded structure, solid frame,
high rigidity
the product shape structure
1. Machie design, artistic design, elegant appearance;
2. Whole steel welded structure, solid frame, high rigidity, damping and strong;
3. Structural parts ways with blasting rust, and spray rust;
4. The machine frame, the knife, table and other main parts are imported using the Russian large landing CNC boring and milling machine finished form, to ensure the geometric accuracy of the host;
5. Lights on the line device, easy to hand-crossed shear;
6. Reliable security guardsthe structure of the machine
1. Frame
The frame is welded box-shaped structure as a whole, from the left and right columns, tables, panels, fuel tank, under a combination of beams, such as welding, its structural stability, rigidity. Cylinder fixed in about two columns, the work surface with auxiliary knife, easy to under the knife for trace conditioning, table tops with feeding bowls, easy to operate.
2. Knife
Box knife to the overall good of the rigid welded structure, which to install the column on the left and right mind set as the fulcrum correction in the left fuel tank and the nitrogen cylinder to make an reciprocating drive the completion of the work cut trips. On the knife blade vertical machining an arc curve bearing surface to ensure that the process of cutting down the gap between the consistency of the blade.
3. Hydraulic System
System architecture for the integrated valve block, the valve used with the famous brand products. The whole system is simple to adjust and easy maintenance and reliable performance.
4. Pressing device
Pressing device installed in the panel from the underside of a cylinder composed of binder, binder force is proportional with the thickness, can guarantee a good precision sheet metal shear.
5. Blade gap adjustment device
Turn the handle space, through the synchronizing shaft and gear driven fan about two pairs of rotating eccentric sleeve, so that knife to trace around the sport. Thereby changing the gap between the upper and lower blade structure is simple, quick and convenient operation.

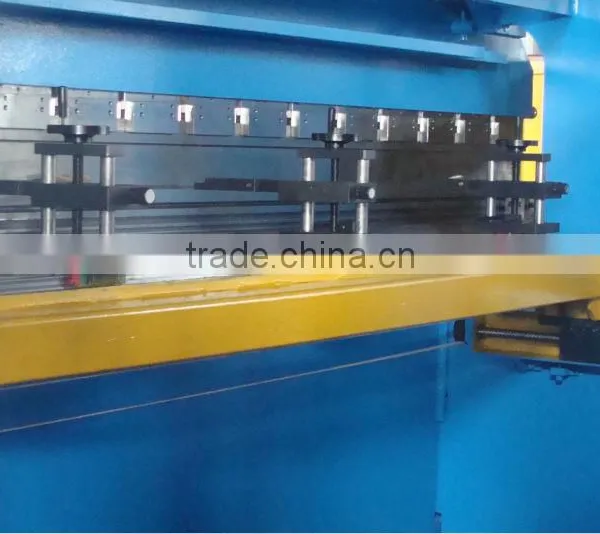

6. After the block device
After the machine placed on the knife block bottom feeding device, with the knife to pull up and down, back gauge adjustment by the electric drive, with gear after the screw drive, block size with optional digital display device control E10 .
7. Electrical System
The main electrical components electrical systems are used Siemens products. Excellent quality components, carefully designed to ensure that the machine has high reliability and life
machine standard accessories
1. Mobile foot switch 1 set
2. Hex Wrench 1 set
3. Bolt 4
4. Product Operating Instructions 1
5. Certificate 1
Equipment Price: 98 000 ex-factory price (RMB)
Our company has CE certification and ISO certification, please cooperate with our company!
