Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > WC67K Sheet Metal Press Brake

WC67K Sheet Metal Press Brake

Name: WC67K Sheet Metal Press Brake
Brand: TONGWEI
SKU: 116445573

WC67K Sheet Metal Press Brake thumbnail-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

TONGWEI

Model Number:

WC67Y-160/3200

Contact Supplier Request Quote Chat Now

Nantong Weili CNC Machine Tool Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name TONGWEI

Model Number WC67Y-160/3200

Machine Type Press Brake

Raw Material Sheet / Plate Rolling

Material / Metal Processed Stainless Steel

Power Hydraulic

Automation Automatic

Extra Services Cut To Length

Certification ISO 9001:2000

Specifications

foot pedal control
atos valves, NOK seals
siemen parts,DA51 CNC system
sheet metal press brake

1.All steel welded structure,vibrating treatment of ageing for removal of internal stress with high strength and good rigidity.
2.Torsion shaft forced synchronization of mechanical limit stopper balance with high precision.
3.Integrated hydraulic transmission system, large range of speed regulation to transmission of the sliding block, stable and reliable performance.
4.Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication.
5.Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with titling warp offset mechanism.
6.Multi machine combined operation is possible.
7.Safe guide is optional.(Protection barrier,photo-electric protection device)
8.Machine fitted with ATOS valves; NOK oil sealing, SCHNEIDER electricity main parts.

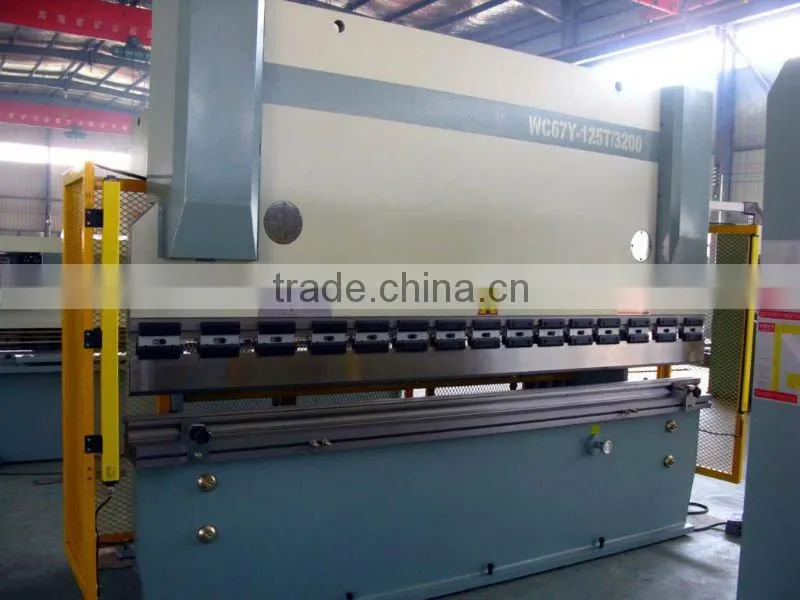

sheet metal press brake(Series WC67Y)
Model	Pressure KN	Worktable length mm	Distance between columns mm	Depth of throat mm	Stroke mm	Max height between worktable and ram mm	Main motor KW	Weight KG	Dimension (LxWxH) mm
WC67Y-40/2500	400	2500	1925	220	80	300	4	3000	2650x1100x1950
WC67Y-50/2500	500	2500	2015	220	100	340	4	3750	2650x1250x2100
WC67Y-63/2500	630	2500	2015	250	100	340	5.5	4300	2650x1300x2200
WC67Y-80/2500	800	2500	2010	250	120	380	5.5	5200	2560x1350x2250
WC67Y-80/3200	800	3200	2510	250	120	380	5.5	6000	3260x1350x2280
WC67Y-100/2500	1000	2500	2050	320	150	420	7.5	6700	2550x1360x2270
WC67Y-100/3200	1000	3200	2550	320	150	420	7.5	7200	3260x1365x2520
WC67Y-100/4000	1000	4000	3050	320	150	420	7.5	8500	4060x1365x2720
WC67Y-125/3200	1250	3200	2550	320	150	420	7.5	7800	3260x1465x2600
WC67Y-125/4000	1250	4000	3050	320	150	420	7.5	9000	4060x1460x2800
WC67Y-160/3200	1600	3200	2590	320	200	475	11	10500	3260x1580x2775
WC67Y-160/4000	1600	4000	3040	320	200	475	11	12500	4060x1580x2925
WC67Y-160/6000	1600	6000	4800	320	200	480	11	19500	6060x1580x3480
WC67Y-200/3200	2000	3200	2580	320	200	475	18.5	13200	3260x1650x2800
WC67Y-250/4000	2500	4000	3130	400	250	530	18.5	19000	4060x1840x3150
WC67Y-250/5000	2500	5000	3930	400	250	530	18.5	24000	5060x1840x3450
WC67Y-300/3200	3000	3200	2530	400	250	580	18.5	18000	3300x2100x2980
WC67Y-300/4000	3000	4000	3200	400	250	580	18.5	22000	4060x2040x3330
WC67Y-400/4000	4000	4000	3180	400	320	630	30	30000	4060x2220x3630
WC67Y-400/6000	4000	6000	4700	400	320	630	30	45000	60602x2203x980
WC67Y-500/6000	5000	6000	4600	500	320	70	30	55000	6080x2760x4000
WC67Y-800/6000	8000	6000	4600	500	400	900	37	72000	6100x3250x4300
