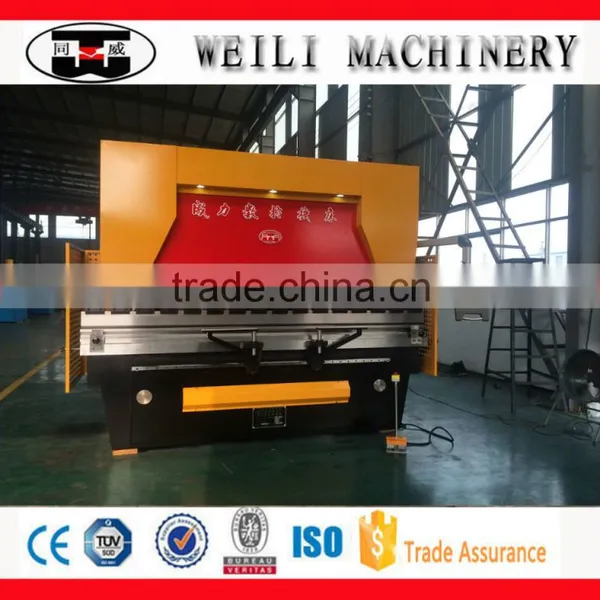

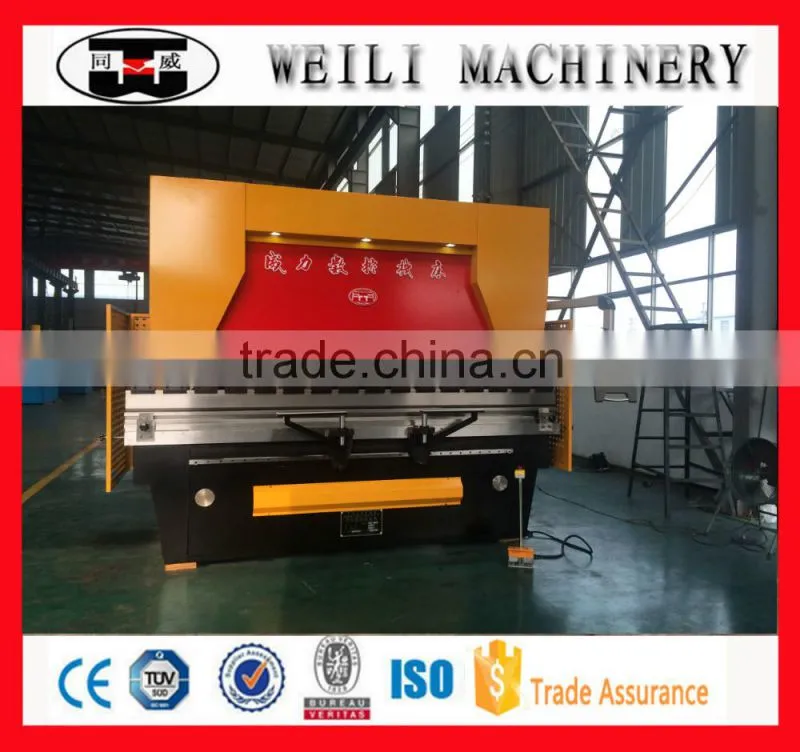

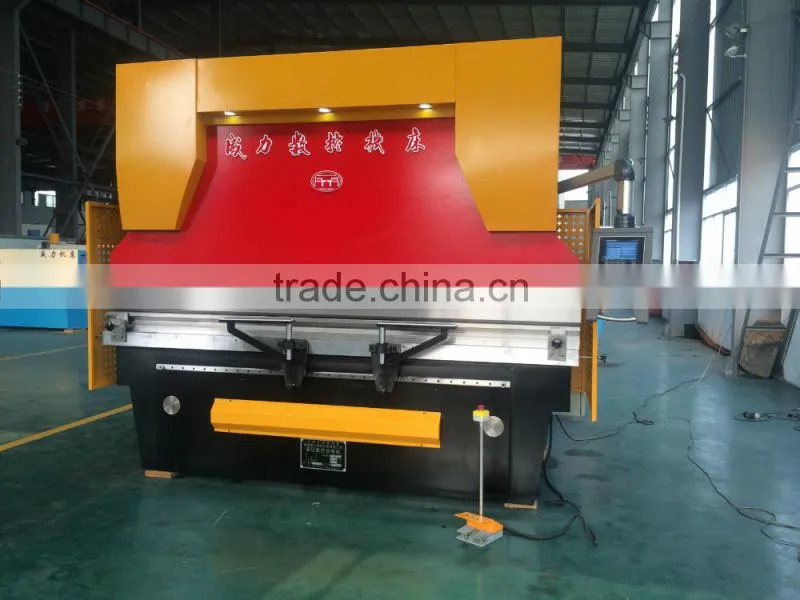

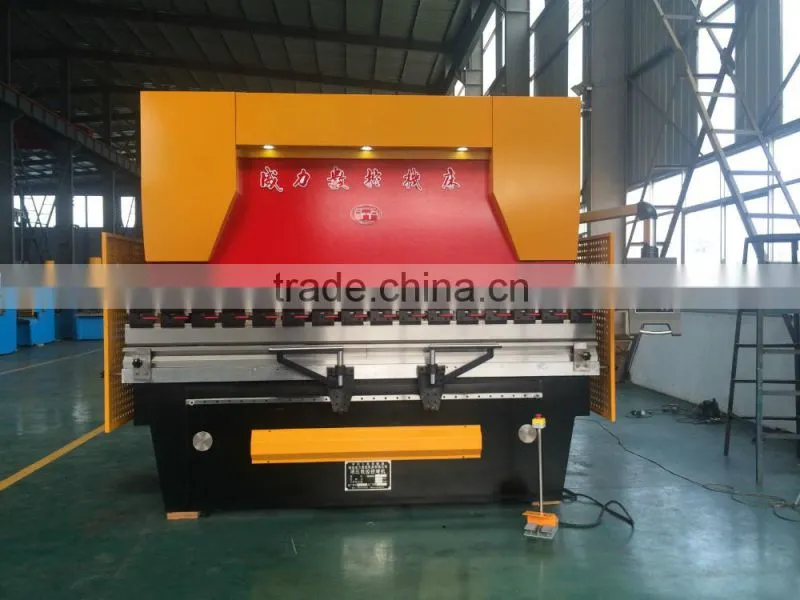

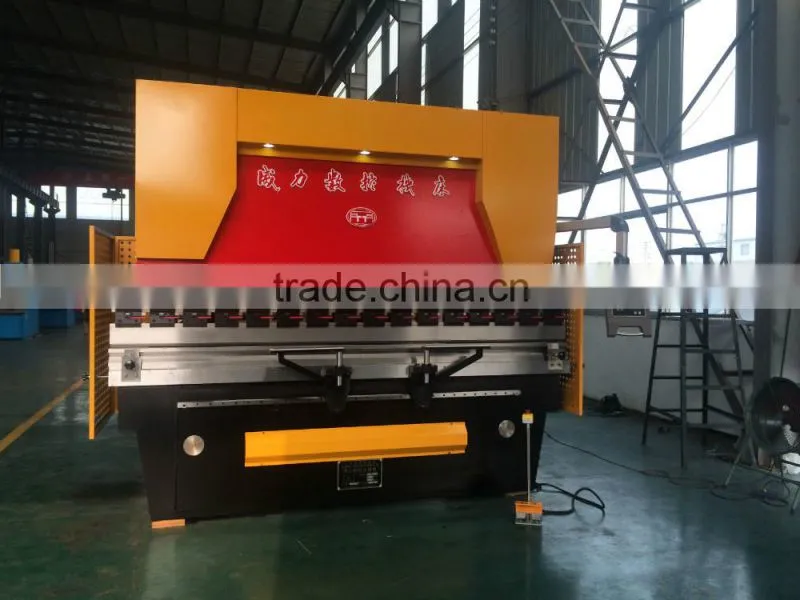

Help CenterTOP OEM QUALITY!! WC67K-160T/3200 CNC Press Brake Machine
Related Products
-
WC67Y-160t/43200mm Top Quality CNC Hydraulic Press Brake MachineUS$ 1,000 - 10,000MOQ: 1 Set -
WC67K-125/4000 CNC Press Brake MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
TOP OEM QUALITY!! WC67K-160T/3200 CNC Press Brake Machine DA56 SystemUS$ 1,000 - 10,000MOQ: 1 Set
-
TOP OEM QUALITY!! WC67K-160T/3200 CNC Press Brake Machine DA56US$ 1,000 - 10,000MOQ: 1 Set
-
TOP OEM QUALITY!! WC67K-160T/3200 CNC Press Brake Machine FactoryUS$ 1,000 - 10,000MOQ: 1 Set
WC67Y-160/3200 hydraulic CNC press brake machine with DA52
* The lear plane selects and uses the WC67Y/K series breaking curved machine up;

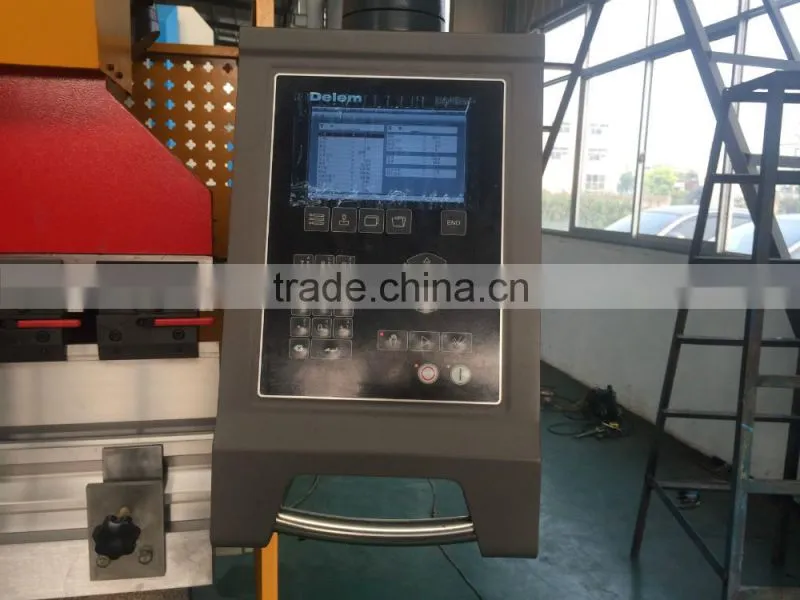

* Allocate breaking that the DELEM company produces bending machine special use numerical control system (or customer specify other shears to fold numerical control system);

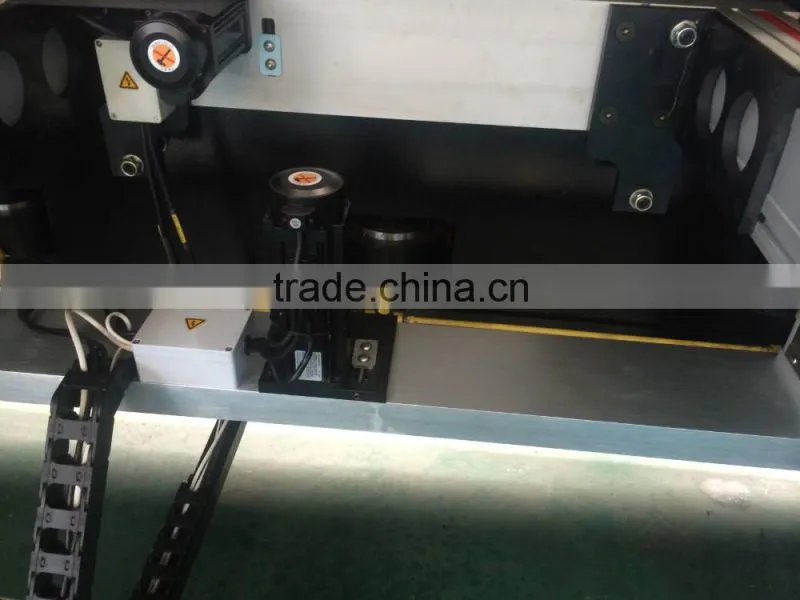

* Rear material(X), smooth piece route or distance of travel(Y) control equal reason computer autocontrol;

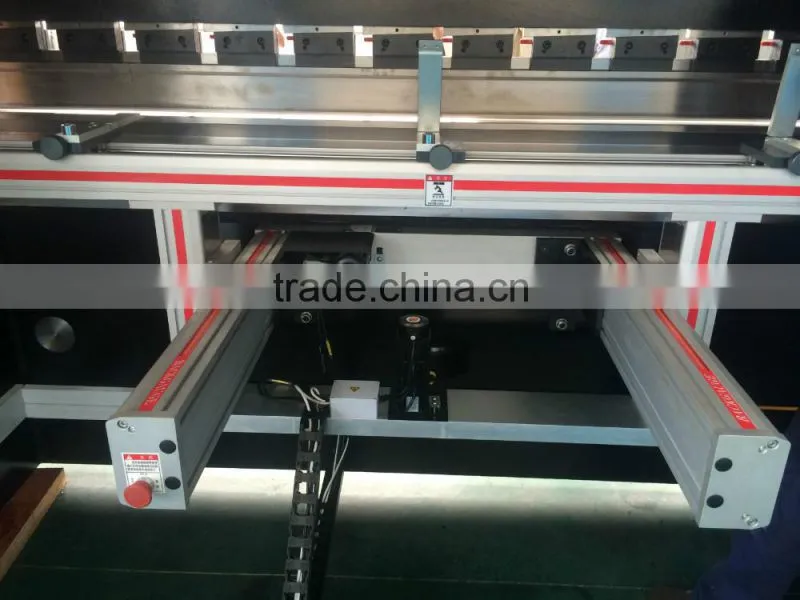

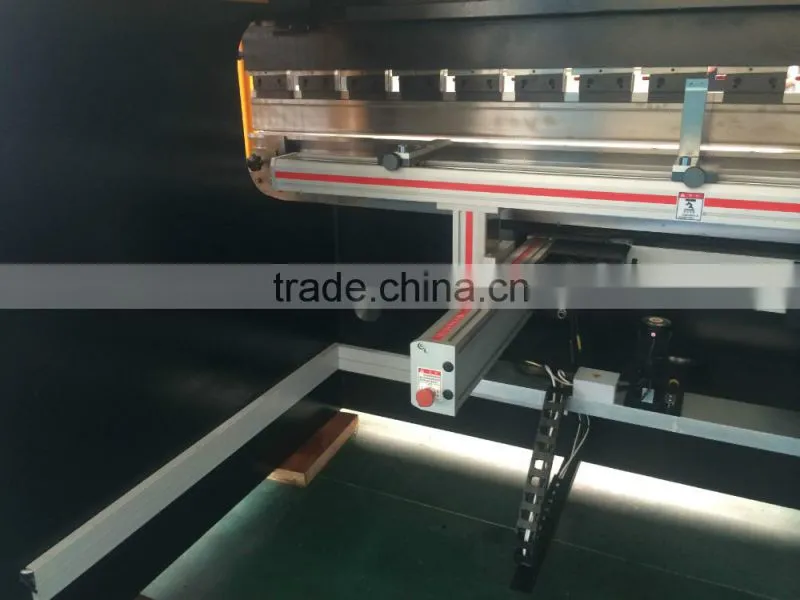

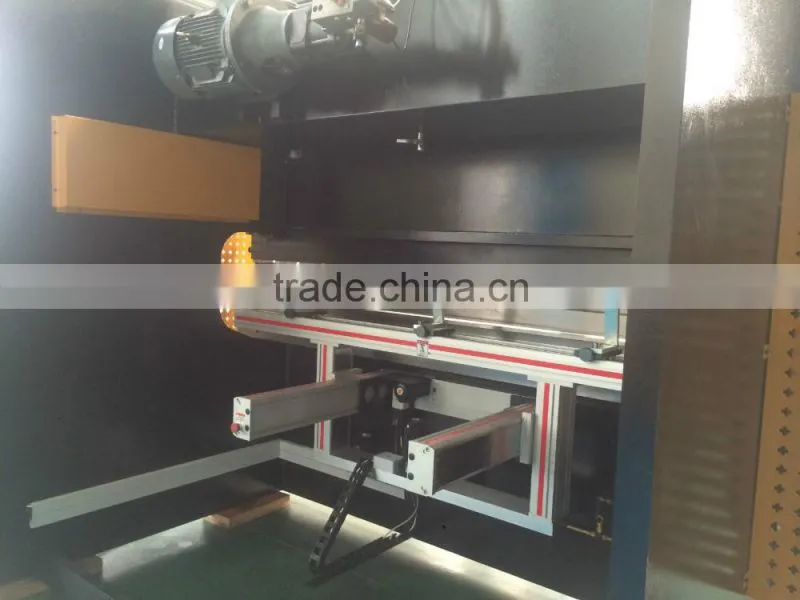

* Rear material adopt the average silk pole and precise ball two kind silk poles;
* Machine steel plate welded strure, using VSR elimimate internal stress, high mechanical strength and good rigidity.
* Hydraulic double cylinders on the drive, mechanical block, twisting axis synchronization, smooth and reliable operation, high precision;
* Electrically adjustable and manually fine-tune the backgauge distance slide strock, and features a digital display device, a convenient;
* The upper die with deflection compensation device, the machine can be used for more than 250 tons and length of 4000mm deflection compensation agencies.
High Quality Cheap Prices WC67Y-100 sheet metal nc bending machine
Technology paramerers
| Hydraulic press brake (Series WC67Y/K) | |||||||||
| Model | Pressure KN |
Worktable length mm |
Distance between columns mm | Depth of throat mm | Stroke mm |
Max height between worktable and ram mm |
Main motor KW | Weight KG |
Dimension (LxWxH) mm |
| WC67Y/K-40/2500 | 400 | 2500 | 1925 | 220 | 80 | 300 | 4 | 3000 | 2650x1100x1950 |
| WC67Y/K-50/2500 | 500 | 2500 | 2015 | 220 | 100 | 340 | 4 | 3750 | 2650x1250x2100 |
| WC67Y/K-63/2500 | 630 | 2500 | 2015 | 250 | 100 | 340 | 5.5 | 4300 | 2650x1300x2200 |
| WC67Y/K-80/2500 | 800 | 2500 | 2010 | 250 | 120 | 380 | 5.5 | 5200 | 2560x1350x2250 |
| WC67Y/K-80/3200 | 800 | 3200 | 2510 | 250 | 120 | 380 | 5.5 | 6000 | 3260x1350x2280 |
| WC67Y/K-100/2500 | 1000 | 2500 | 2050 | 320 | 150 | 420 | 7.5 | 6700 | 2550x1360x2270 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7200 | 3260x1365x2520 |
| WC67Y/K-100/4000 | 1000 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 8500 | 4060x1365x2720 |
| WC67Y/K-125/3200 | 1250 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7800 | 3260x1465x2600 |
| WC67Y/K-125/4000 | 1250 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 9000 | 4060x1460x2800 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2590 | 320 | 200 | 475 | 11 | 10500 | 3260x1580x2775 |
| WC67Y/K-160/4000 | 1600 | 4000 | 3040 | 320 | 200 | 475 | 11 | 12500 | 4060x1580x2925 |
| WC67Y/K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 480 | 11 | 19500 | 6060x1580x3480 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2580 | 320 | 200 | 475 | 18.5 | 13200 | 3260x1650x2800 |
| WC67Y/K-250/4000 | 2500 | 4000 | 3130 | 400 | 250 | 530 | 18.5 | 19000 | 4060x1840x3150 |
| WC67Y/K-250/5000 | 2500 | 5000 | 3930 | 400 | 250 | 530 | 18.5 | 24000 | 5060x1840x3450 |
| WC67Y/K-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 580 | 18.5 | 18000 | 3300x2100x2980 |
| WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 580 | 18.5 | 22000 | 4060x2040x3330 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | 630 | 30 | 30000 | 4060x2220x3630 |
| WC67Y/K-400/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 45000 | 60602x2203x980 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4600 | 500 | 320 | 70 | 30 | 55000 | 6080x2760x4000 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 72000 | 6100x3250x4300 |
