Help CenterPipe Joint
Related Products
Specifications
pipe jointFlange:EN1092
Work temperature: 80 120
Material:ductile iron

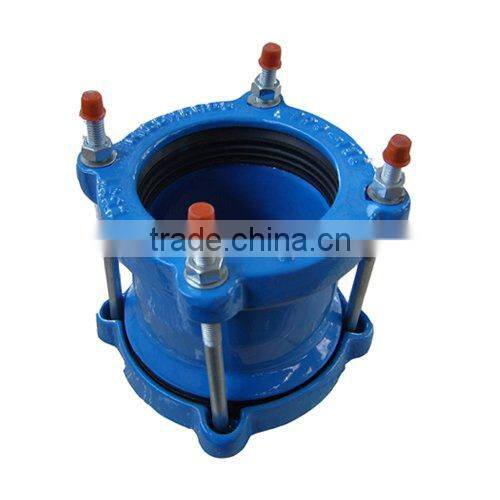

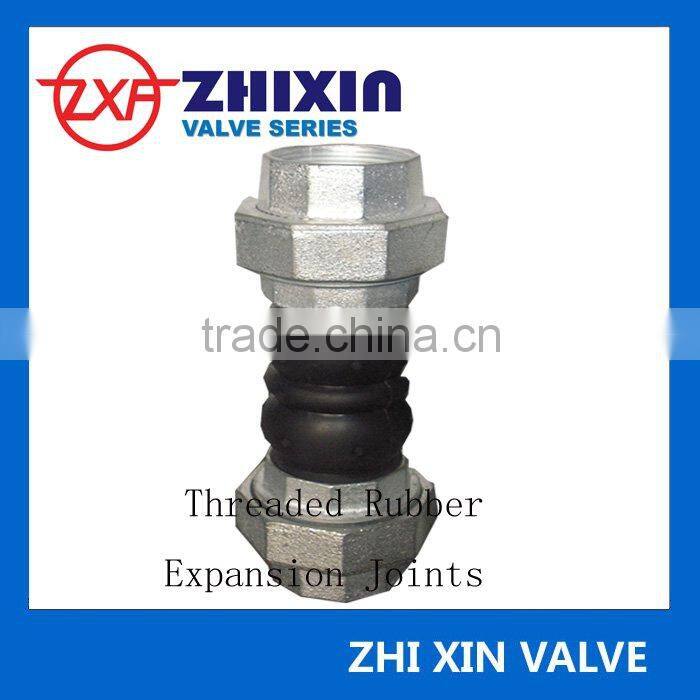

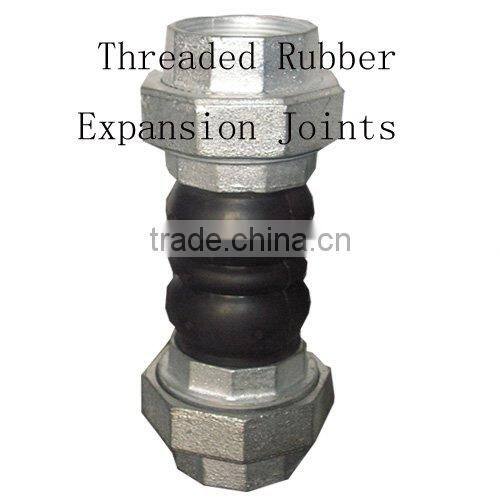

pipe joint
Design standard:BS5163
Flange:EN1092
Work temperature: 80 120
Material:ductile iron
operating lever,hand wheel,electrical actuator and so on.
Unique Design:
Compact design:one-piece bonnet,non-rising stem.
Stem nut is separated from wedge,no seizing-up.
Flat bottom seat ring insures no ded space.
O ring design for stem back sealing leads to maintenance-free.
Excellent corrosion protection
Inside epoxy resin coating or vitreous enamel(upon request),outside epoxy resin cating.
Socket head cap bolts,sealed with glue on the top.
Reliable health nature:
Epoxy resin coating complies with the GB/T17219.
Wedge bonded with rubber for the health inspection.
Trims are made of stainless steel or bronze.
Scope of application:
Potable water supply,industrial fields.
Design standard:BS5163
Flange:EN1092
Face to face dimensios:BS5163
Test standard:BS5163
Work temperature: 80 120
NUM Name Meterial
1 Body Ductile Iron
2 Wedge Ductile Iron+EPDM
3 Stem nut Brass
4 Stem Stainless steel
5 Middle end seat ring NBR
6 Bonnet Ductile Iron
7 Back seat Gasket Nilon 1010
8 "O" Ring NBR
9 Gland Ductile Iron
10 Handwheel Cast Iron
PACKING:Plywood,One Plywood Sizes: 1000*1000*1000
One Container: 20 Square Inch 720 PIC
