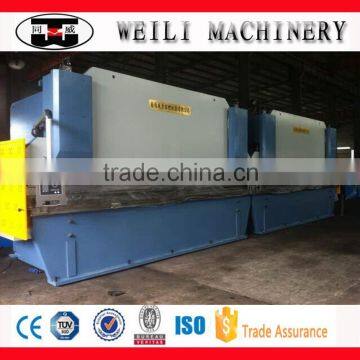

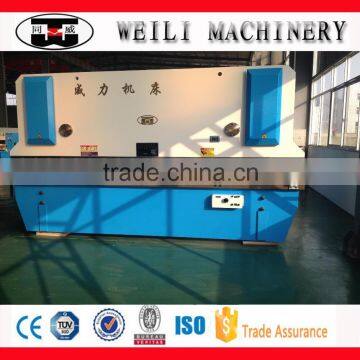

Hydraulic Flat Bar Bending Machine
US$ 1,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
TONGWEI
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Conduit Pipe Bending MachineUS$ 1,000 - 10,000MOQ: 1 Set -
Plate Bending Machine for Bending Corrugated PlateUS$ 1,000 - 10,000MOQ: 1 Set
-
Round Bar Bending MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Steel Rule Die Bending MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Acrylic Heat Bending MachineUS$ 1,000 - 10,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
TONGWEI
Model Number
WC67Y-125t/4000 press brake machine
Machine Type
Beading Machine
Raw Material
Other, Sheet / Plate Rolling, Sheet / Plate Rolling
Material / Metal Processed
Stainless Steel
Power
Cnc
Automation
Other, Automatic, Automatic
Extra Services
Other, Machining, Machining
Certification
Other, CE, ISO 9001:2000
After-sales Service Provided
Overseas service center available
Hydraulic flat bar bending machine
1. Totally European design,streamlined looking
2.Taking off inner-stress of welded parts by tempering,good stability
3.Remove rust with sand-blast and coated with anti-rust paint
4. The design of the machine frame is a critical part of any machine with relation to its ability to produce accurate parts for a long period of time.

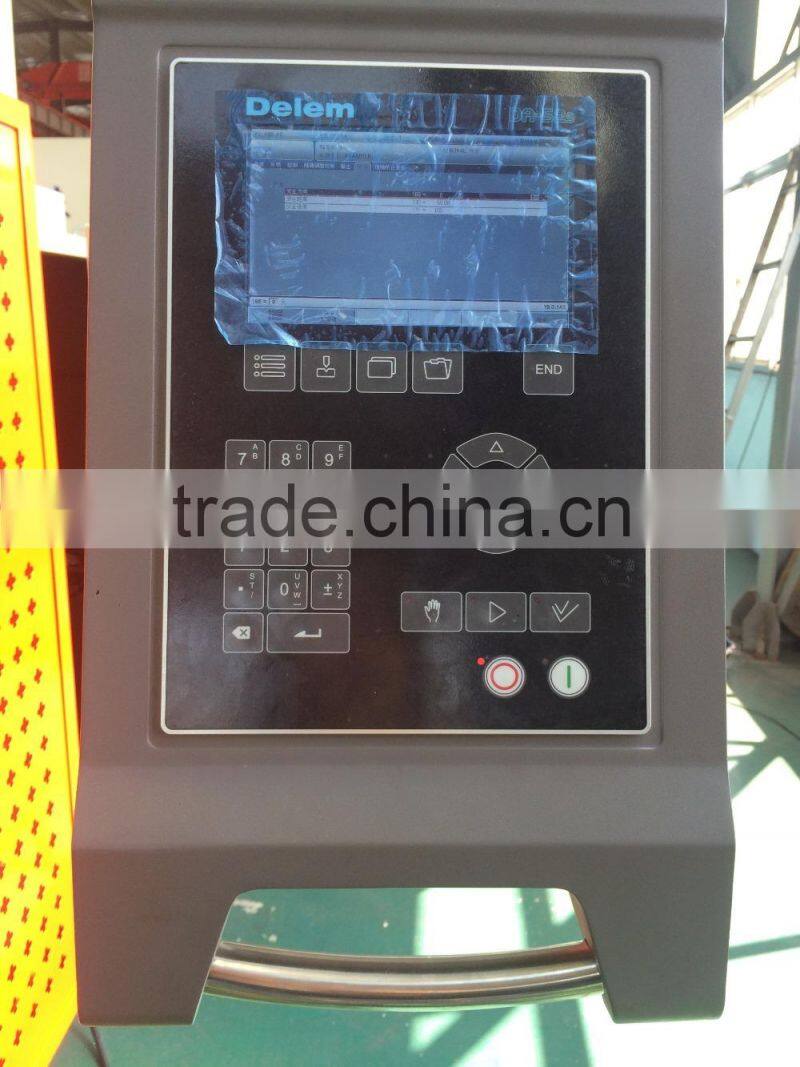

5..Machine Equipped with the Delem user-friendly user interface,the DA-52s provides all main press brake functionality.
6.Automatic tonnage and stroke adjustment for bending angles with easy angle input and operation of machine.
7.The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.

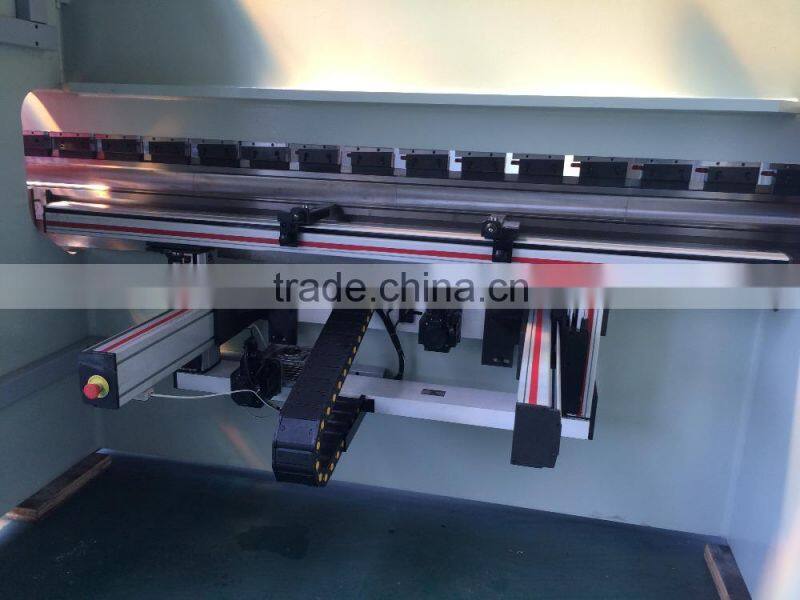

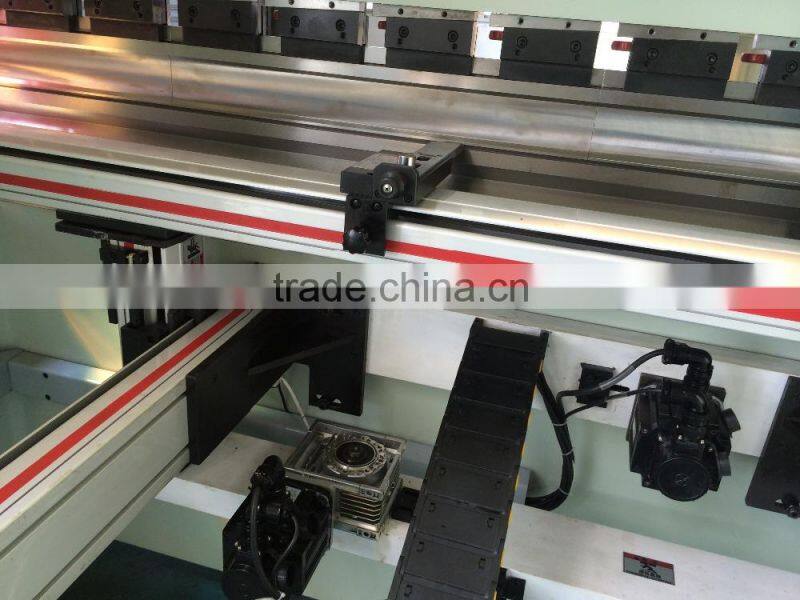

8.Provides CNC control of standard 3 + 1 axis with Y1, Y2 + X + V-axis Crowning.
9.Hydraulic system is from Bosch,Germany,a full loop electric-hydraulic proportional servo control By Bosch – Rexroth from Germany.
Technology paramerers
| Hydraulic press brake (Series WC67Y/K) | |||||||||
| Model | Pressure KN |
Worktable length mm |
Distance between columns mm | Depth of throat mm | Stroke mm |
Max height between worktable and ram mm |
Main motor KW | Weight KG |
Dimension (LxWxH) mm |
| WC67Y/K-40/2500 | 400 | 2500 | 1925 | 220 | 80 | 300 | 4 | 3000 | 2650x1100x1950 |
| WC67Y/K-50/2500 | 500 | 2500 | 2015 | 220 | 100 | 340 | 4 | 3750 | 2650x1250x2100 |
| WC67Y/K-63/2500 | 630 | 2500 | 2015 | 250 | 100 | 340 | 5.5 | 4300 | 2650x1300x2200 |
| WC67Y/K-80/2500 | 800 | 2500 | 2010 | 250 | 120 | 380 | 5.5 | 5200 | 2560x1350x2250 |
| WC67Y/K-80/3200 | 800 | 3200 | 2510 | 250 | 120 | 380 | 5.5 | 6000 | 3260x1350x2280 |
| WC67Y/K-100/2500 | 1000 | 2500 | 2050 | 320 | 150 | 420 | 7.5 | 6700 | 2550x1360x2270 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7200 | 3260x1365x2520 |
| WC67Y/K-100/4000 | 1000 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 8500 | 4060x1365x2720 |
| WC67Y/K-125/3200 | 1250 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7800 | 3260x1465x2600 |
| WC67Y/K-125/4000 | 1250 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 9000 | 4060x1460x2800 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2590 | 320 | 200 | 475 | 11 | 10500 | 3260x1580x2775 |
| WC67Y/K-160/4000 | 1600 | 4000 | 3040 | 320 | 200 | 475 | 11 | 12500 | 4060x1580x2925 |
| WC67Y/K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 480 | 11 | 19500 | 6060x1580x3480 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2580 | 320 | 200 | 475 | 18.5 | 13200 | 3260x1650x2800 |
| WC67Y/K-250/4000 | 2500 | 4000 | 3130 | 400 | 250 | 530 | 18.5 | 19000 | 4060x1840x3150 |
| WC67Y/K-250/5000 | 2500 | 5000 | 3930 | 400 | 250 | 530 | 18.5 | 24000 | 5060x1840x3450 |
| WC67Y/K-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 580 | 18.5 | 18000 | 3300x2100x2980 |
| WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 580 | 18.5 | 22000 | 4060x2040x3330 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | 630 | 30 | 30000 | 4060x2220x3630 |
| WC67Y/K-400/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 45000 | 60602x2203x980 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4600 | 500 | 320 | 70 | 30 | 55000 | 6080x2760x4000 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 72000 | 6100x3250x4300 |

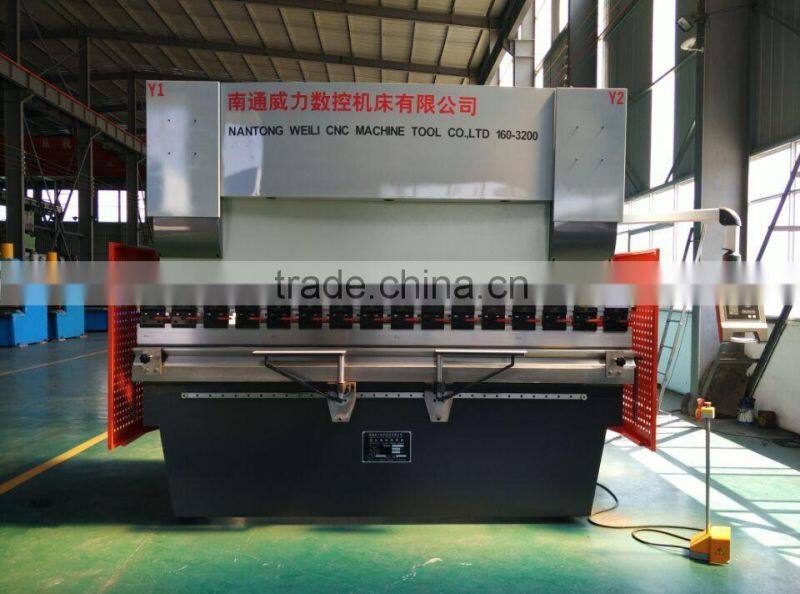

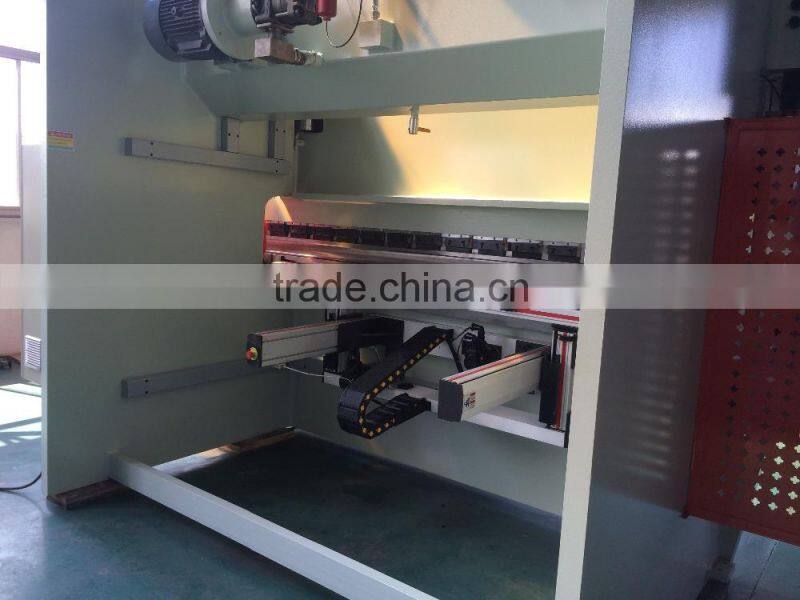

Machine pictures
