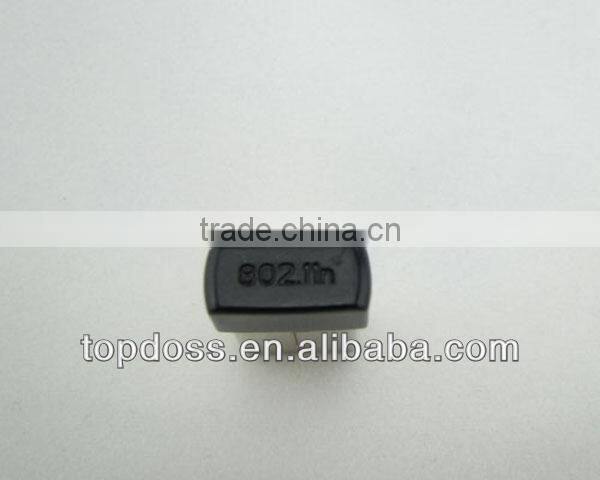

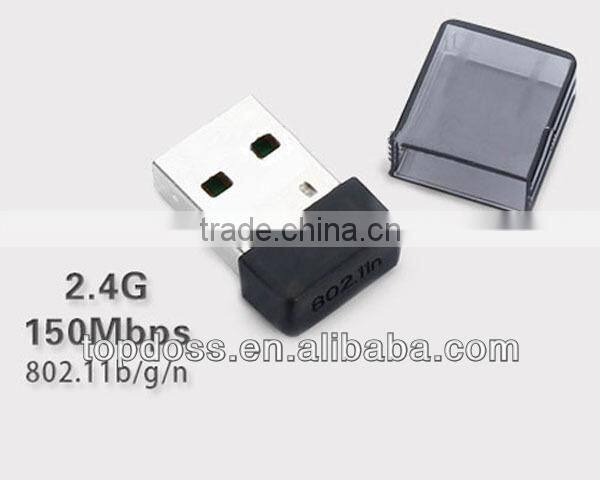

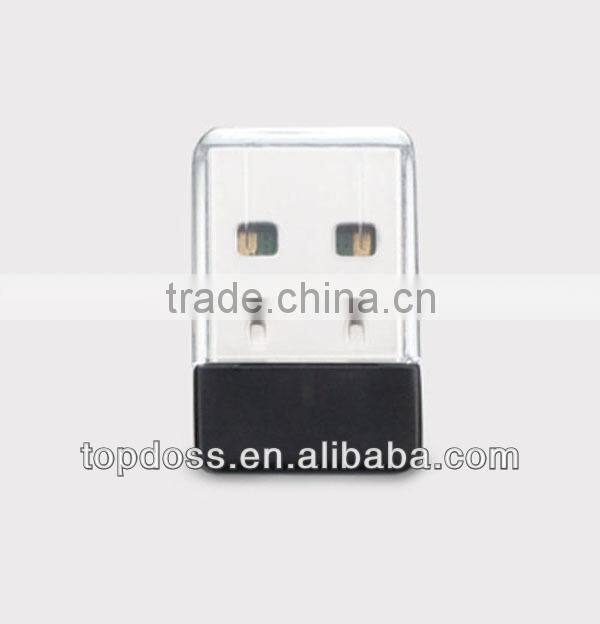

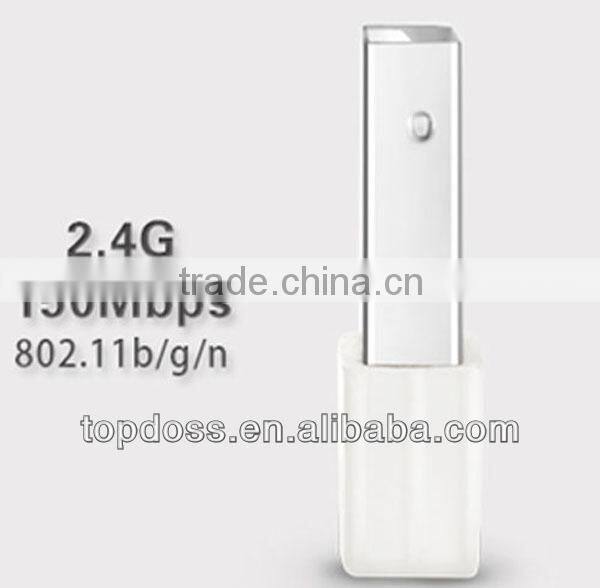

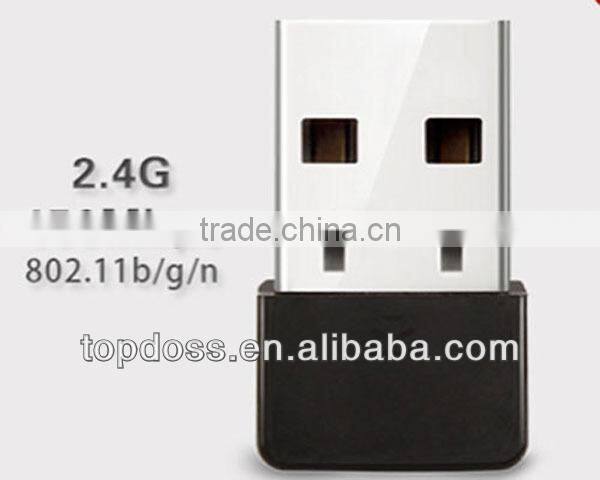

2.4GHz Mini Wireless WiFi Network Lan Adapter Card

Name: 2.4GHz Mini Wireless WiFi Network Lan Adapter Card
Brand: TopDoss
SKU: 116444795
Availability: InStock

US$ 1.5 - 3 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

TopDoss

Model Number:

TD-MINI

Shenzhen TopDoss Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name TopDoss

Model Number TD-MINI

Usage Laptop

Output Type Other, USB

Connection Desktop

Specifications

1.Model:TD-MINI
2.Chipset:MT7601 Mbps
3.Application:desktop/laptop
4.Transmission rate:150

1, Media Tek MT7601 chipset
2, Cheap price,2 year warranty
3, Window ,win8,Android,MAC OS,linux
4, Shenzhen OEM factory

Hardware
Chipset	MT7601
Host interface	USB2.0/1.1, type A ( 4 pin header)
LEDS	Link/ Activity
RF
Antenna	Built-in PCB antenna.
Frequency	2412~2483.5 MHz, ISM band.
Transmit Power	802.11b:17+/-1.5dBm; 802.11g: 14.5+/-1.5dBm; 802.11n: (HT20), 14.5+/-1.5dBm, 802.11n: (HT40), 14+/-1.5dBm,
Receive Sensitivity	802.11b: -88 dBm@11Mbps; 802.11g: -72dBm@54Mbps
	802.11n: (HT20), -71dBm@MSC7, 802.11n: (HT40), -68dBm@MSC7,
Software
Operation System	Windows CE/2000/XP/Vista/7; Linux 2.6.X; Mac OS X
Security	WEP 64/128bit , WPA, WPA2, 802.1x, and 802.11i Cisco CCS V1.0, 2.0 and V3.0 Compliant
Operation Conditions
Voltage/Current Range*	DC 5.0V ± 5% / <145 mA
Operating Temperature	0°C - 50°C
Storage Temperature	-20°C - 70°C
Operating Humidity	RH 95% (Non-Condensing)
Storage Humidity	RH 95% (Non-Condensing)
Physical Specification
Dimensions	13.82.96.9mm
