DIN3354 Wafer Type Butterfly Valve for Water Works
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap Wafer Type Butterfly Vavle With Hand LeverNegotiableMOQ: 1 Set -
Cast Iron Wafer Type Butterfly Valve With Hand LeverNegotiableMOQ: 1 Set
-
Cast Iron Wafer Type Butterfly Valve With Hand Lever DN80NegotiableMOQ: 1 Set
-
Ductile Iron Double Eccentric Flanged Butterfly ValveUS$ 30 - 500MOQ: 1 Set
-
Resilient Seat Flange Butterfly ValveUS$ 1 - 500MOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Butterfly
Pressure
Medium Pressure
Power
Manual
Material
Casting
Temperature of Media
Medium Temperature
Media
Water
Port Size
Flange:DIN2501
Place of Origin
Fujian, China
Brand Name
ZHIXIN
Specifications
DIN3354 Wafer Type Butterfly ValveStandard DIN3354 EN593
DN50-DN200mm
Length(L):43-60mm
Competitive price
DIN3354 EN593 Wafer Type Butterfly Valve for water works
1.Products: Wafer Type Butterfly Valve
2.Design Standard:DIN3352 EN593
3.Dimensions: DN50 - DN200
4.Connection type: Flanged.DIN2501
5.Face to face dimensions: ISO 5752-2 Series20
6.Each valve be tested according to test standard: DIN3230
7. Work Temperature: EPDM≤120°C
8.Media:water

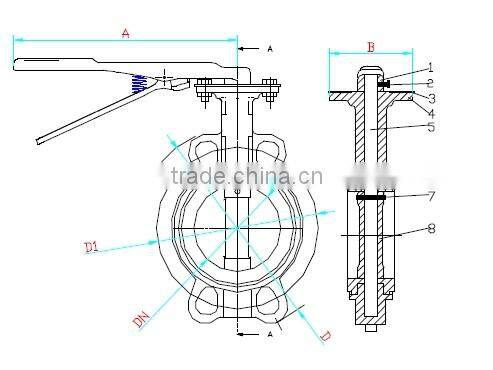

Drawing

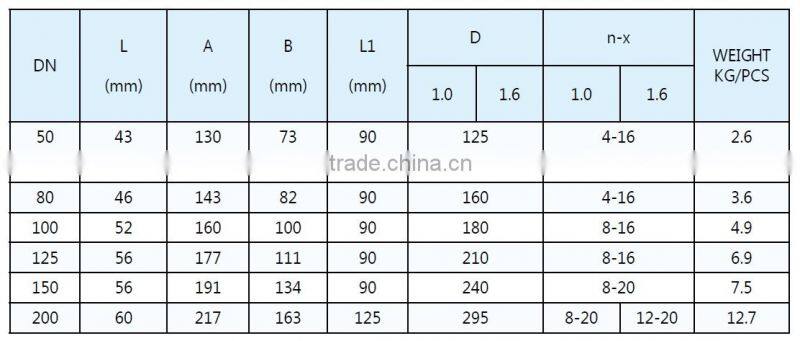

Dimensions and weight
