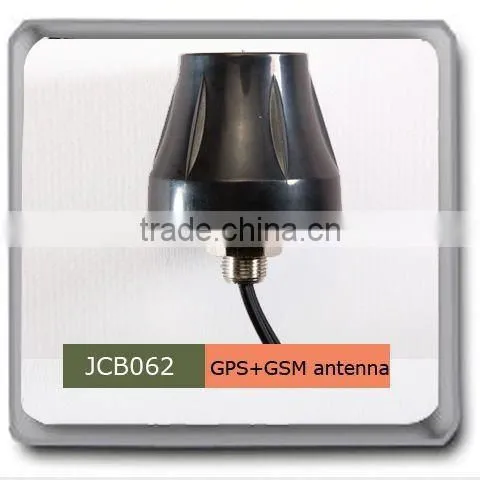

Help Center(manufactory)High Quality Auto GPS/GSM Antenna
Related Products
-
(Manufactory) High Quality 3G External GSM Antenna Ipex ConnectorUS$ 1 - 3MOQ: 100 Pieces -
(manufactory)High Performance GPS/GSM Combo Antenna for CarUS$ 3 - 5MOQ: 1 Piece
-
(Manufactory) High Quality 3G Rubber GSM Quad Band AntennaUS$ 1 - 3MOQ: 1 Piece
-
(Manufactory) High Quality 3G External Patch GSM AntennaUS$ 1 - 3MOQ: 1 Piece
-
(Manufactory)High Quality Long Shape Auto GPS/GSM AntennaUS$ 3 - 5MOQ: 1 Piece
Automative antenna application
• Military
• Car navigation
• AVL/Fleet Management
• Vehicle tracking
• Weather balloon
• Security surveillance
• External antenna for handheld
• Avionics GPS antenna
• External antenna for battery operated handheld receivers
• Router and so on
PARTNERS
Electrical Characteristics
1.1 Dielectric Antenna
No. |
Item |
Specifications |
Post Environmental Tolerance |
1 |
Center Frequency(MHz) |
1575.42 MHz |
±3 MHz |
2 |
Band Width(MHz) |
±5 MHz |
±1 MHz |
3 |
V.S.W.R(in BW) |
1.5:1 |
— |
4 |
Gain(Zenith) |
5 dB |
±0.5 dB |
5 |
Axial Ratio |
3dB(max) |
— |
6 |
Impedance |
50 Ω |
— |
1.2 LNA/Filter
No. |
Item |
Specifications |
Post Environmental Tolerance |
1 |
LNA Gain |
28±2 dB |
±2.5 dB |
2 |
Noise Figure |
1.5 dB |
— |
3 |
Filter Out Band Attenuation |
12dB Min f0+50MHz 16dB Min f0-50MHz |
±1.0 dB |
4 |
DC Voltage |
2.2~5V DC |
|
5 |
DC Current |
5~15 mA |
|
1.3 Mechanical
No. |
Item |
Specification |
1 |
Cable |
RG174 3m/5m or others |
2 |
Connector |
SMA SMB FAKRA MMCX |
3 |
Plastic Housing |
Black |
4 |
Mounting |
Screw
|
1.4 GSM Antenna
No. |
Item |
Specifications |
1 |
Frequency |
824~960MHz/1710~2170MHz |
2 |
V.S.W.R(5m) |
<2.5 |
3 |
Gain(Zenith) |
2dBi |
4 |
Impedance |
50 Ω |
5 |
Polarization |
Linear |
Working environment
Main process
Cable striping Connector Pumping Soldering Testing
Advantage
1. Main products: GPS/GLONASS/COMPASS antenna,4G/3G/2G GSM/GPRS antenna,WIFI antenna as well as combination antennas, Various cable assemblies and connectors are also available.
2. Certification:CE,TUV,FCC,TS16949,ISO9001:2008,Reach certificated,comply to ROHS.
3. Capacity: 30,000 units daily, 25000 square meter factory area,over 200 workers.
4. QC:whole sets of Agilent test equipment to assure quality.
5. Business partners: Amphenol(China,India,Malaysia),ARC wireless solution in USA, Teltonika in Lithuania, Telit in Israel, NEC in Japan and so on.
PAQ
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have automative GPS antenna 100% assembles well in stock?
A: No, all automative GPS Antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your factory?
A: Sure, welcome any time.
