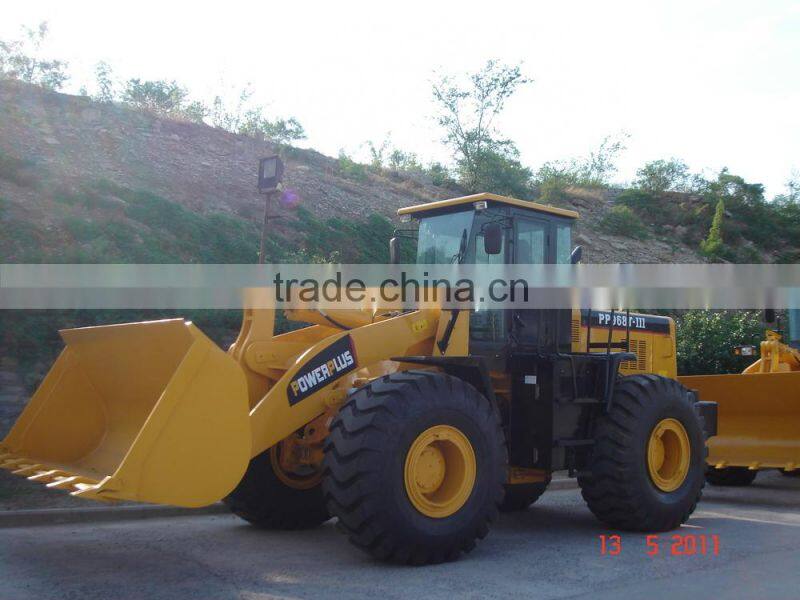

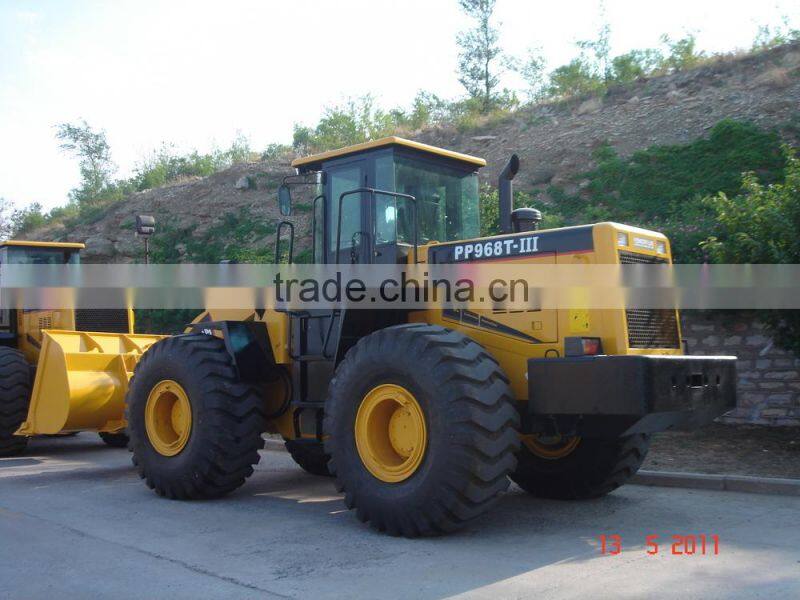

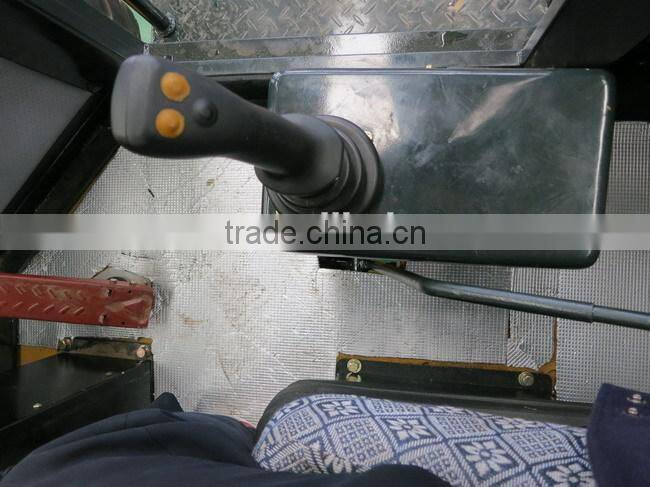

ZL968 Wheel Loader 6 Ton Joystick
main performance parameters of ZL968 loader
Performance |
1 |
rated load |
6000kg |
2 |
overall weight |
18200kg |
|
3 |
rated bucket capacity |
3.5m3 |
|
4 |
maximum tractive force |
158KN |
|
5 |
maximum breakout force |
≥204KN |
|
6 |
maximum grade ability |
30°C |
|
7 |
maximum dump height |
3448mm |
|
8 |
maximum dump reach |
1250mm |
|
9 |
overall dimension (L×W×H) |
8020×3050×3600mm |
|
10 |
minimum turning radius |
7020mm |
|
Engine |
11 |
model |
Weichai Steyr DHD10G0245 |
12 |
type |
lnline water cooling dry cylinder injection |
|
13 |
No. of cylinder-bore/stroke |
6-126×130mm |
|
14 |
rated power |
175kw--2200r/min |
|
15 |
maximum torque |
9500N.m |
|
16 |
min fuel-consume ratio |
≤208g/kw.h |
|
|
Transmission system |
17 |
torque converter |
YJ375 |
18 |
gearbox model WG180 |
Power shift normally engaged straight gear |
|
19 |
gear shift |
4 forward shifts 4 reverse shifts |
|
20 |
maximum speed |
38km/h |
|
Drive axles |
21 |
main reducing spiral
|
bevel gear grade 1reduction |
22 |
decelerating mode |
planetary reduction,grade 1 |
|
23 |
wheel base (mm) |
3200mm |
|
24 |
wheel tread |
2250mm |
|
25 |
minimum ground clearance |
450mm |
|
|
Hydraulic system |
26 |
system working pressure |
18MPa |
27 |
boom lifting time |
6.05±0.25s |
|
28 |
total time |
10.8±0.5s |
|
29 |
fuel tank capacity |
300L |
|
30 |
function of leveling automatically |
yes |
|
|
Brake system |
31 |
service brake |
air over hydraulic disc brake on 4 wheels |
32 |
parking brake |
manual parking brake |
|
|
Tyre |
33 |
type specification |
26.5-25 |
34 |
front tyre pressure |
0.4Mpa |
|
35 |
rear tyre pressure |
0.35Mpa |
