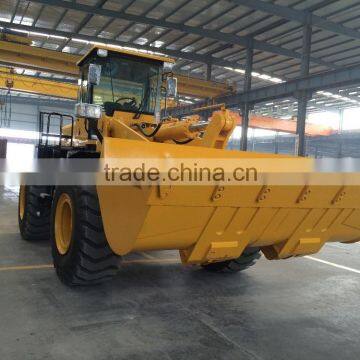

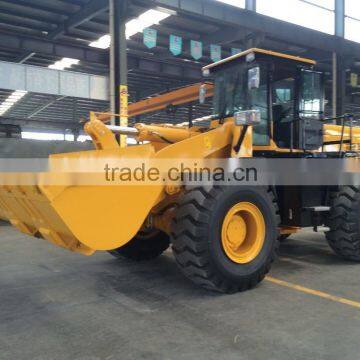

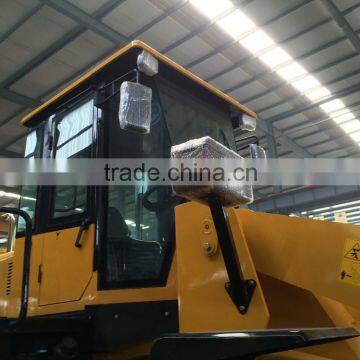

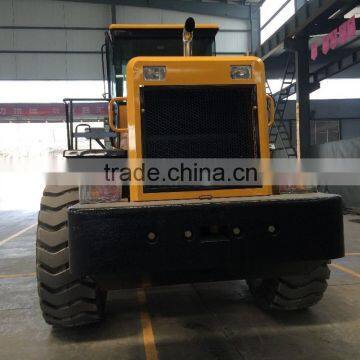

Help Center5 Ton CASER Wheel Loader ZL50G
Related Products
Main Performance Parameters of ZL50 Wheel Loader
Performance |
1 |
rated load |
5000kg |
2 |
overall weight |
17100kg |
|
3 |
rated bucket capacity |
3m3 |
|
4 |
maximum tractive force |
152KN |
|
5 |
maximum breakout force |
≥170KN |
|
6 |
maximum grade ability |
30°C |
|
7 |
maximum dump height |
3150mm |
|
8 |
maximum dump reach |
1250mm |
|
9 |
overall dimension (L×W×H) |
7920×3050×3400mm |
|
10 |
minimum turning radius |
6640mm |
|

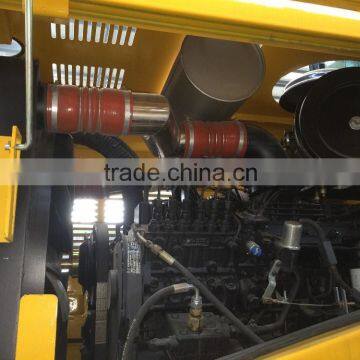

Engine |
11 |
model |
Weichai Steyr WD615G.220 Shangchai SC11CB220G2B1 CUMMINS 6BTAA8.3-C215
|
12 |
type |
lnline water cooling dry cylinder injection |
|
13 |
No. of cylinder-bore/stroke |
6-126×130mm |
|
14 |
rated power |
162kw--2400r/min |
|
15 |
maximum torque |
860N.m |
|
16 |
min fuel-consume ratio |
≤215g/kw.h |
|
|
Transmission system |
17 |
torque converter |
YJ375 |
18 |
gearbox model |
Power shift normally engaged straight gear |
|
19 |
gear shift |
4 forward shift 4reverse shift |
|
20 |
maximum speed |
38km/h |
|
Drive axles |
21 |
main reducing spiral
|
bevel gear grade 1reduction |
22 |
decelerating mode |
planetary reduction,grade 1 |
|
23 |
wheel base (mm) |
3200mm |
|
24 |
wheel tread |
2250mm |
|
25 |
minimum ground clearance |
450mm |
|
|
Hydraulic system |
26 |
system working pressure |
18MPa |
27 |
boom lifting time |
5.95±0.2s |
|
28 |
total time |
10.95±0.5s |
|
29 |
fuel tank capacity |
300L |
|
30 |
function of leveling automatically |
yes |
|
|
Brake system |
31 |
service brake |
air over hydraulic disc brake on 4 wheels |
32 |
parking brake |
manual parking brake |
|
|
Tyre |
33 |
type specification |
23.5-25 |
34 |
front tyre pressure |
0.4Mpa |
|
35 |
rear tyre pressure |
0.35Mpa |
