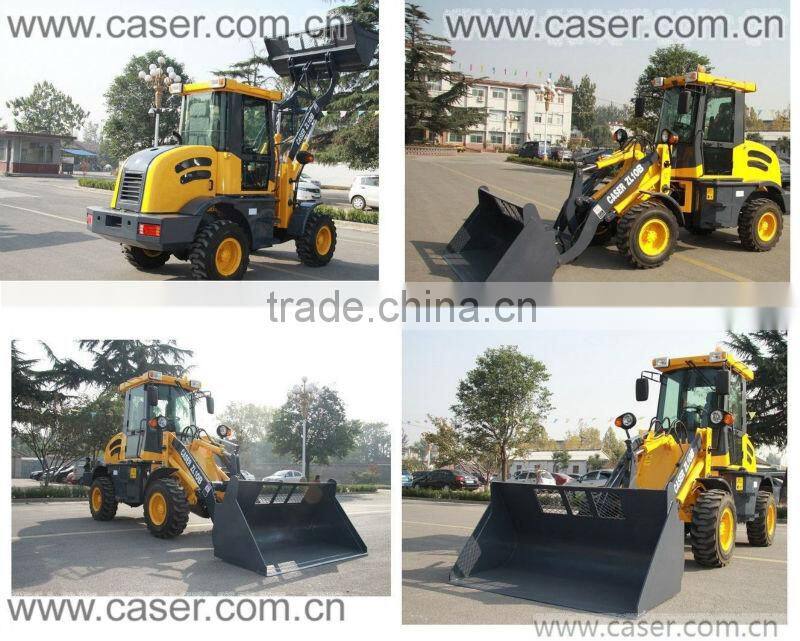

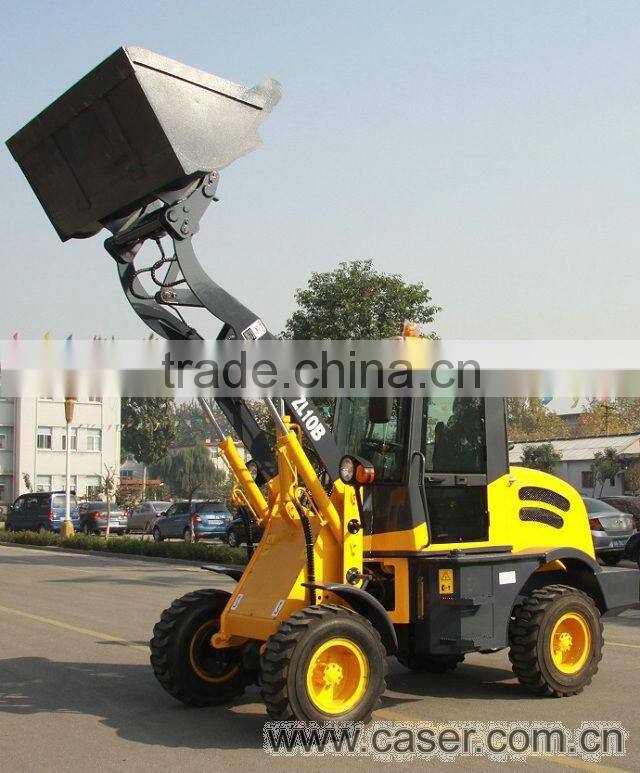

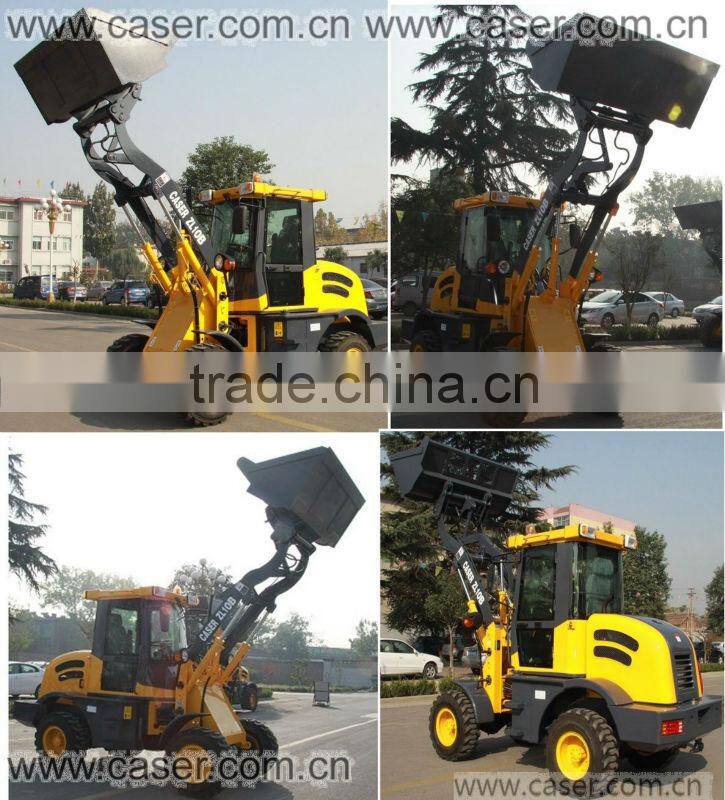

Sholve loader 1000KG
1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special Isuzu drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. This machine uses mechanical gear box and hydraulic steering operation, with simple structure, convenient operation, good performance and reliable quality
5. Widely applying to the construcction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
Model |
ZL10B WHEEL LOADER |
||||||
Engine |
Model: |
Changchai ZN485Q |
|||||
Engine type: |
In-line arrangement, water-cooled, four-cylinder diesel Engine |
||||||
Rated Power: |
26KW (27.20HP) |
||||||
Rated Speed: |
2200 R/MIN (RPM) |
||||||
Steering System |
Cycloid full hydraulic steering system: BZZ-125 |
||||||
System Pressure: 10MPa | |||||||
Steering Cylinder: Φ76x Φ63x180 | |||||||
Bucket |
Bucket Capacity: |
0.5 m3 |
|||||
Bucket width: |
1400mm |
||||||
Bucket type: |
Heavy-duty bolt on teeth |
||||||
Max. Breakout Force: |
32KN |
||||||
Rated Load: |
1000kg |
||||||
Operating Weight: |
2880kg |
||||||
Overall Dimensions |
Overall Length: |
(Bucket on ground position): 4900mm |
|||||
Overall Height: |
|
||||||
Ground to Cab Top: |
2520mm |
||||||
Ground to exhaust pipe: |
It is below from the top of cabin |
||||||
Dumping Height: |
2545mm |
||||||
Overall Width: |
1685mm |
||||||
|
Operating Specifications
|
Drive Means: |
Four-wheel drive |
|||||
Min Turning Radius: |
4200mm |
||||||
Driving System: |
mechanical |
||||||
Dumping Height: |
2545mm |
||||||
Dumping Reach at max height: |
Mm |
||||||
Min the ground distance: |
240mm |
||||||
Time of raise: |
3.05sec. |
||||||
Hydraulic cycle time: |
9 second. |
||||||
Brake System |
Service Brake: |
Four Wheel Hydraulic spread-shoed brake |
|||||
Parking Brake: |
Hand operated |
||||||
Tyre |
Model: |
8.25-16 |
|||||
Width: |
20cm |
||||||
Diameter: |
80cm |
||||||
Wheelbase |
2040mm |
||||||
Track |
1320mm |
||||||
WITH DIFFERENT ATTACHMENTS AVALIABLE, PLEASE ASK US FOR MORE INFORMATION.
