CASER ZL10F With CE

Name: CASER ZL10F With CE
Brand: CASER
SKU: 116431487
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

CASER

Model Number:

ZL10F

Qingzhou Caser Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name CASER

Model Number ZL10F

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 4750*1720*2380

Rated Load 1000KG

Certification CE

Warranty 1 YEAR

Specifications

CE CERTIFIED;
1 TON LOADING CAPACITY
OEM SERVICE OFFERED

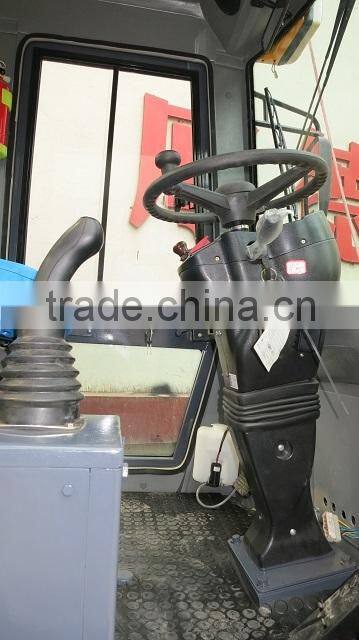

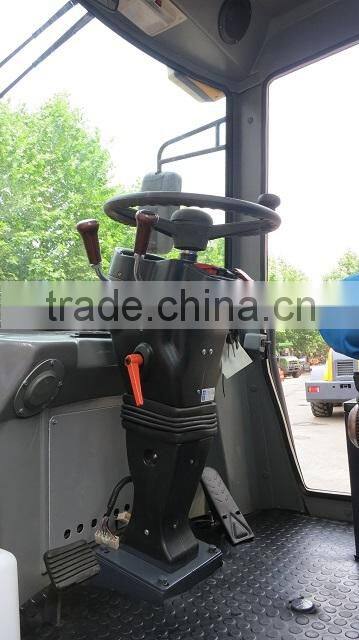

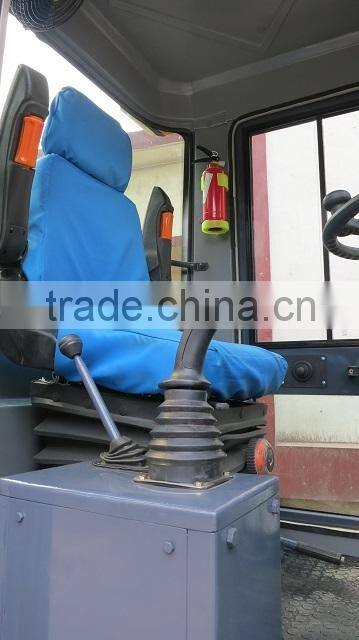

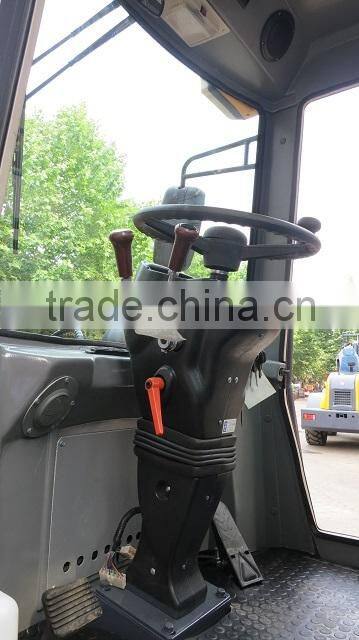

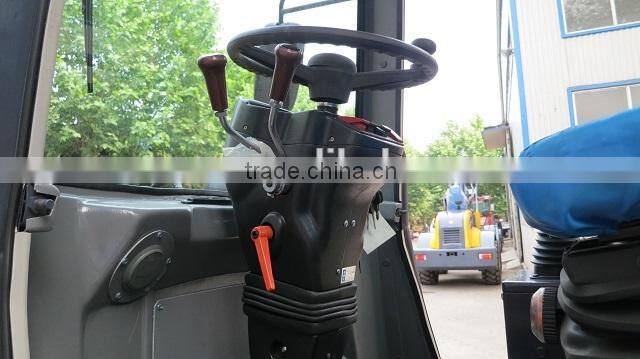

COMFORTABLE SEAT, ADJUSTABLE STEERING

Model	ZL10F WHEEL LOADER
Engine	Model:			Changchai 4L68
	Engine type:			In-line arrangement, water-cooled, four-cylinder diesel Engine
	Rated Power:			37KW (50.32HP)
	Rated Speed:			2200 R/MIN (RPM)
	Fuel consumption			Rated in standard working condition: 230g/kw.h
Steering System	Cycloid full hydraulic steering system: BZZ-125
	System Pressure: 10MPa
	Steering Cylinder: Φ76x Φ63x180
Bucket	Bucket Capacity:					0.5 m3
	Bucket width:					1400mm
	Bucket type:					Heavy-duty bolt on teeth
	Max. Breakout Force:					32KN
	Rated Load:					1000kg
	Operating Weight:					2850kg
Overall Dimensions	Overall Length:						(Bucket on ground position): 4750mm
	Overall Height:						2380mm
	Ground to exhaust pipe:						It is below from the top of cabin
	Dumping Height:						2200mm
	Overall Width:						1720mm
Operating Specifications	Drive Means:							Four-wheel drive
	Min Turning Radius:							3890mm
	Driving System:							Static Hydraulic Driving
	Dumping Height:							2200mm
	Dumping Reach at max height:							mm
	Min the ground distance:							230mm
	Time of raise:							4 sec.
	Hydraulic cycle time:							9 second.
Brake System	Service Brake:				Four Wheel Hydraulic spread-shoed brake
	Parking Brake:				Hand operated
Tyre	Model:		8.25-16
	Width:		20cm
	Diameter:		80cm
	WIDER TYRE OPTION(With Extra Charge)
	Model	12-16
	Width	12inch
	Diameter	16inch
	Price	265 USD Extra
		Tubeless wider tyre needs USD691.00 more
Wheelbase	2040mm
Track	1320mm
