Specifications
steel wire ropematerial:steel
wire rope, galvanized,host, marine,winch rope
Dia:18to48mm
shape:round
steel wire rope
1. Raw material: quality carbon steel, 60#, 65#, 70#, 72A, 82B
2. Standard: ISO, DIN, ASTM, JIS, etc.
3. Construction: 1X7, 1X19, 6X7, 7X7, 6X19, 7X19, 6X37, 7X37, 6X25, etc.
4. Range of products: High carbon spring steel wire, (Galvanized, Ungalvanized, coated PVC /PE) steel wire rope, hot dip galvanized steel wire rope, etc.
5. Packing: plastic spool, wood reel, coils, bag, etc.
6. Minimum order quantity: 10 tons
7. Delivery time: 30 days
8. Production Capacity: 9000tons per year
Round strand rope, 6×7+Fiber Core (FC)
Rope Φ (mm) |
Wire number |
Weight (kg/100m) |
MBL(KN) |
2 |
42 |
1.43 |
2.35 |
3 |
42 |
3.22 |
5.29 |
4 |
42 |
5.72 |
9.41 |
5 |
42 |
8.94 |
14.70 |
6 |
42 |
12.90 |
21.10 |
Round strand rope, 6×36+Fiber Core (FC)
Rope Φ (mm) |
Wire number |
Weight (kg/100m) |
MBL(KN) |
16 |
216 |
97.3 |
149.0 |
18 |
216 |
123.0 |
189.0 |
20 |
216 |
152.0 |
234.0 |
22 |
216 |
184.0 |
282.0 |
24 |
216 |
219.0 |
336.0 |

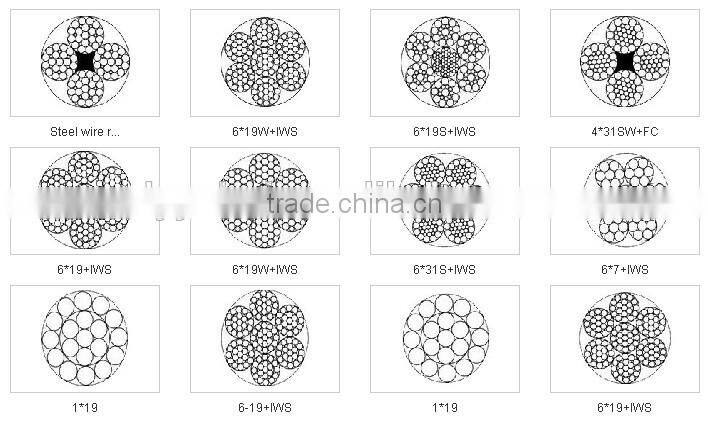

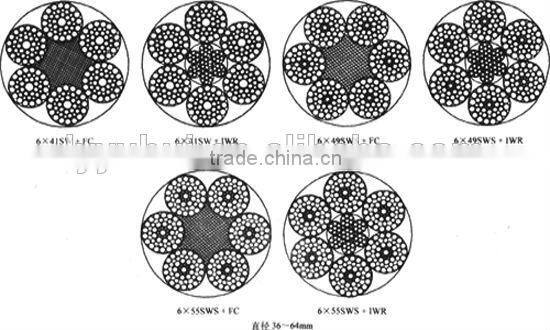

Steel Wire Structures
Steel Wire Structures
Ungalvanized Steel wire rope
Ungalvanized Steel wire rope
Galvanized Steel wire rope
Galvanized Steel wire rope
Galvanized Steel wire rope

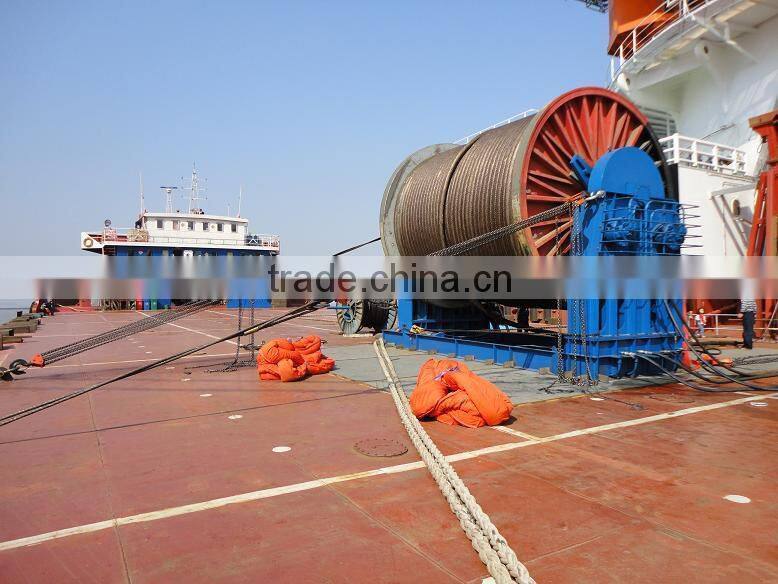

application
We warmly welcome clients from all over the world to cooperate with us and develop worldwide market together. We can certainly ensure high quality and competitive price.
Don't hesitate to contact us !
Stephen Wang-Sales Manager
Tel:0539-8012856
FAX:0539-8012106
