small turnbucklesSpecialty manufacture
high quality
small turnbuckles
basic information:
1.Standard length is 27.5m per piece,we also can produce according to your requirement .
2.Material: alloy steel, generally including CM390, SM490, CM690, or aoording to your requirement
3.Grade :U2&U3
4.Surface treatment: self color, black painted, zinc galvanized, hot dip galvanized or according to customer's requirement.
5.The tension beak load conforms to National Standard.
6. Studless anchor chains. Specification: 12.5-70mm, mainly adapt to vessels, fish net tenesmus, mine, municipal engineer, new established garden decoration

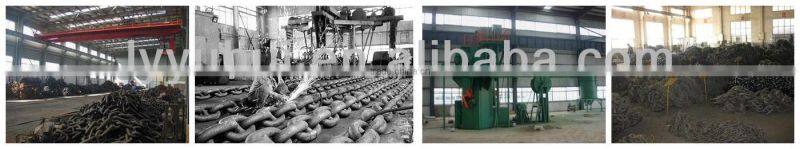

7. Production process: (1) material cutting (2) heating (3) curving (4) welding (5) thorn cutting (6) pressing (7) heating treatment (8) Blind bolts (9) polishing (10) painting

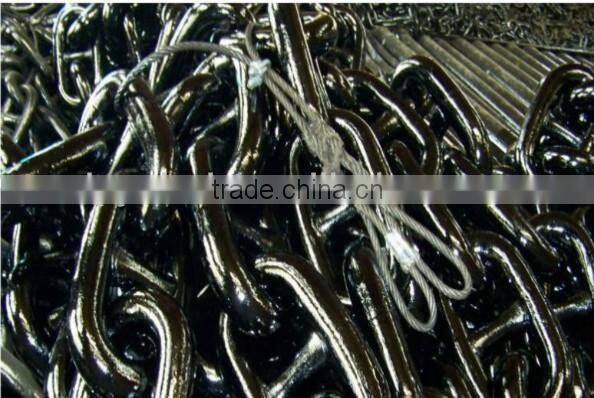

8 All chain is tar coated.

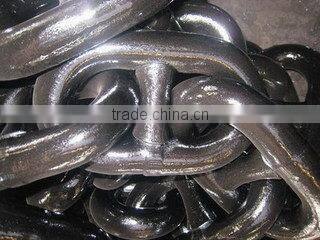

The high strength of Studlink chain makes it the premium chain for marine purposes and anchors. Designed with a stud across the middle of its links, the extra rigidity of Studlink has made it extremely popular with anchor suppliers around the world.
Technical information:
Technical parameter:
| Dia. | Outside Length | Outside Width | U2 | U3 | Weight | ||
| (mm) | (mm) | (mm) | Proof Load | Breaking Load | Proof Load | Breaking Load | (KG/27.5M) |
| (KN) | (KN) | (KN) | (KN) | ||||
| 16 | 96 | 56 | 66.2 | 132.3 | 92.42 | 184.83 | 138.14 |
| 17.5 | 105 | 61.25 | 78.89 | 157.78 | 110.55 | 221.1 | 165.8 |
| 19 | 114 | 66.5 | 93.6 | 187.2 | 130.32 | 260.64 | 194.9 |
| 20.5 | 123 | 71.8 | 108.64 | 217.27 | 151.7 | 303.42 | 227.13 |
| 22 | 132 | 77 | 125.4 | 250.9 | 174.4 | 349.4 | 262.29 |
| 24 | 144 | 84 | 149.9 | 298.9 | 207.9 | 415.8 | 312.26 |
| 26 | 156 | 91 | 175.4 | 350.8 | 244 | 488 | 366.76 |
| 28 | 168 | 98 | 203.8 | 406.7 | 283 | 566 | 423.36 |
| 30 | 180 | 105 | 234.2 | 467.5 | 324.9 | 649.8 | 486.85 |
| 32 | 192 | 112 | 265.6 | 531.2 | 369.6 | 739.3 | 554.7 |
| 34 | 204 | 119 | 299.9 | 599.8 | 417.3 | 834.6 | 628.08 |
| 36 | 216 | 126 | 336.1 | 672.3 | 467.8 | 935.7 | 701.54 |
| 38 | 228 | 133 | 374.4 | 748.7 | 521.3 | 1042.5 | 781.92 |
| 40 | 240 | 140 | 414.5 | 829.1 | 577.6 | 1155.2 | 861.17 |
| 42 | 252 | 147 | 457.7 | 915.3 | 636.8 | 1273.6 | 950.94 |
| 44 | 264 | 154 | 502.7 | 999.6 | 698.9 | 1398 | 1053 |
| 46 | 276 | 161 | 548.8 | 1097.6 | 763.9 | 1527.8 | 1142 |
| 48 | 288 | 168 | 597.8 | 1195.6 | 831.7 | 1663.5 | 1245 |
| 50 | 300 | 175 | 648.8 | 1293.6 | 902.5 | 1805 | 1348.5 |

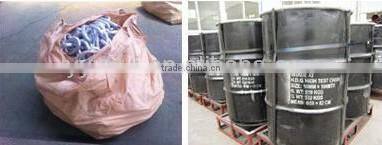

in wooden box or in drum ton bag, metal bucket or nude packing or according to request
1 Design special sizes if the drawings or pictures are supplied.
2 OEM and sample order is accepted.

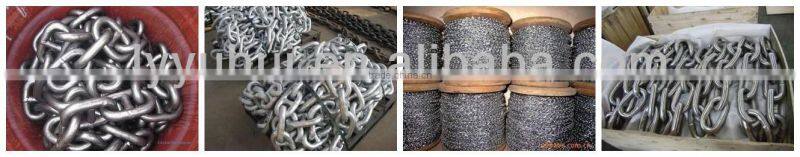

3 accessory:can be supplied on reels,hook,cut to length or make different as your specifications
With perfect quality and competitive price, if you are interested in our items,kindly let us know and we shall be very pleased to give our quotation immediately.
